ADPL40505A

RECOMMENDED FOR NEW DESIGNS

5.5V, 500mA LDO Linear Regulator with Low-Power Mode

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • 1.7V to 5.5V Input Supply Range
  • 0.8V to 5.0V Output Voltage Range
  • 500mA Maximum Output Current
  • 120mV Maximum Dropout at 500mA Load (3.6VIN)
  • 20μA No-Load Supply Current in Low-Power Mode
  • 350μA Supply Current in Normal Mode
  • <1μA Shutdown Supply Current
  • 45μVRMS Output Noise, 10Hz to 100kHz
  • 60dB PSRR at 10kHz, 250mA Load Current, and 300mV Input and Output Voltage Separation
  • ±2% DC Accuracy Over Load, Line, and Temperature Variations
  • Active Discharge of 800Ω at OUT
  • Stable with 2μF (Minimum Effective) Output Capacitance
  • Programmable Soft-Start Rate
  • Overcurrent and Overtemperature Protection
  • Reverse-Current Protection
  • Power-OK Output
  • 2mm x 2mm, 8-Pin TDFN Package
  • -40°C to +125°C Operating Temperature

The ADPL40505A is a 5.5V, P-Channel Metal-Oxide Semiconductor (PMOS) Low Drop-Out (LDO) linear regulator that delivers up to 500mA load current. The ADPL40505A features a low-power mode of operation that consumes very low quiescent current from the supply.

The regulator is fully protected from damage by internal circuitry that provides programmable inrush current limiting, output overcurrent limiting, reverse current limiting, and thermal overload protection. The ADPL40505A has an 800Ω active discharge feature to quickly discharge output capacitors.

The ADPL40505A provides enhanced flexibility with an adjustable output voltage in the range of 0.8V to 5.0V by using two external feedback resistors.

The ADPL40505A is available in an 8-pin, 2mm x 2mm Thin Dual Flat No-Lead (TDFN) package.
ADPL40505A
5.5V, 500mA LDO Linear Regulator with Low-Power Mode

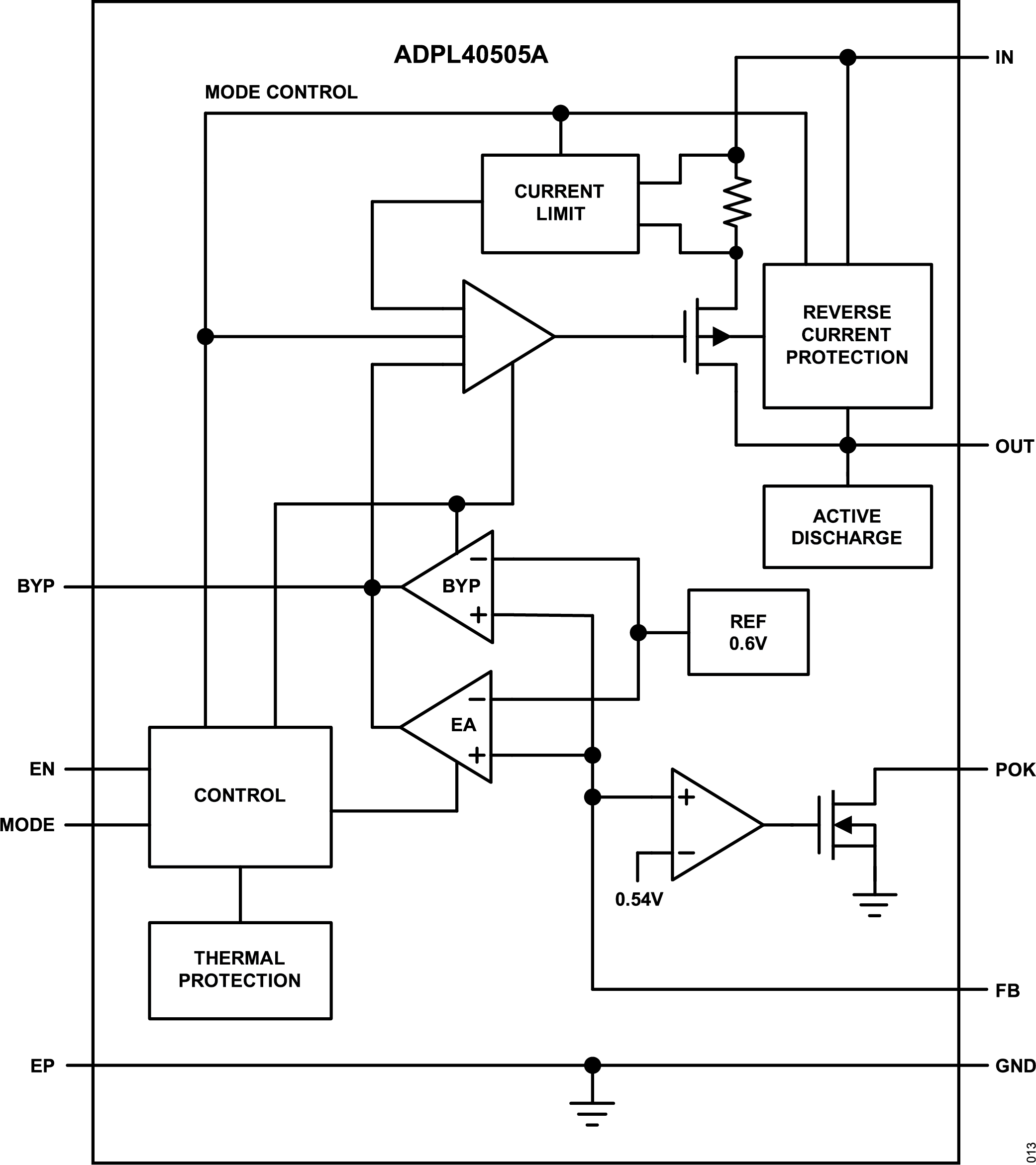

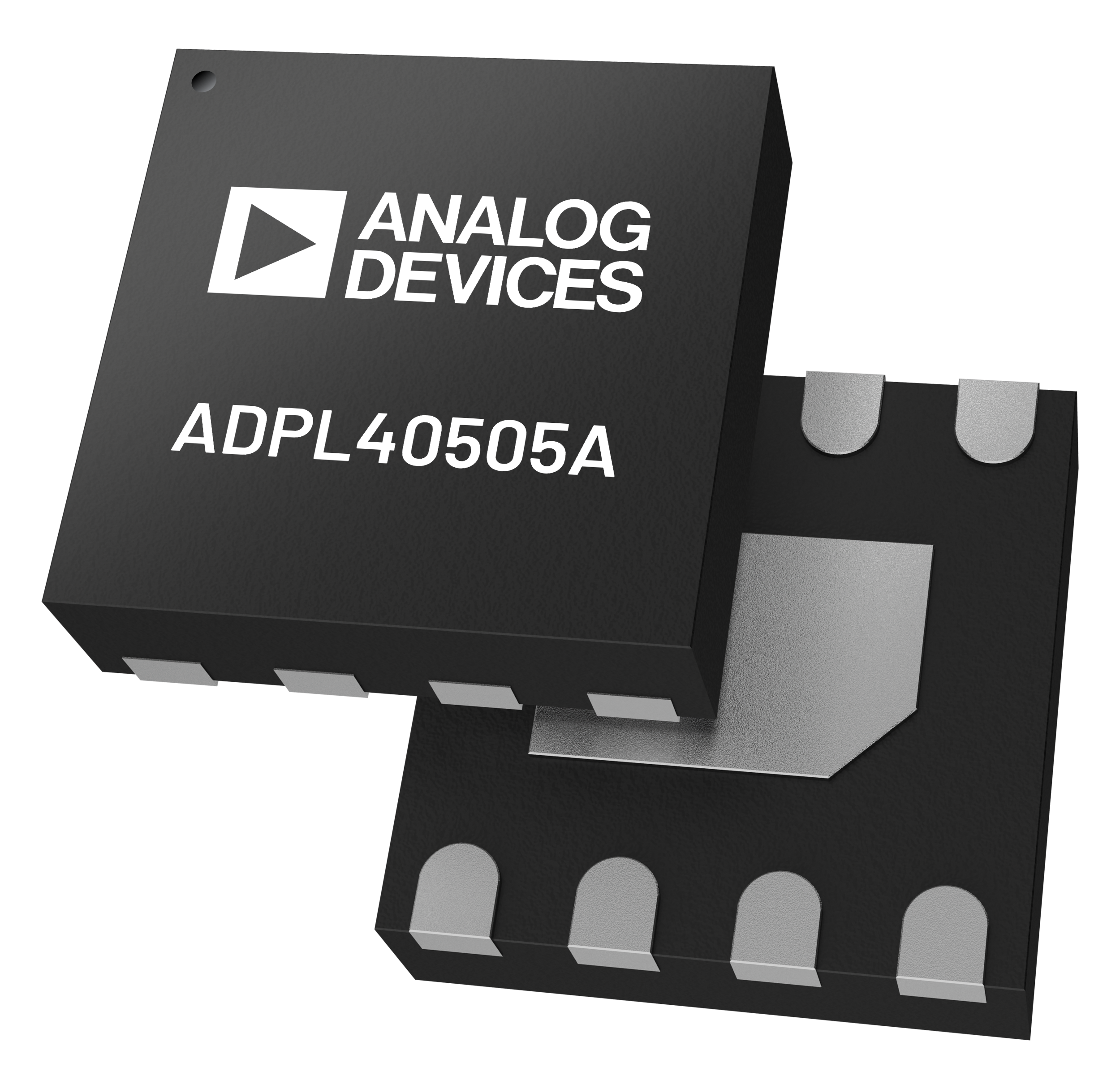

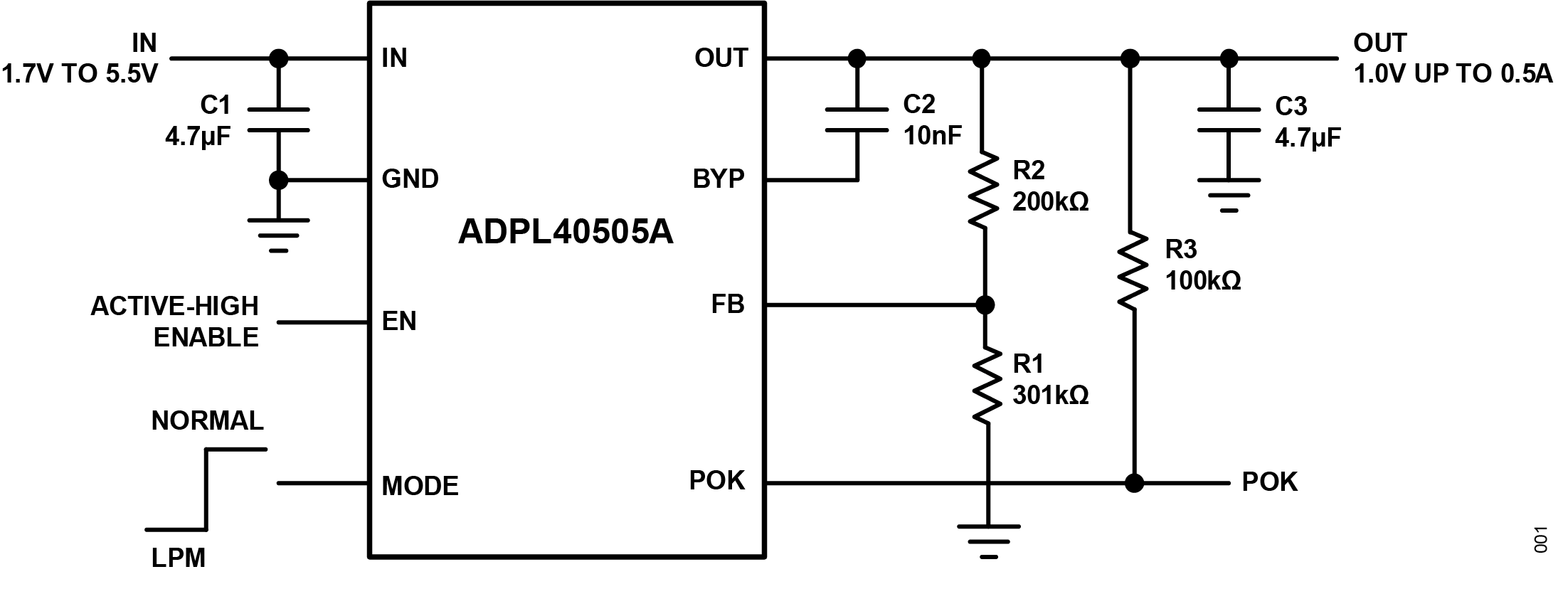

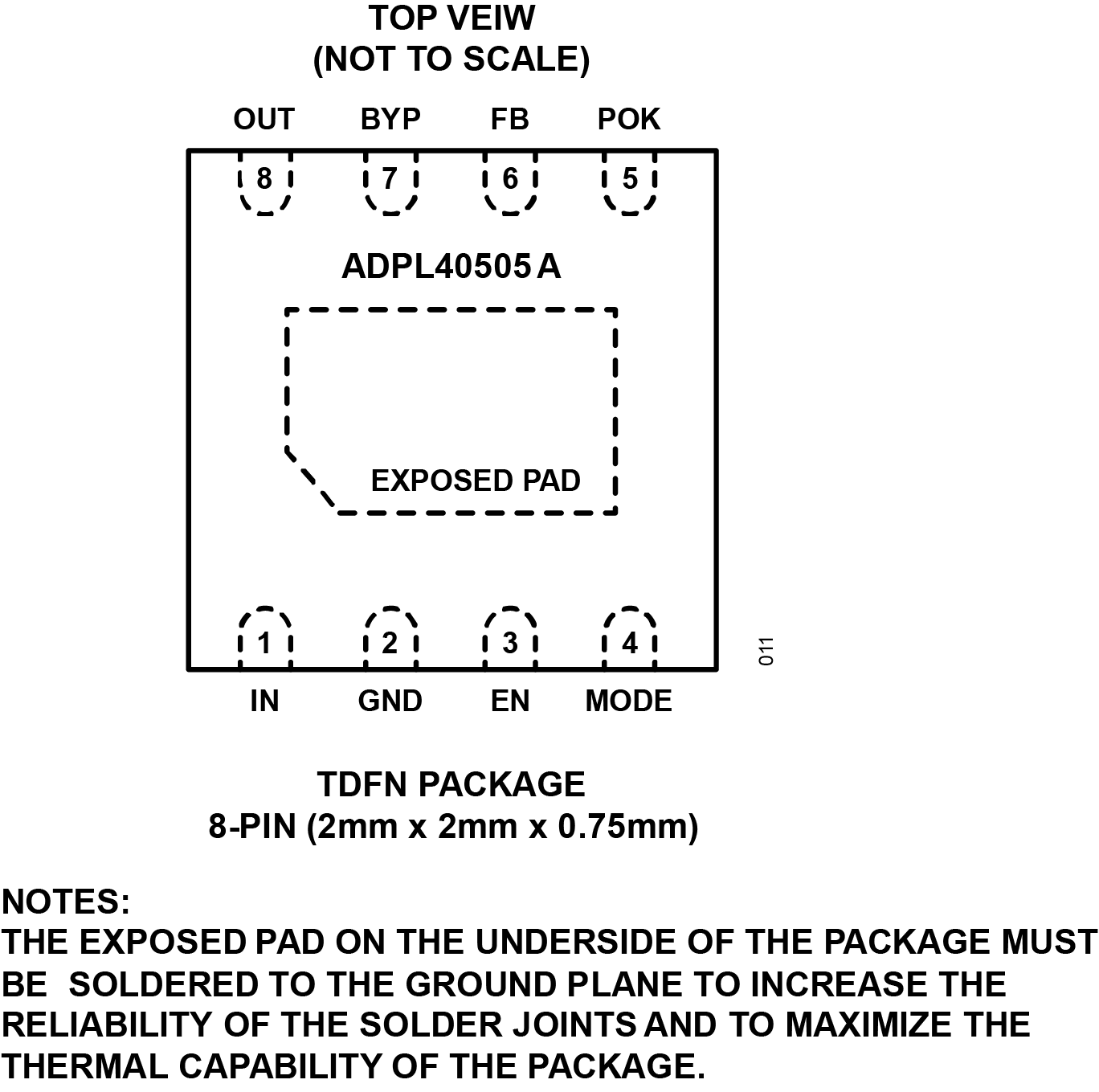

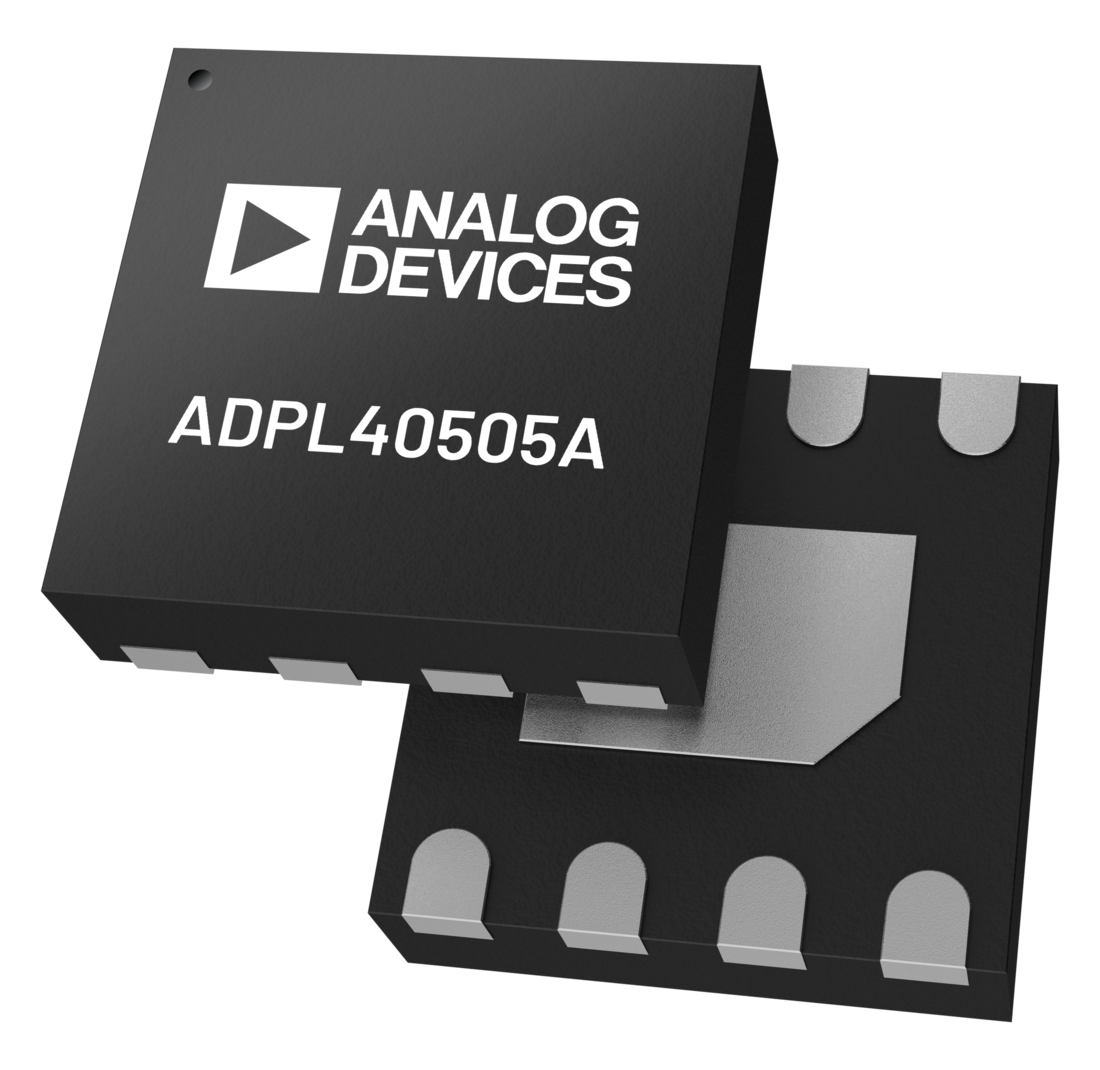

ADPL40505A Application Diagram ADPL40505A Simplified Block Diagram ADPL40505A Pin Configuration ADPL40505A Chip Illustration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
ADPL40505AEVKIT

Evaluates: ADPL40505A

Buy Now View Details

Features and Benefits

  • Evaluates the ADPL40505A in an 8-pin (2mm x 2mm)Thin Dual Flat No-Lead Package (TDFN) Package
  • 1.7V to 5.5V Input Supply Range
  • 0.8V to 5.0V External Feedback Resistor Configuration
  • Up to 500mA Output Current
  • Jumper-Selectable Operating Modes
  • Proven 2-Layer 1oz Copper Printed Circuit Board(PCB) Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested

Product Details

The ADPL40505A evaluation kit (EV kit) evaluates the ADPL40505A. The ADPL40505A is a P-Channel Metal-Oxide Semiconductor (PMOS) Low Drop-Out (LDO) linear regulator. The ADPL40505A EV kit operates over an input range of 1.7V to 5.5V, provides an output-voltage range from 0.8V to 5.0V, and can deliver up to 500mA of current. The EV kit comes with the ADPL40505AATA+ installed.
ADPL40505AEVKIT
Evaluates: ADPL40505A

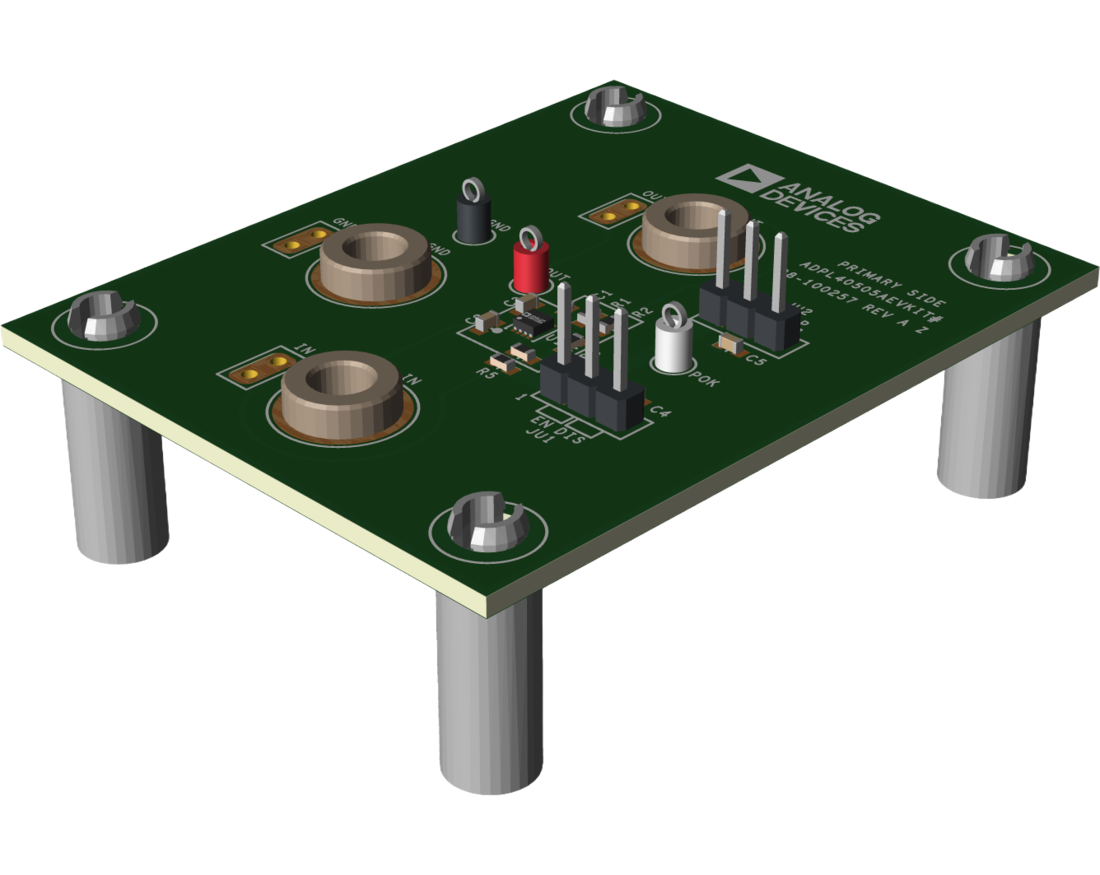

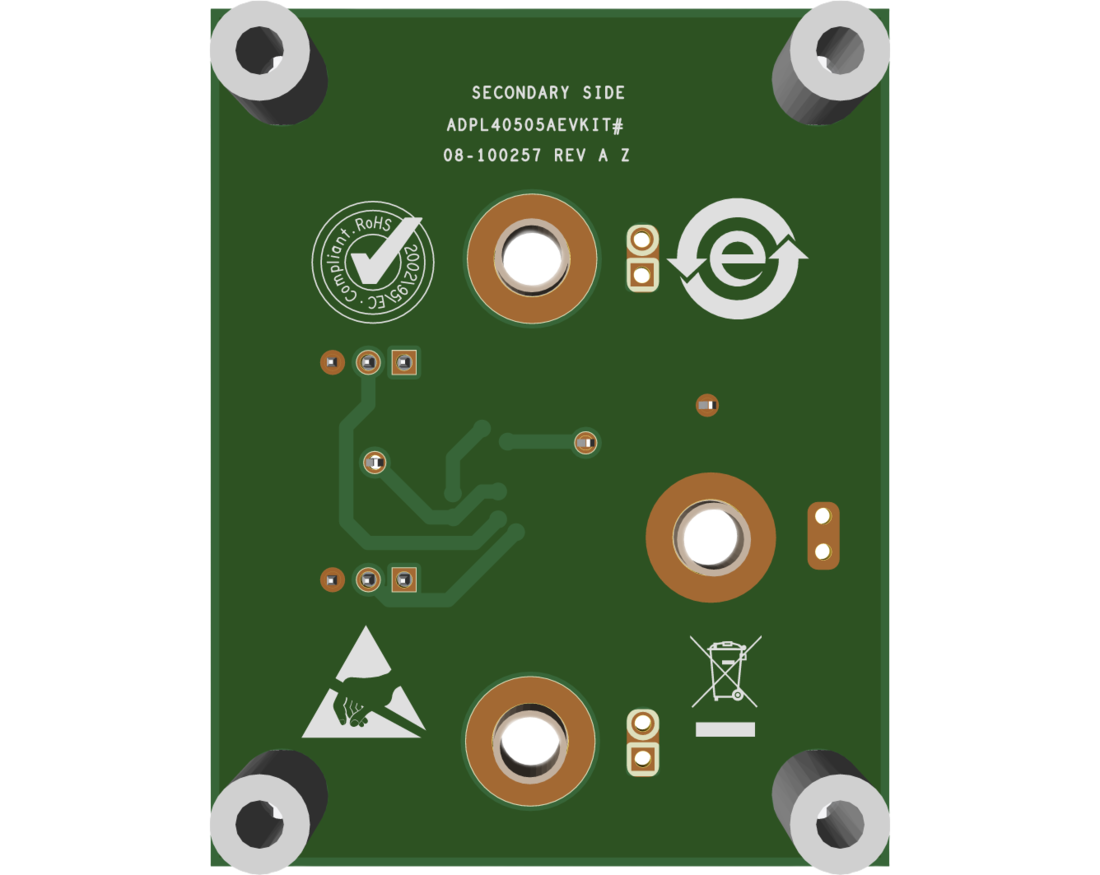

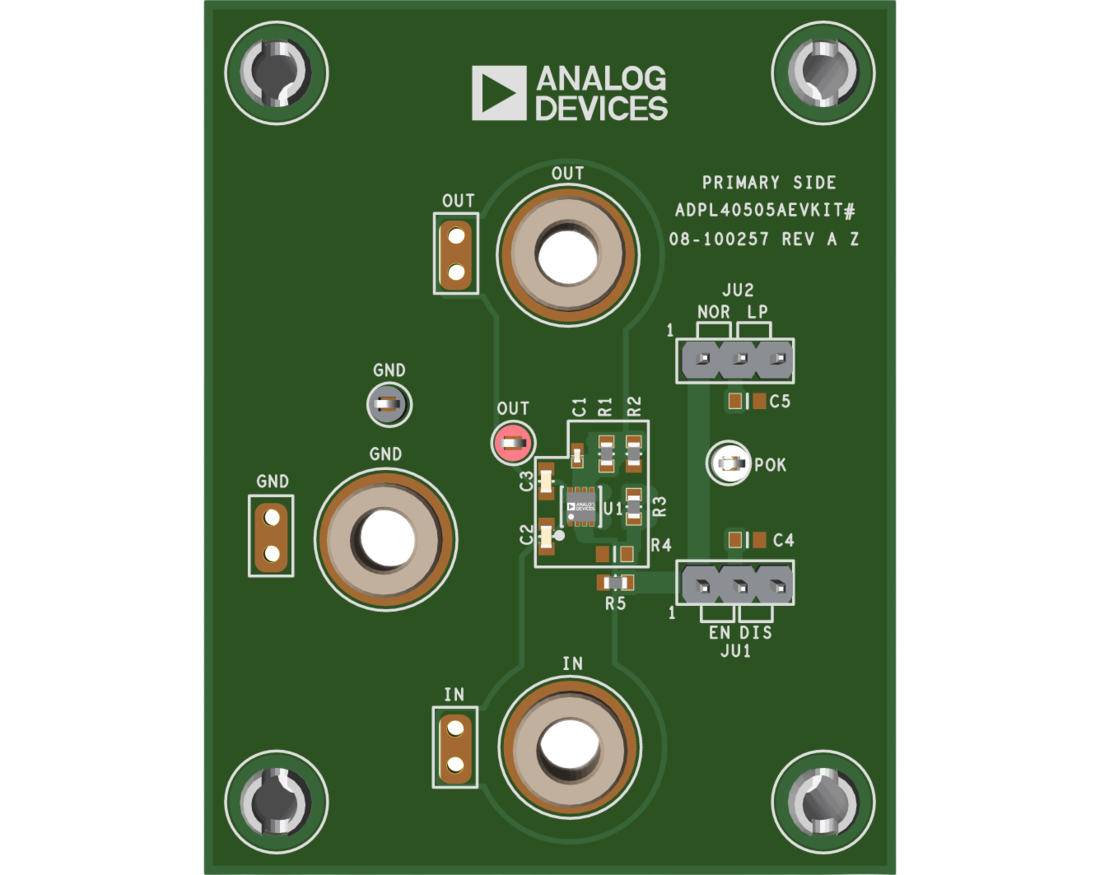

ADPL40505AEVKIT Board Photo Angle View ADPL40505AEVKIT Board Photo Top View ADPL40505AEVKIT Board Photo Bottom View
