Overview

Features and Benefits

  • Evaluates the ADPL40505A in an 8-pin (2mm x 2mm)Thin Dual Flat No-Lead Package (TDFN) Package
  • 1.7V to 5.5V Input Supply Range
  • 0.8V to 5.0V External Feedback Resistor Configuration
  • Up to 500mA Output Current
  • Jumper-Selectable Operating Modes
  • Proven 2-Layer 1oz Copper Printed Circuit Board(PCB) Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested

Product Details

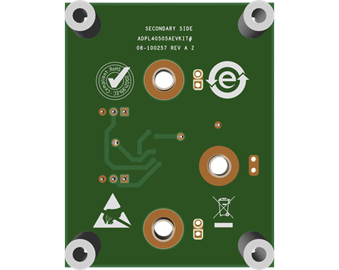

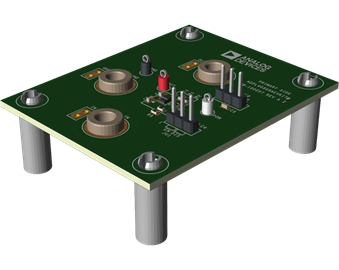

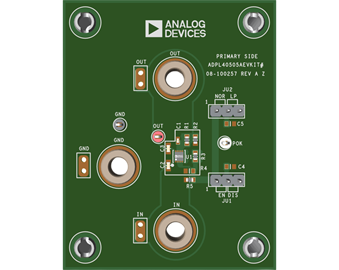

The ADPL40505A evaluation kit (EV kit) evaluates the ADPL40505A. The ADPL40505A is a P-Channel Metal-Oxide Semiconductor (PMOS) Low Drop-Out (LDO) linear regulator. The ADPL40505A EV kit operates over an input range of 1.7V to 5.5V, provides an output-voltage range from 0.8V to 5.0V, and can deliver up to 500mA of current. The EV kit comes with the ADPL40505AATA+ installed.
