ADPA1106

46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $352.17
Features
  • Frequency range: 2.7 GHz to 3.5 GHz
  • POUT: 46 dBm typical with PIN = 21 dBm at 2.7 GHz to 3.1 GHz
  • Power gain: 25 dB typical with PIN = 21 dBm at 2.7 GHz to 3.1 GHz
  • Small signal gain: 34.5 dB typical at 2.7 GHz to 3.1 GHz
  • PAE: 56% typical with PIN = 21 dBm at 2.7 GHz to 3.1 GHz
  • Supply voltage: VDD = 50 V at IDQ = 300 mA with 10% duty cycle

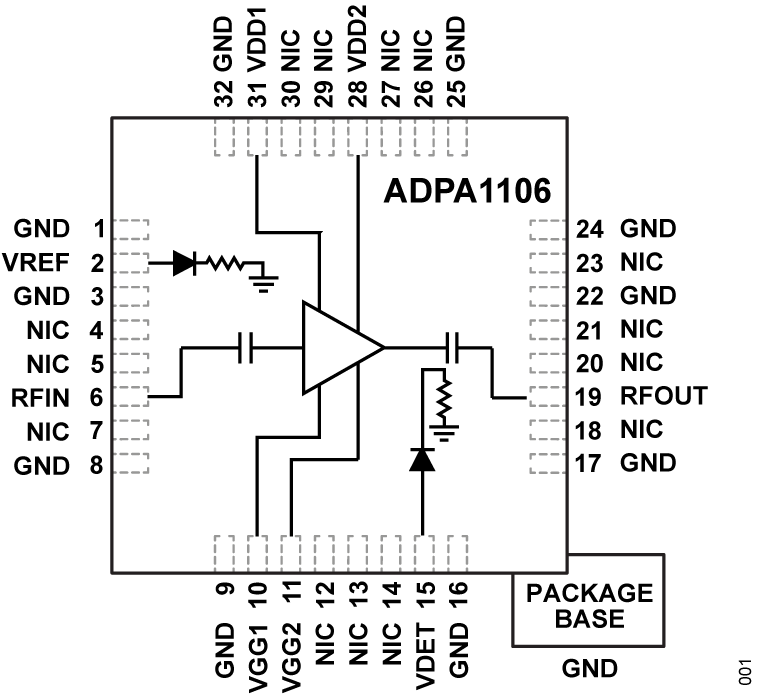

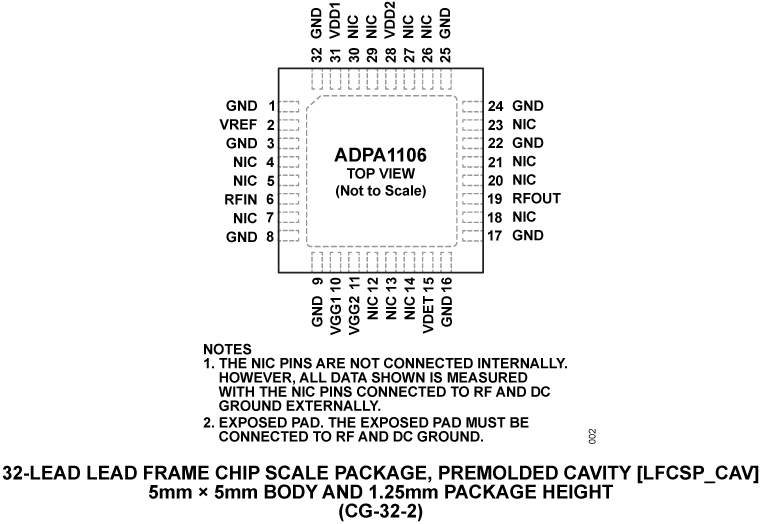

  • 32-lead, 5 mm × 5 mm LFCSP_CAV package
Additional Details
show more Icon

The ADPA1106 is a gallium nitride (GaN), broadband power amplifier that delivers 46 dBm (40 W) with 56% typical power added efficiency (PAE) across a bandwidth of 2.7 GHz to 3.1 GHz. The ADPA1106 has a gain flatness of ±0.15 dB across the 2.7 GHz to 3.1 GHz frequency range.

The ADPA1106 is ideal for pulsed applications such as marine, weather, and military radar.

The ADPA1106 comes in a 32-lead, lead frame chip scale package, premolded cavity (LFCSP_CAV) and is specified for operation from −40°C to +85°C.

APPLICATIONS

  • Weather radar
  • Marine radar
  • Military radar
  • Part Models 2
    1ku List Price Starting From $352.17

    close icon
    Documentation

    Documentation

    Video

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    ADPA1106ACGZN
    • HTML
    • HTML
    ADPA1106ACGZN-R7
    • HTML
    • HTML
    Software & Part Ecosystem

    Software & Part Ecosystem

    Evaluation Kit

    Evaluation Kits 2

    reference details image

    EVAL-ADPA1106

    Evaluating the ADPA1106 46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

    zoom

    EVAL-ADPA1106

    Evaluating the ADPA1106 46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

    Evaluating the ADPA1106 46 dBm (40 W), 2.7 GHz to 3.5 GHz, GaN Power Amplifier

    Features and Benefits

    • 2-layer Rogers 4350B evaluation board with heat spreader
    • End launch SMA jack RF connectors
    • Through calibration path
    • Drain or gate pulsing capability

    Product Detail

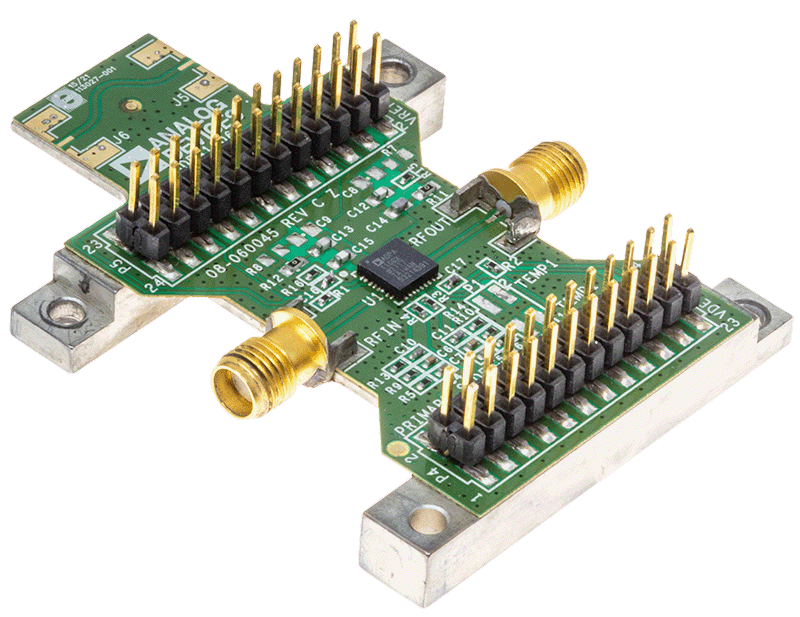

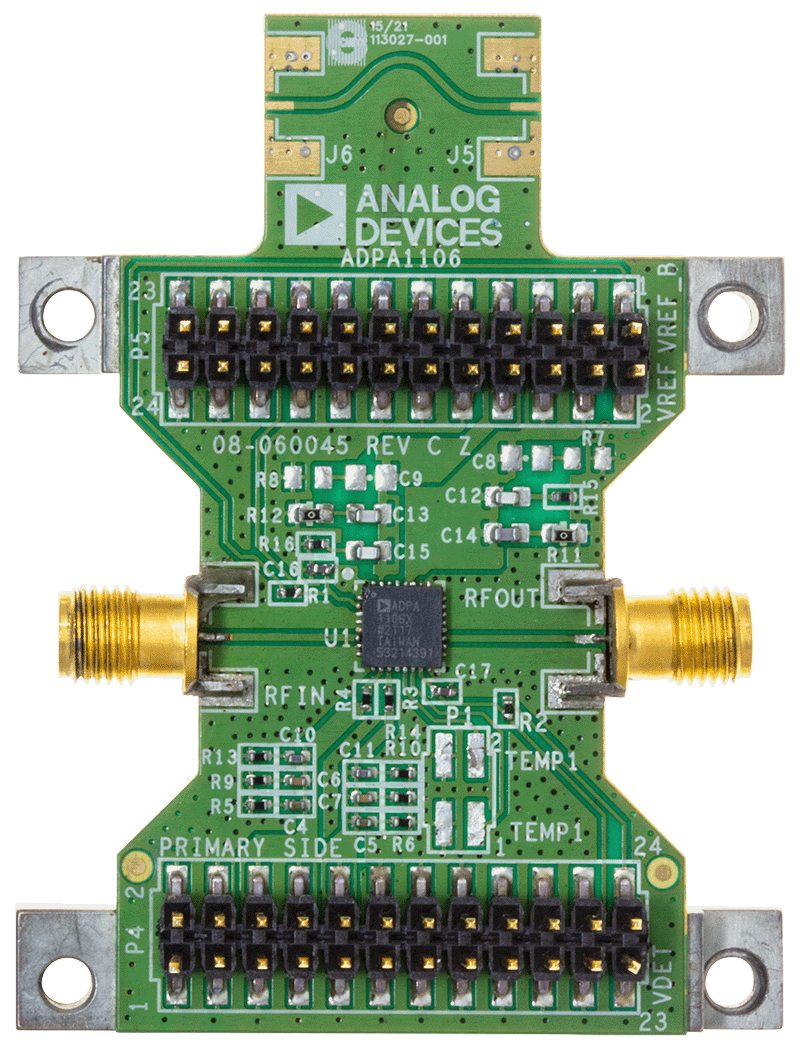

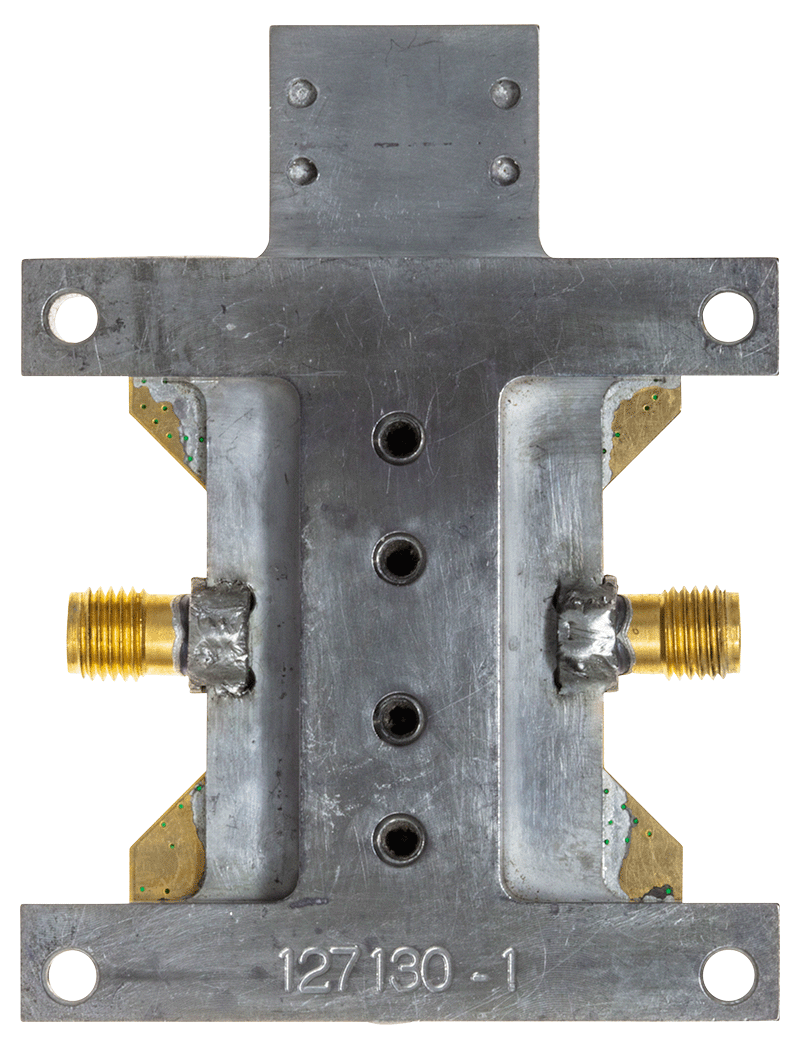

    The ADPA1106-EVALZ consists of a 2-layer printed circuit board (PCB) fabricated from a 10 mil thick, Rogers 4350B copper clad mounted to an aluminum heat spreader. The heat spreader assists in providing thermal relief to the device as well as mechanical support to the PCB. Mounting holes on the heat spreader allow the spreader to be attached to a heat sink. Alternatively, the spreader can be clamped to a hot and cold plate. The RFIN and RFOUT ports on the ADPA1106-EVALZ are populated by Subminiature Version A (SMA) female coaxial connectors, and the respective RF traces have a 50 Ω characteristic impedance. The ADPA1106-EVALZ is populated with components suitable for use over the entire operating temperature range of the device. To calibrate board trace losses, a through calibration path is provided between the J6 and J5 connectors. J6 and J5 must be populated with SMA RF connectors to use the through calibration path.

    Ground, power, gate control, and the detector output voltage are provided through the two 24-pin headers (P4 and P5) on the ADPA1106-EVALZ. The pinouts for these two headers are shown in Table 1 of the user guide.

    RF traces on the ADPA1106-EVALZ are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed paddle connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground pad to provide adequate electrical conduction and thermal conduction to the heat spreader.

    The ADPA1106-EVALZ ships with a drain pulser board that can be plugged into the ADPA1106-EVALZ headers and configured to control the biasing of the ADPA1106 by providing a negative gate voltage and a control signal that connects and disconnects the drain voltage to the ADPA1106-EVALZ. The ADPA1106-EVALZ can also operate alone in gate pulsed mode where a negative pulse is applied to the VGG1 and VGG2 pins of the ADPA1106.

    For full details on the ADPA1106, see the ADPA1106 data sheet, which must be consulted in conjunction with the user guide when using the ADPA1106-EVALZ.

    reference details image

    ADPULSERPLUSEBZ

    Pulser Plus Reference Design for GaN PA Biasing and Sequencing

    zoom

    ADPULSERPLUSEBZ

    Pulser Plus Reference Design for GaN PA Biasing and Sequencing

    Pulser Plus Reference Design for GaN PA Biasing and Sequencing

    Features and Benefits

    • Complete Bias Control and Sequencing Solution for Pulsed GaN Radar Power Amplifiers
    • Pin Compatible with ADI's existing Pulser Board and with ADI's GaN Power Amplifier Evaluation Boards

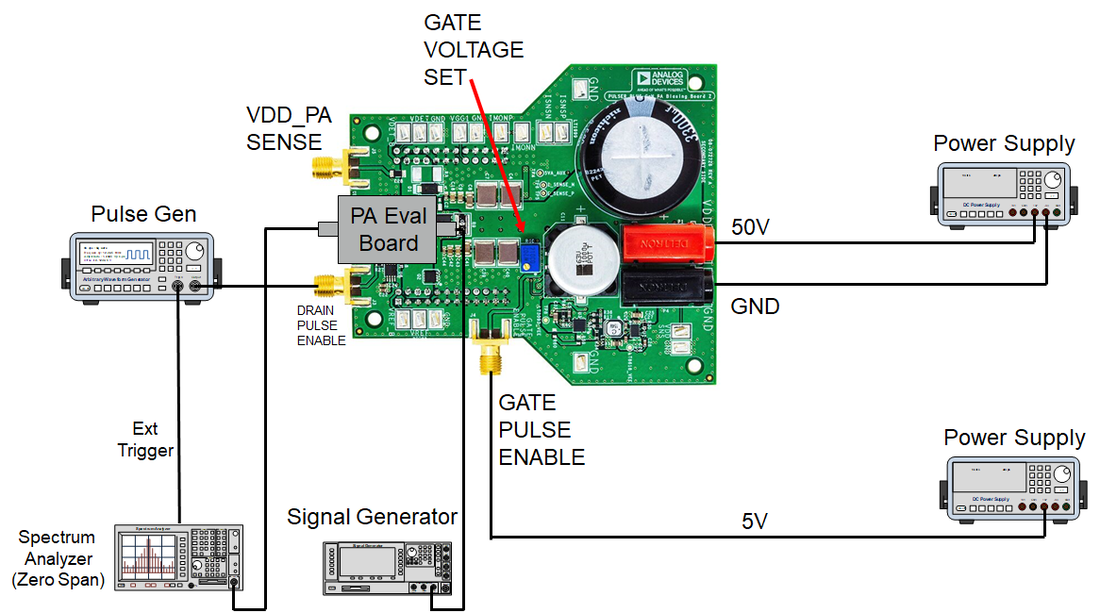

    • Operation in Drain Pulsed Mode or Gate Pulsed Mode
    • Optional Crowbar Circuit for Fast Turn Off in Drain Pulsed Mode
    • Single 24 V to 50 V Power Supply with on-board Negative Gate Voltage Generation.
    • Drain Current Monitoring Circuit

    Product Detail

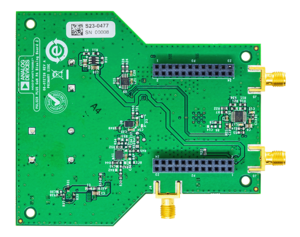

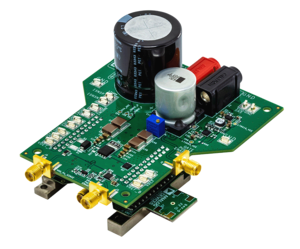

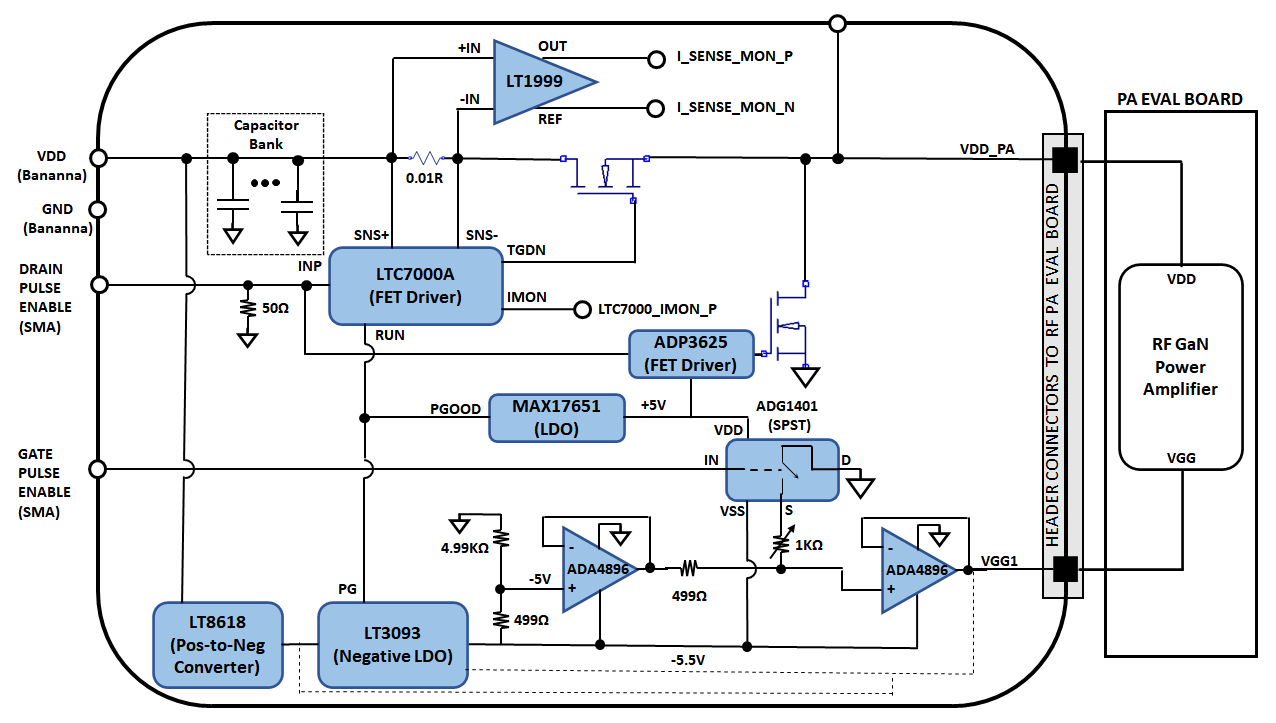

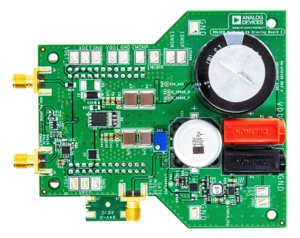

    Pulser Plus is a reference design for biasing Gallium Nitride RF Power Amplifiers. It plugs directly into Analog Devices’ GaN PA evaluation boards such as ADPA1106 and ADPA1107. The only input signals required to control and operate the board are a power supply voltage between 24 V and 50V and a 0V/3V signal on the Drain Pulse Enable or Gate Pulse Enable digital inputs.

    Pulser Plus was specifically designed to enable fast pulsing of GaN Radar Power Amplifiers. It can support RF pulses as short as 1us and with rise and fall times of less than 100 ns in both Drain Pulsed mode and Gate Pulsed Mode.
