Features and Benefits
- 5.7 kV rms, signal isolated RS-485 transceiver
- 1500 V peak and dc working voltage to DIN V VDE 0884-11
- Low radiated emissions: passes EN 55032, Class B with margin on a 2-layer PCB
- ESD protection on the RS-485 A, B, Y, and Z bus pins
- ≥ ±12 kV IEC 61000-4-2 contact discharge
- ≥ ±15 kV IEC 61000-4-2 air discharge
- Low speed 500 kbps data rate for EMI control
- Flexible power supply inputs
- Primary VDD1 supply of 1.7 V to 5.5 V
- Isolated VDD2 supply of 3.0 V to 5.5 V
- Profibus® Compliant for 5V VDD2
- Wide −40°C to +125°C operating temperature range
- High common-mode transient immunity: >250 kV/μs
- Short-circuit, open-circuit, and floating input receiver fail-safe
- Supports 192 bus nodes (72 kΩ receiver input impedance)
- Full hot swap support (glitch free power-up and power-down)
- Safety and regulatory approvals (pending)
- CSA Component Acceptance Notice 5A, DIN V VDE 0884-11, UL 1577, CQC11-471543-2012, IEC 61010-1

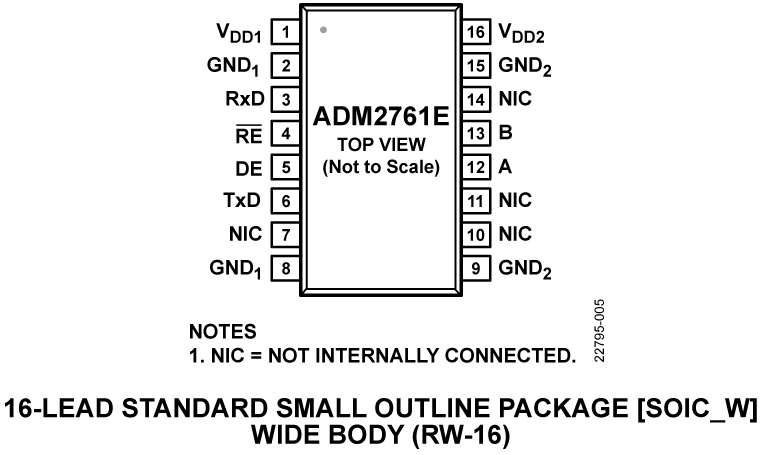

- 16-lead, wide-body, SOIC_W package with 8.3 mm creepage and clearance in standard pinout

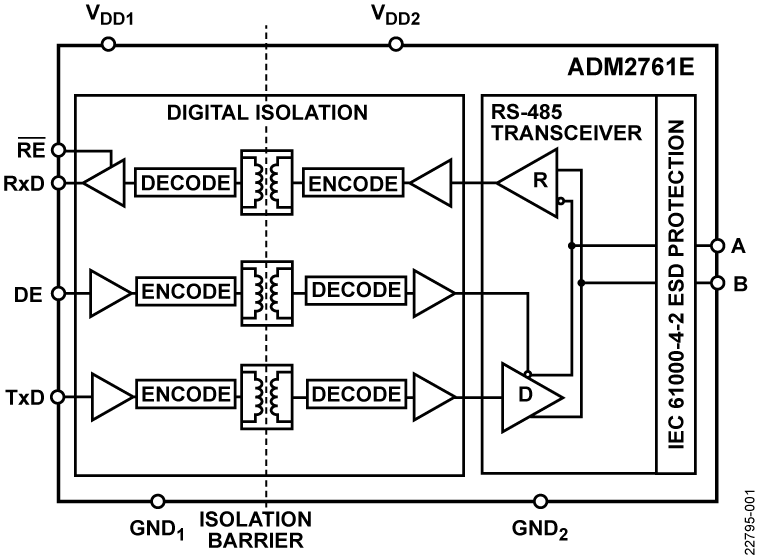

The ADM2761E/ADM2763E are 500 kbps, 5.7 kV rms, signal isolated RS-485 transceivers that pass radiated emissions testing to the EN 55032, Class B standard with margin on a 2-layer printed circuit board (PCB). These devices are compliant to the RS-485 and RS-422 communication standards. The ADM2761E/ ADM2763E isolation barrier provides robust system level immunity to IEC 61000-4-x system level electromagnetic compatibility (EMC) standards. The devices are suitable for applications that require insulation against working voltages of 1060 V rms and 1500 V dc for the lifetime of the device.
The devices are protected against ≥±12 kV contact and ≥±15 kV air IEC 61000-4-2 electrostatic discharge (ESD) events on the RS-485 A, B, Y, and Z pins. The ADM2763E features a receiver cable invert pin to allow quick correction of the reversed cable connection on the A and B receiver bus pins while maintaining full receiver fail-safe performance.
These devices are optimized for low speed over long cable runs and have a maximum data rate of 500 kbps. The high differential output voltage makes these devices suitable for PROFIBUS® nodes when powered with 5 V on the VDD2 supply. The VDD1 primary supply and VDD2 isolated supply both support a wide range of voltages (1.7 V to 5.5 V and 3.0 V to 5.5 V, respectively). Half-duplex and full duplex device options are available in the industry standard 16-lead, wide body, standard SOIC_W package with 8.3 mm creepage and clearance.
- Solar inverters
- Electrical test and measurement
- Heating, ventilation, and air-conditioning (HVAC) networks
- Industrial field buses
- Building automation
Markets and Technologies
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

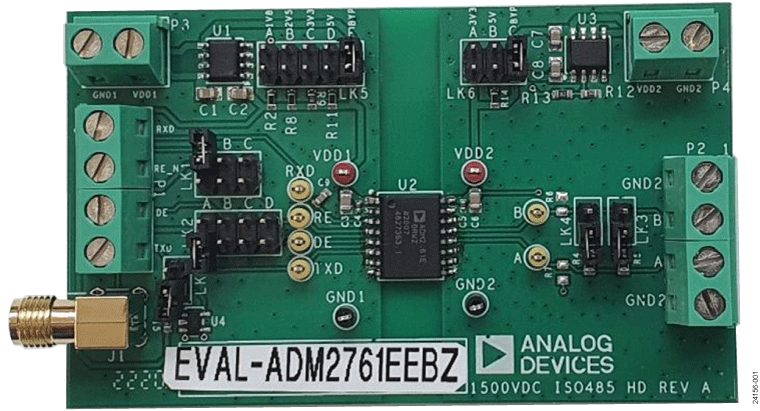

The EVAL-ADM2761EEBZ allows simplified, efficient evaluation of the ADM2761E 5.7 kV rms, high working voltage, half duplex signal isolated RS-485 transceiver.
The EVAL-ADM2761EEBZ comes with options for the evaluation of the ADM2761E device in an individual system. Digital and RS-485 bus signals are easily accessible via the screw terminal blocks on the EVAL-ADM2761EEBZ. Each digital input can be configured via the on-board jumper options.
Two on-board ADP7104 low dropout (LDO) regulators accept an input voltage of up to 20 V and output a range of selectable supply voltages to the VDD1 pin and VDD2 pin that are configurable via jumper options. The LDO regulators can be bypassed to power the ADM2761E VDD1 supply pin and VDD2 supply pin directly from an external power supply.
The flexible VDD1 pin primary side logic supply allows the device to operate with a digital input/output (I/O) voltage from 1.7 V to 5.5 V, which enables communication with modern nodes using either a 1.8 V or 2.5 V power supply. The VDD1 pin can also be supplied from the ADP7104 regulated supply.
Alternative methods can provide the transmit data input (TxD) data input signal to the device. An optional LTC1799 oscillator is included on the EVAL-ADM2761EEBZ and can be configured to provide a clock signal as the TxD digital input within a 10 kHz to 250 kHz range. A terminal block allows an easy wired connection to a microcontroller or processor. For optimal signal integrity, use the on-board Subminiature Version A (SMA) connector to connect an external data signal.
The EVAL-ADM2761EEBZ has a footprint for the ADM2761E half duplex, isolated, RS-485 transceiver in a 16-lead, small outline, wide body (SOIC_W) package.
For full details on the ADM2761E, see the ADM2761E data sheet, which must be used in conjunction with this user guide when using the EVAL-ADM2761EEBZ.
Features & Benefits
- Simplified evaluation of the ADM2761E signal isolated, half duplex RS-485 transceiver with 1500 V peak working voltage
- 2-layer PCB compliant to EN 55032 Class B radiated emissions
- Footprint for standard half duplex, 16-lead, SOIC_W package with 8.3 mm creepage and clearance
- On-board ADP7104 LDO regulators with jumper options for simplified evaluation in multiple supply configurations
- Flexible, low voltage VDD1 supply rail for interfacing with input and output nodes as low as 1.7 V
- Wide bus voltage DD2 supply rail from 3.0 V to 5.5 V
- IEC 61000-4-2 ESD protection on the A pin and B pin
- ≥±12 kV contact discharge and ≥±15 kV air discharge
- SMA connector for TxD input signal
- Optional on-board LTC1799 oscillator for providing TxD signal
- Screw terminal blocks for connecting power, digital, and RS-485 signals
- Jumper-selectable enable and disable for digital input signals
- Resistors and footprints for termination
- Test points for measuring all signals
Documentation & Resources
Tools & Simulations
ADM2761E Companion Parts
