ADH8412S: Low Noise Amplifier, 0.4 GHz to 11 GHz

Viewing:

Overview

  • Low noise figure: 1.4 dB typical at 0.4 GHz to 3 GHz
  • Single positive supply (self biased)
  • High gain: ≤15.5 dB typical
  • High OIP3: ≤33 dBm typical
  • RoHS compliant, 2 mm × 2 mm, 6-lead LFCSP

COMMERCIAL SPACE FEATURES

  • Supports aerospace applications
  • Wafer diffusion lot traceability
  • Radiation monitor
    • TID benchmark characterization
    • Radiation lot acceptance test (RLAT) for production TID assurance
    • Single event latch-up (SEL) benchmark characterization
  • Outgassing characterization
  • Commercial space high (CSH) features
    • Certificate of conformance
    • Qualification based on flows per NASA PEM-INST-001 and SAE AS6294
    • Burn-in, life test, and delta analysis

The ADH8412S is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise wideband amplifier that operates from 0.4 GHz to 11 GHz.

The ADH8412S provides a typical gain of 15.5 dB, a 1.4 dB typical noise figure, and a typical output third-order intercept (OIP3) of ≤33 dBm, requiring only 60 mA from a 5 V drain supply voltage. The saturated output power (PSAT) of ≤20.5 dBm typical enables the low noise amplifier (LNA) to function as a local oscillator (LO) driver for many Analog Devices, Inc., balanced, in-phase and quadrature (I/Q), or image rejection mixers.

The ADH8412S also features inputs and outputs that are internally matched to 50 Ω, making the device ideal for surface-mount technology (SMT)-based, space applications. The ADH8412S is housed in a 2 mm × 2 mm, 6-lead lead frame chip scale package (LFCSP).

Additional application and technical information can be found in the Commercial Space Products Program brochure and HMC8412 data sheet.

Applications

  • Aerospace
  • Satellite missions across multiple orbits:
    • Commercial space low (CSL) product flow targeted at short mission-life low Earth orbit (LEO) missions
    • CSH product flow targeted at high-reliability, longer-life, or higher-orbit missions
  • Military radar
  • Telecommunications
  • Satellite communications
  • Avionics
  • Electronic warfare

ADH8412S
ADH8412S: Low Noise Amplifier, 0.4 GHz to 11 GHz

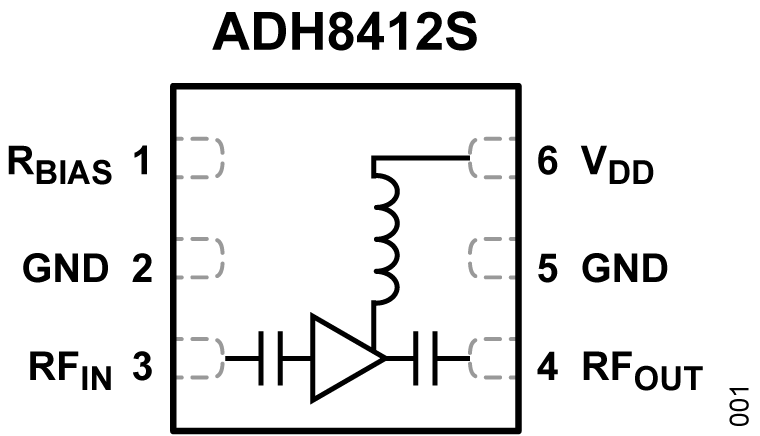

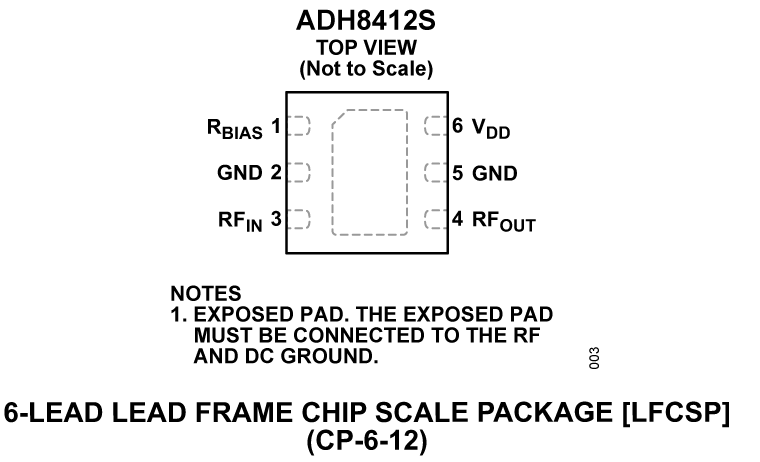

ADH8412S Functional Block Diagram ADH8412S Pin Configuration
