ADGM1001

0 Hz/DC to 34 GHz, SPDT MEMS Switches

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 3
1ku List Price Starting From $84.06
Features
  • ADGM1001: DC to 34 GHz
  • Insertion loss
    • 0.8 dB (typical) at 18 GHz
    • 1.5 dB (typical) at 34 GHz
  • IIP3: 76 dBm (typical)
  • Maximum RF power: 33 dBm
  • On resistance: 3.4 Ω (typical)
  • Maximum dc current: 200 mA
  • Actuation lifetime: 100 million cycles (minimum)
  • On switching time (tON): 200 μs (typical)
  • Integrated 3.3 V driver for simple control with parallel and SPI
  • Independently controllable switches
  • Space-saving integrated passive components
  • Small, 5.00 mm × 4.00 mm × 0.90 mm, 24-lead LGA package
  • Temperature range: –40°C to +85°C
Additional Details
show more Icon

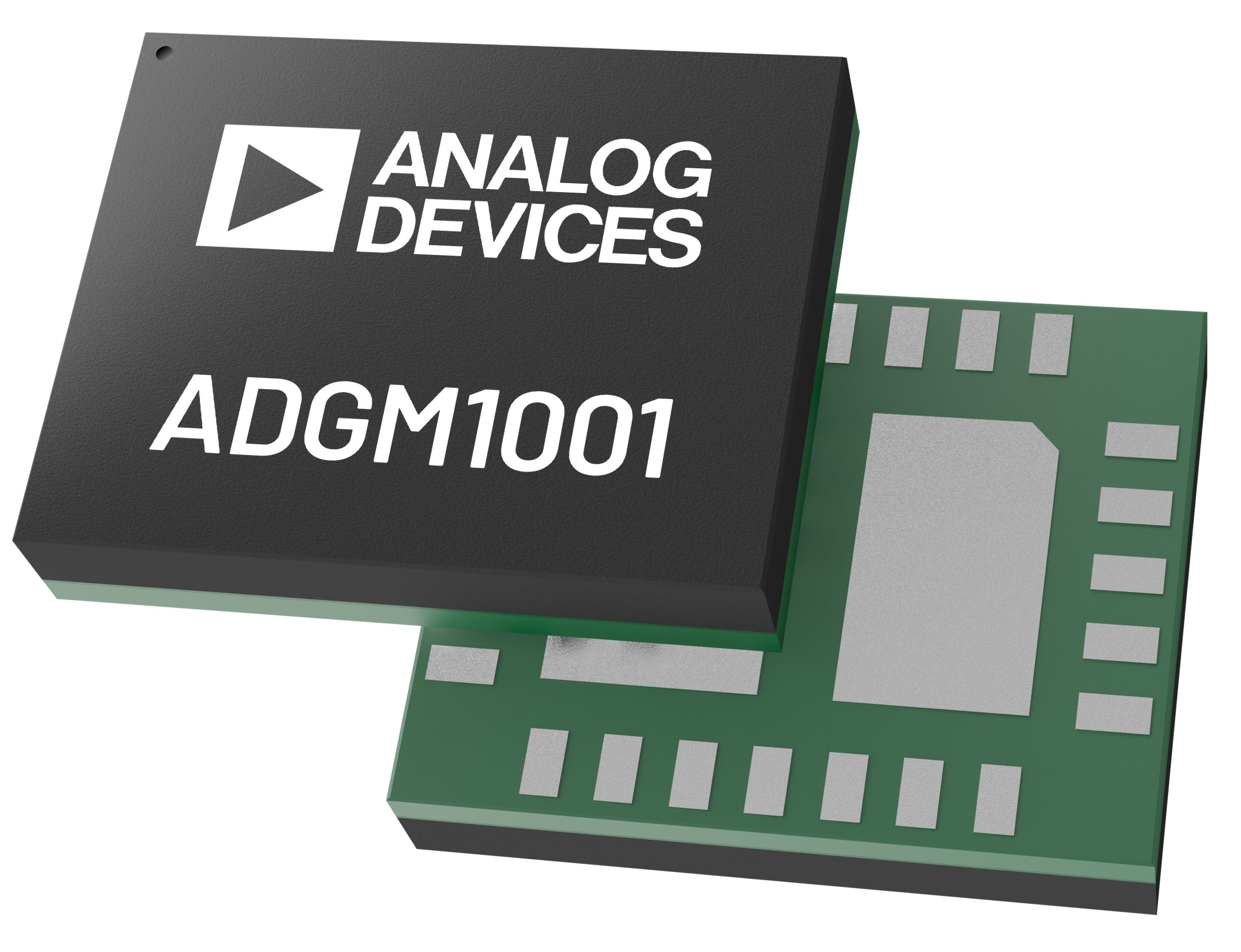

The ADGM1001/ADGM1002/ADGM1003 is a wideband, single-pole, two-throw (SP2T) switch, fabricated using Analog Devices, Inc., micro-electromechanical system (MEMS) switch technology. This technology enables a small form factor, wide RF bandwidth, highly linear, low insertion loss switch that is operational down to 0 Hz/dc, making it an ideal solution for a wide range of RF and precision equipment switching needs. The device is packaged in a 24-lead, 5.00 mm × 4.00 mm × 0.90 mm, land grid array (LGA) package.

An integrated control chip generates the high voltage necessary to electrostatically actuate the switch via a complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible parallel interface. All switches are independently controllable.

Multifunction pin names may be referenced by their relevant function only.

ADGM1001/ADGM1002/ADGM1003 Key Specifications
Model Bandwidth Maximum RF Power (dBm) DC Signal Range (V) Maximum DC Current (mA)
ADGM1001 DC to 34 GHz 33 ±6 200
ADGM1002 DC to 20 GHz 30 ±5 150
ADGM1003  DC to 16 GHz 27 ±3 75

APPLICATIONS

  • ATE load and probe boards
  • DC and high speed loop back testing
  • Relay replacements
  • Reconfigurable filters and attenuators
  • Military and microwave radios
  • Cellular infrastructure: 5G mmWave
  • Supports digital standards: PCIe Gen4/Gen5/Gen6, USB 3 and USB 4, and PAM 4
Part Models 3
1ku List Price Starting From $84.06

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADGM1001BCCZ
  • HTML
  • HTML
ADGM1001BCCZ-R2
  • HTML
  • HTML
ADGM1001BCCZ-RL7
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADGM1001

Evaluating the ADGM1001 0 Hz/DC to 34 GHz, SPDT, MEMS Switch

zoom

EVAL-ADGM1001

Evaluating the ADGM1001 0 Hz/DC to 34 GHz, SPDT, MEMS Switch

Evaluating the ADGM1001 0 Hz/DC to 34 GHz, SPDT, MEMS Switch

Features and Benefits

  • Single-supply voltage: 3.3 V
  • Wide frequency range: DC to 34 GHz
  • SMA connectors for RF signals
  • Parallel interface and SPI
  • On-board CALIBRATION THRU transmission line for analyzer calibration

Product Detail

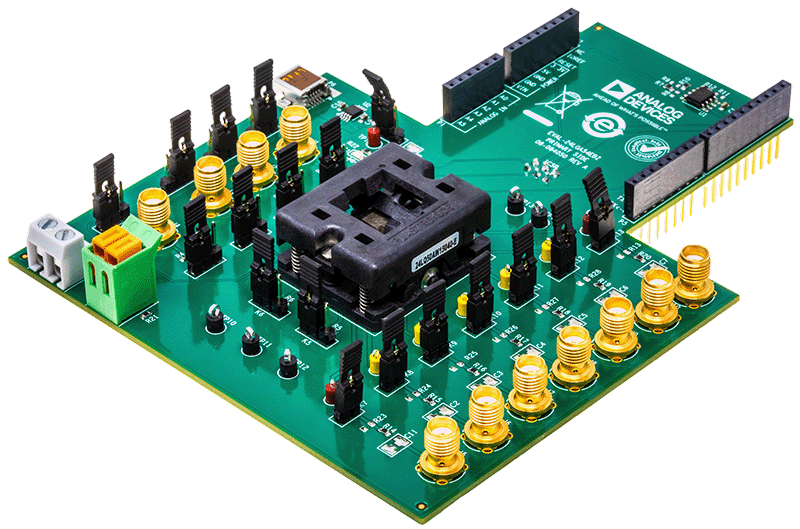

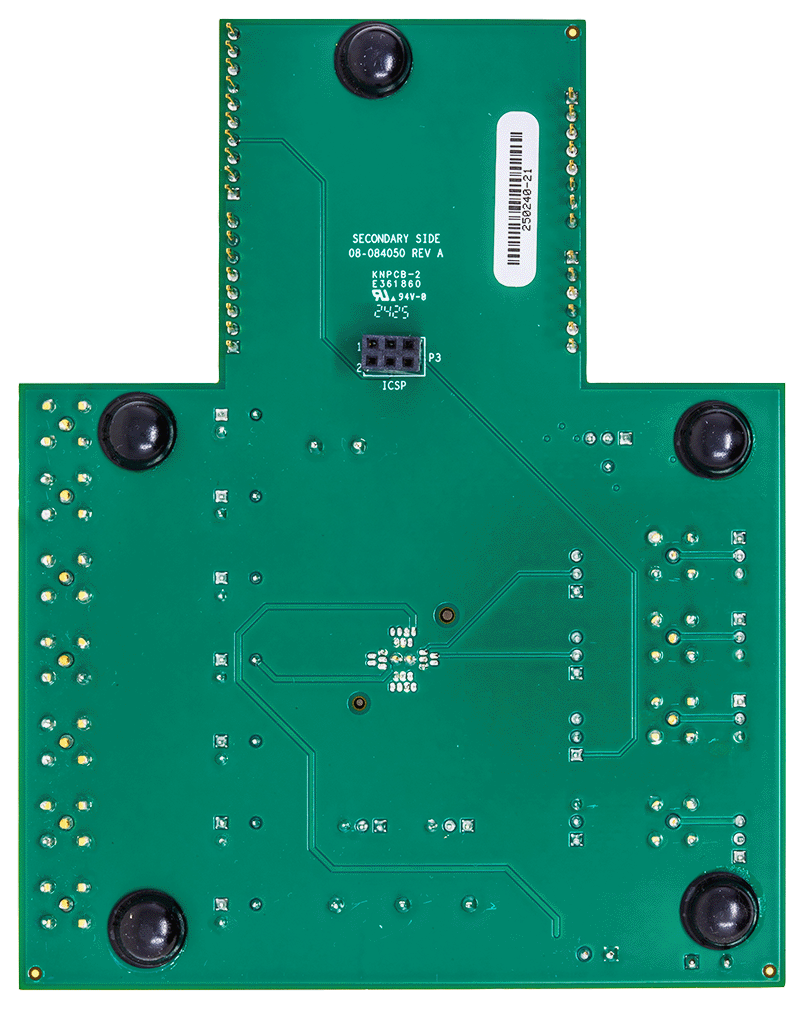

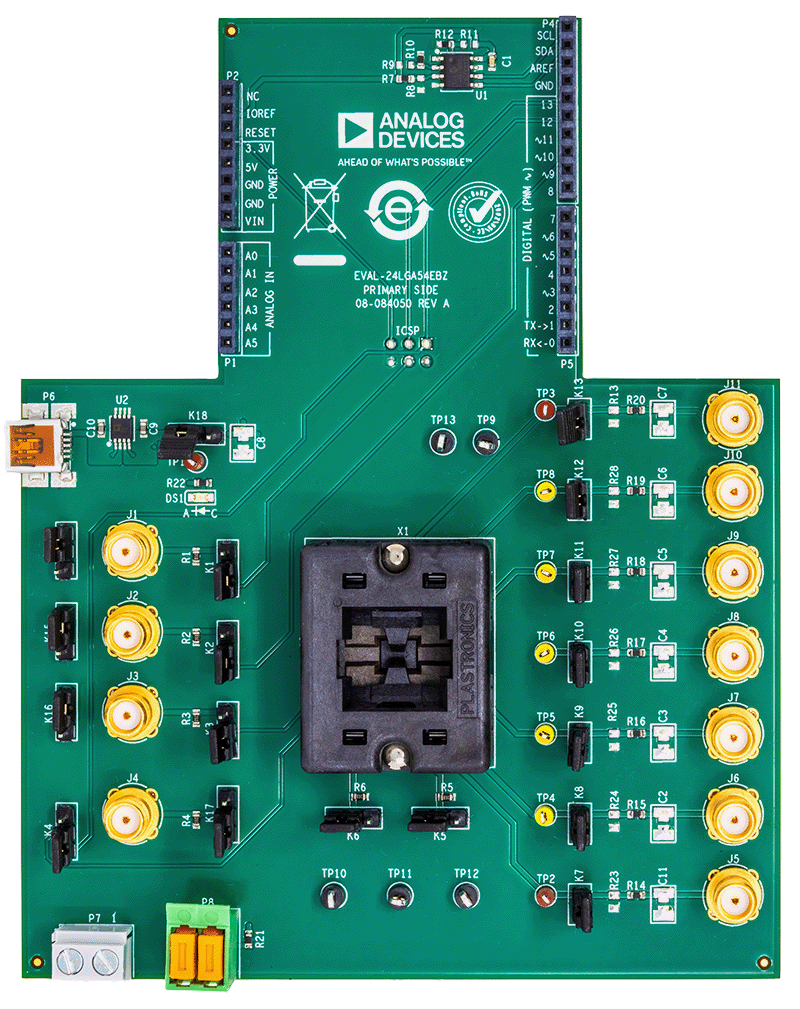

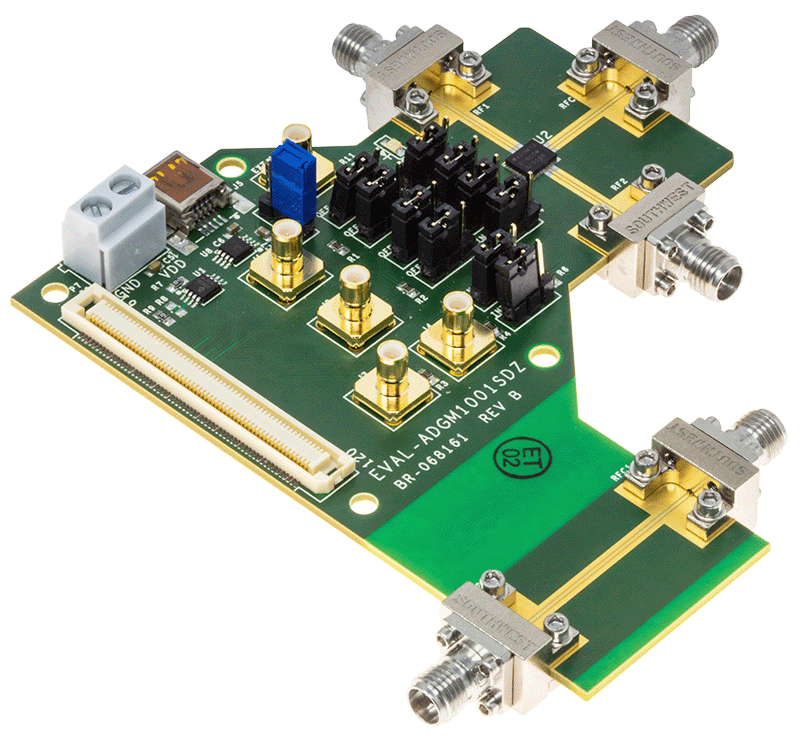

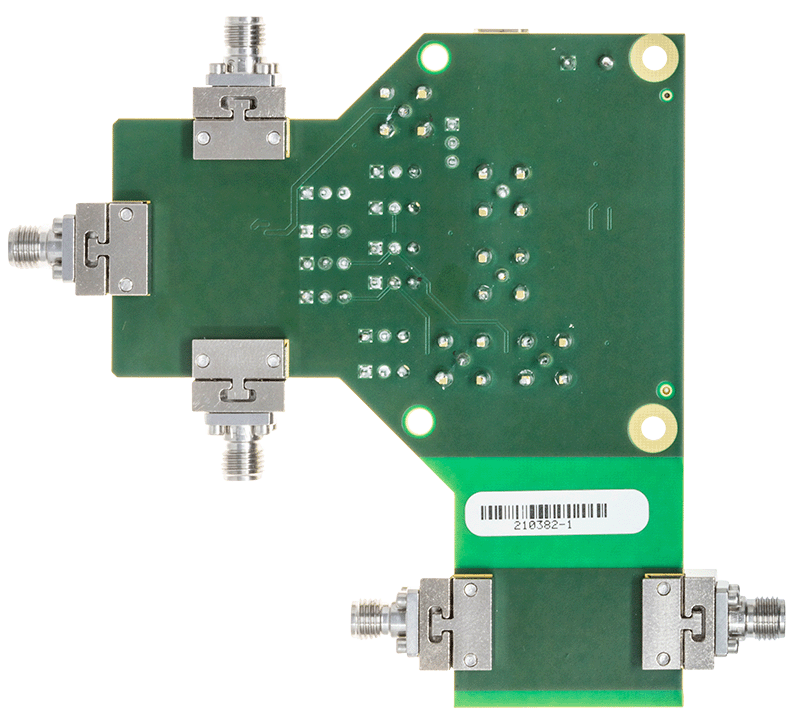

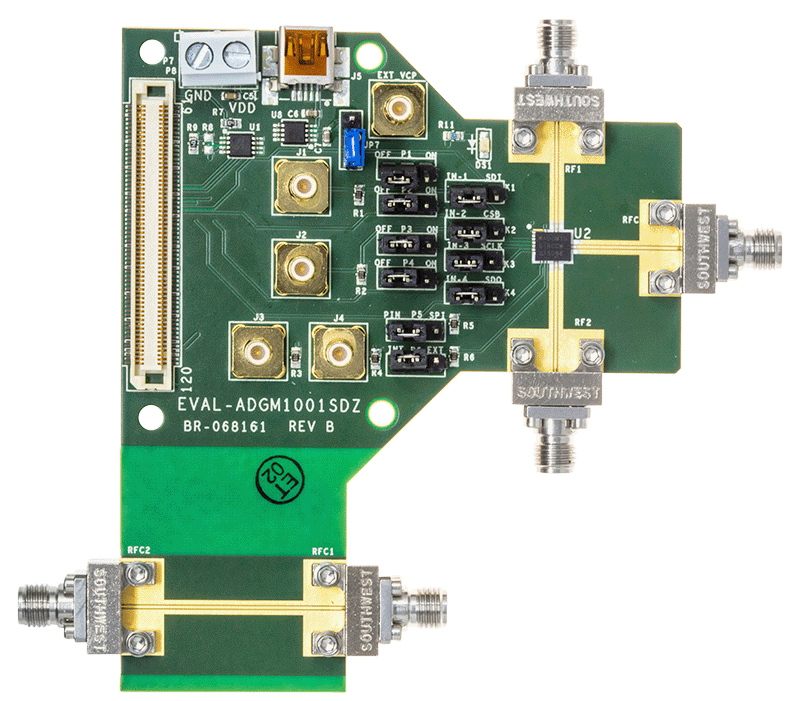

The user guide describes the EVAL-ADGM1001SDZ evaluation board for the ADGM1001, a dual-chip, RF switching solution containing a single-pole, two-throw (SPDT), microelectromechanical systems (MEMS) switch, and a control chip copackaged in a compact, 5.00 mm × 4.00 mm × 0.90 mm, LGA package.

The SPDT switch uses Analog Devices, Inc., MEMS switch technology, providing optimum performance in terms of bandwidth, power handling capability, and linearity for RF applications. The control chip generates the high voltage signals needed for the MEMS switch and allows the user to control its operation through a simple and flexible complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compliant parallel interface as well as via a serial peripheral interface (SPI). It is possible to daisy-chain multiple ADGM1001 devices together to enable the configuration of multiple devices with a minimal number of digital lines.

For SPI, the EVAL-ADGM1001SDZ connects to the USB port of a PC via the SDP board. The EVAL-SDP-CB1Z board (SDP-B controller board) is available to order at via the Analog Devices website at www.analog.com/SDP-B.

The EVAL-ADGM1001SDZ comes fitted with connectors for RF and control signals as well as links to control the operation of the switch and evaluate its performance.

For full details on the ADGM1001, see the ADGM1001 data sheet, which should be consulted in conjunction with the user guide when using the EVAL-ADGM1001SDZ evaluation board.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
