ADA4350

FET Input Analog Front End with ADC Driver

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 2
1ku List Price Starting From $6.74
Features
  • Low noise, low input bias current FET input amplifier
    • Very low input bias current: ±0.25 pA typical at 25°C
    • Low input voltage noise
      92 nV/√Hz typical at 10 Hz at 5 V
      5 nV/√Hz typical at 100 kHz at ±5 V
    • Gain bandwidth product: 175 MHz
    • Input capacitance
      3 pF typical, differential mode
      2 pF typical, common mode
  • Integrated gain switching
    • Sampling and feedback switch off leakage: ±0.5 pA typical
    • Worst case tON/tOFF times: 105 ns typical/65 ns typical
  • Integrated analog-to-digital converter (ADC) driver
    • Differential mode and single-ended mode
    • Adjustable output common-mode voltage
      −5 V to +3.8 V typical for ±5 V supply
    • Wide output voltage swing: ±4.8V minimum for ±5 V supply
    • Linear output current: 18 mA rms typical for ±5V supply
  • See data sheet for additional features
Additional Details
show more Icon

The ADA4350 is an analog front end for photodetectors or other sensors whose output produces a current proportional to the sensed parameter or voltage input applications where the system requires the user to select between very precise gain levels to maximize the dynamic range.

The ADA4350 integrates a FET input amplifier, a switching network, and an ADC driver with all functions controllable via a serial peripheral interface (SPI) or parallel control logic into a single IC. The FET input amplifier has very low voltage noise and current noise making it an excellent choice to work with a wide range of photodetectors, sensors, or precision data acquisition systems.

Its switching network allows the user individual selection of up to six different, externally configurable feedback networks; by using external components for the feedback network, the user can more easily match the system to their desired photodetector or sensor capacitance. This feature also allows the use of low thermal drift resistors, if required.

The design of the switches minimizes error sources so that they add virtually no error in the signal path. The output driver can be used in either single-ended or a differential mode and is ideal for driving the input of an ADC.

The ADA4350 can operate from a single +3.3 V supply or a dual ±5 V supply, offering user flexibility when choosing the polarity of the detector. It is available in a Pb-free, 28-lead TSSOP package and is specified to operate over the −40°C to +85°C temperature range. Multifunction pin names may be referenced by their relevant function only.

Applications

  • Current to voltage (I to V) conversions
  • Photodiode preamplifiers
  • Chemical analyzers
  • Mass spectrometry
  • Molecular spectroscopy
  • Laser/LED receivers
  • Data acquisition systems
    Part Models 2
    1ku List Price Starting From $6.74

    close icon

    Documentation

    Video

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    ADA4350ARUZ
    • HTML
    • HTML
    ADA4350ARUZ-R7
    • HTML
    • HTML

    Software & Part Ecosystem

    Evaluation Kits 1

    reference details image

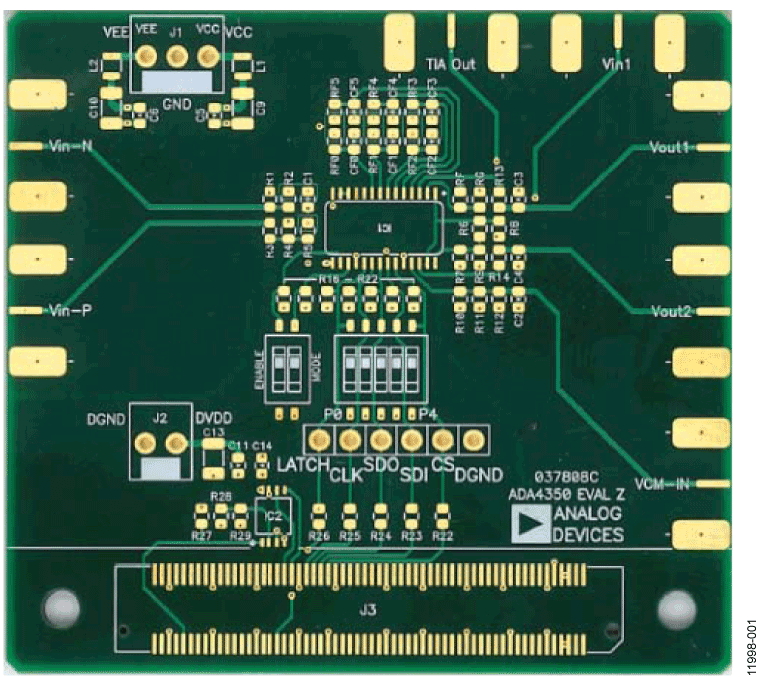

    EVAL-ADA4350

    ADA4350 Evaluation Board

    zoom

    EVAL-ADA4350

    ADA4350 Evaluation Board

    ADA4350 Evaluation Board

    Features and Benefits

    • Enables quick breadboarding/prototyping
    • User defined circuit configuration
    • Edge mounted SMA connector provisions
    • Easy connection to test equipment and other circuits
    • Guard ring to minimize leakage currents

    Product Detail

    The EVAL-ADA4350RUZ-P evaluation board is designed to evaluate the ADA4350 offered in a 28-lead, 9.8 mm × 6.4 mm thin shrink small outline package (TSSOP). The evaluation board is a populated board that enables users to quickly prototype the best configuration of the analog front end for their systems.

    The evaluation board is a 6-layer printed circuit board (PCB) designed to minimize leakage currents with its guard ring features. It accepts SMA edge mounted connectors on the inputs and outputs for efficient connection to test equipment or other circuitry.

    The evaluation board components are primarily SMT 0603 case size with the exception of the electrolytic bypass capacitors (C9, C10, and C13), which are 1206 case size.
