Overview

Features and Benefits

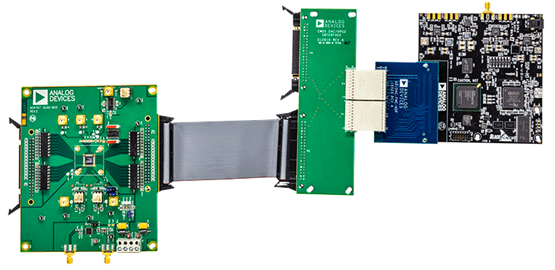

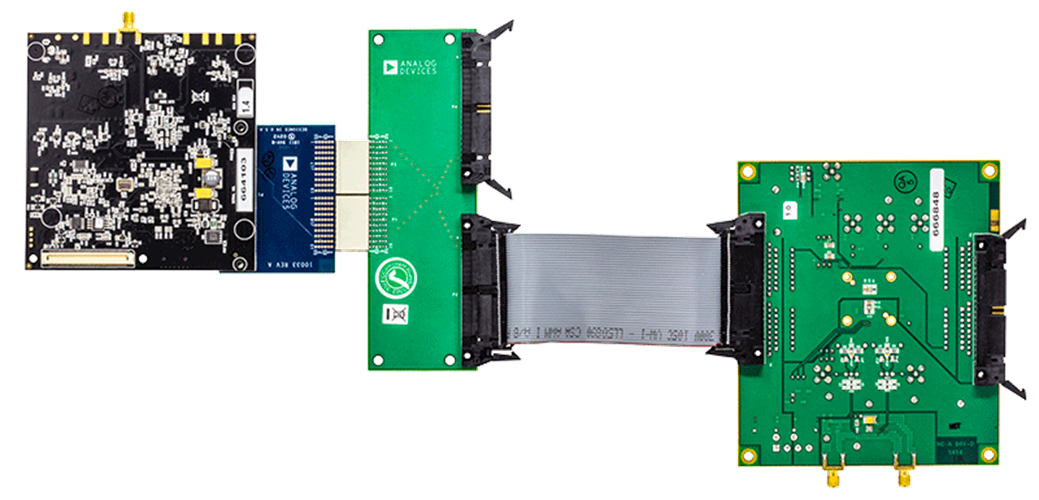

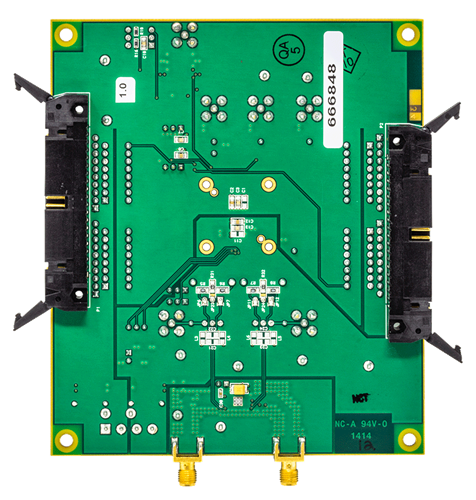

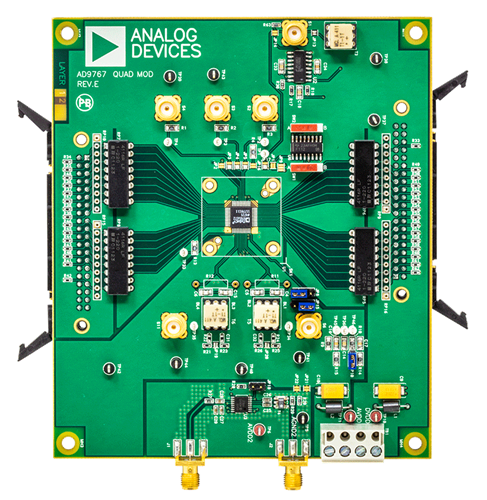

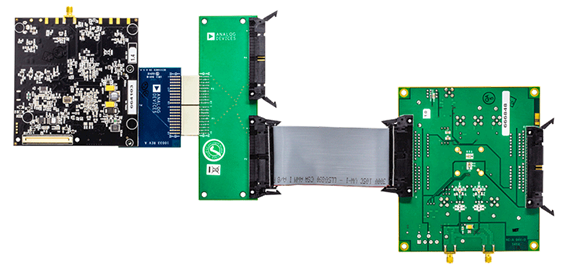

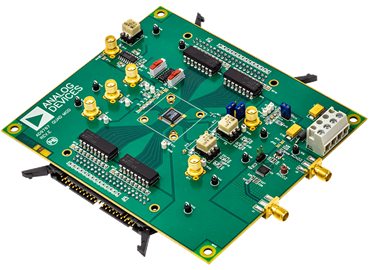

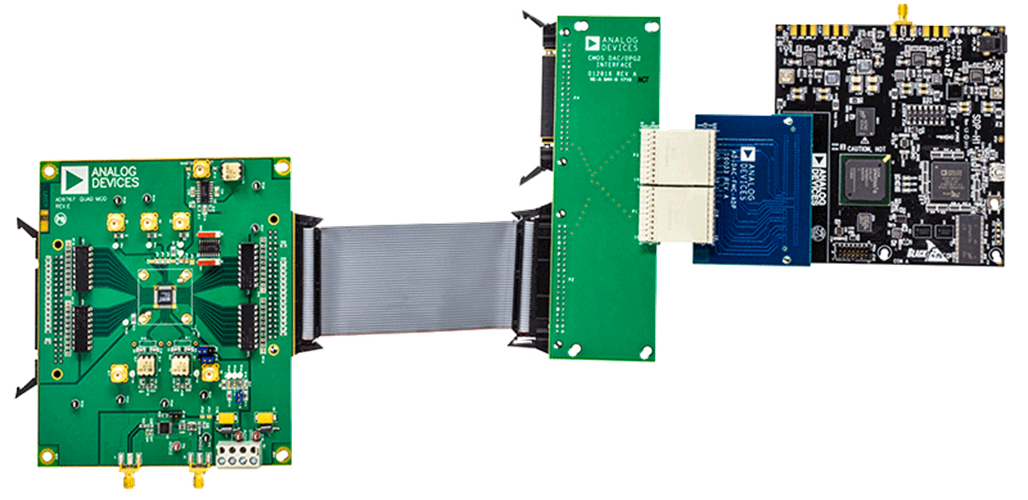

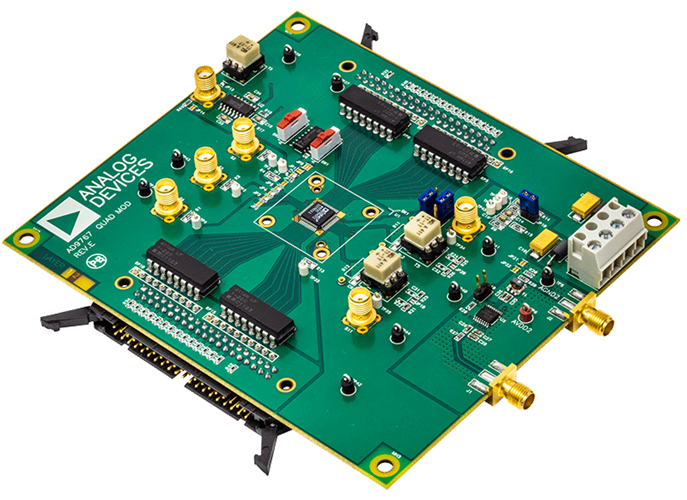

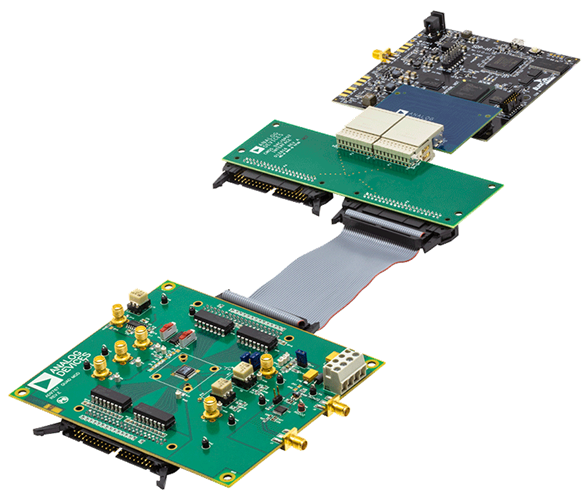

  • Evaluation board for the AD9767/AD9765/AD9763/AD9709.
  • Includes options to evaluate
    • DAC only
    • DAC and AD8349 quadrature modulator
  • Data pattern generator

Markets and Technologies

Applicable Parts

Documentation & Resources

  • View All (1)
  • User Guide (1)
    • Document Type

    Software

    Evaluation Software

    WIKI
    DPG Lite
    DPG Lite is used to download data to supported HS-DAC evaluation boards. Refer to your evaluation board user guide if you need to use DPG Lite.
    WIKI
    DPG Downloader Software
    DPGDownloader is an application created to communicate with a data pattern generator (DPG) for quick and efficient high-speed DAC evaluation. It is used for many High speed DAC products to generate and play example signals to the DAC.

    Related Hardware (2)

    Controller Boards
