概览
优势和特点
- Low Power, IS = 60µA(Max)
- Robust, Latch Up Proof
- Instrumentation Front End with 120dB CMRR
- Precise, Charge-Balanced Switching
- Operates from 5V to 18V
- Internal or External Clock
- Operates up to 5MHz Clock Rate
- Two Independent Sections with One Clock

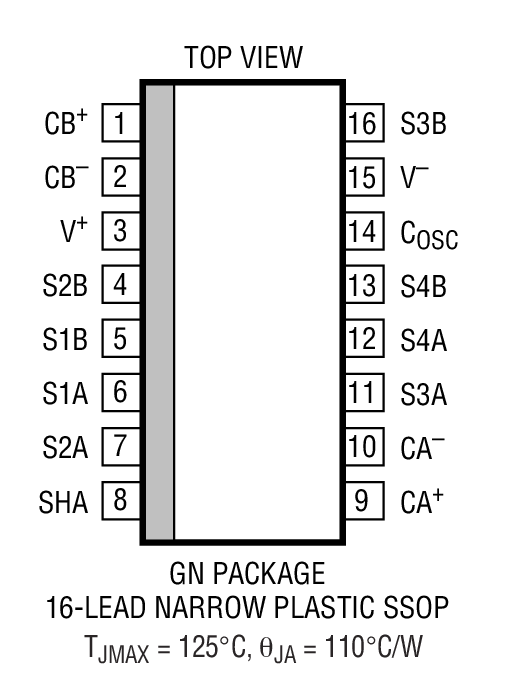

- Tiny SSOP-16 Package
产品详情
The LTC®6943 is a monolithic, charge-balanced, dual switched capacitor instrumentation building block. A pair of switches alternately connects an external capacitor to an input voltage and then connects the charged capacitor across an output port. The internal switches have a break-before-make action. An internal clock is provided and its frequency can be adjusted with an external capacitor. The LTC6943 can also be driven with an external CMOS clock.The LTC6943, when used with low clock frequencies, provides ultra precision DC functions without requiring precise external components. Such functions are differential voltage to single-ended conversion, voltage inversion, voltage multiplication and division by 2, 3, 4, 5, etc.
The LTC6943 is manufactured using Linear Technology’s enhanced LTCMOSTM silicon gate process, and it is functionally compatible with the LTC1043.
应用
- Ultra Precision Voltage Inverters, Multipliers and Dividers
- V–F and F–V Converters
- Sample-and-Hold

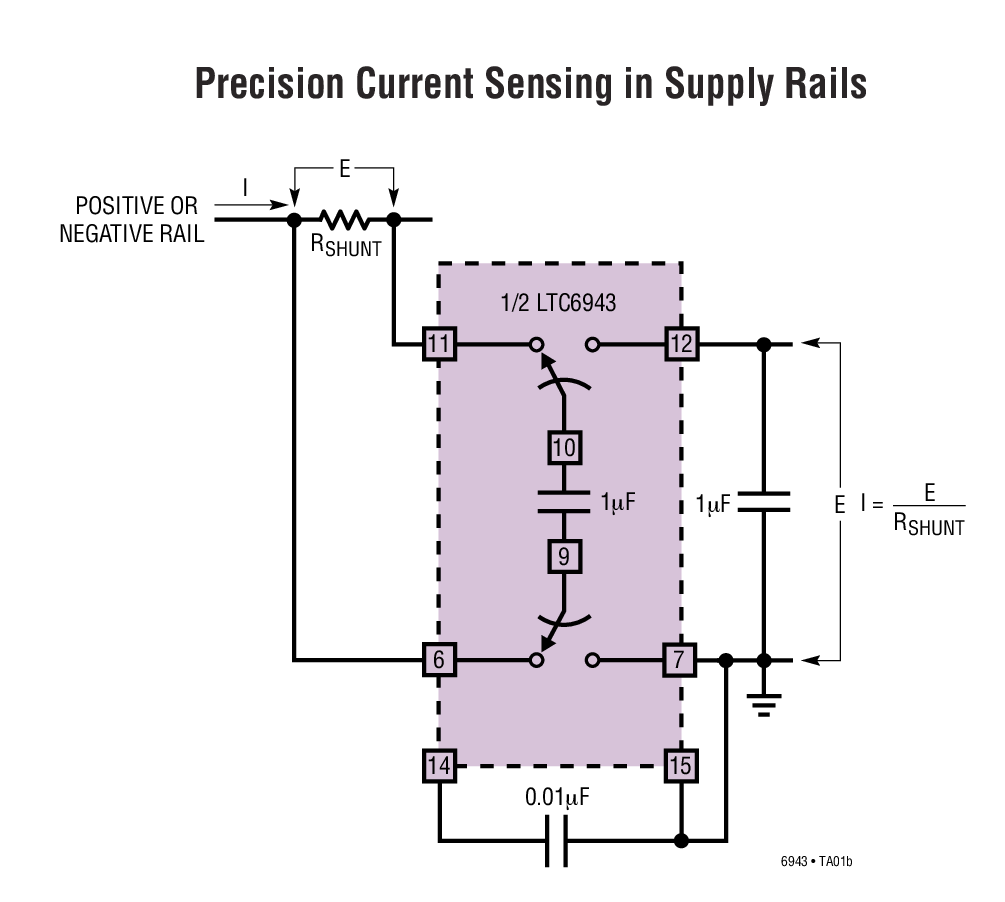

- Current Sources
- Precision Instrumentation Amplifiers
产品生命周期
新设计不推荐使用本产品
表示相关产品已过时，ADI公司不再推荐新设计使用。
参考资料
设计资源
ADI始终把满足您可靠性水平的产品放在首要位置。我们通过在所有产品、工艺设计和制造过程中引入高质量和可靠性检查实践这一承诺。发运的产品实现“零缺陷”始终是我们的目标。
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC6943CGN#PBF | 材料声明 | 质量和可靠性 | 16-Lead SSOP (Narrow 0.15 Inch) | |
| LTC6943CGN#TRPBF | 材料声明 | 质量和可靠性 | 16-Lead SSOP (Narrow 0.15 Inch) | |
| LTC6943HGN#PBF | 材料声明 | 质量和可靠性 | 16-Lead SSOP (Narrow 0.15 Inch) | |
| LTC6943HGN#TRPBF | 材料声明 | 质量和可靠性 | 16-Lead SSOP (Narrow 0.15 Inch) | |
| LTC6943IGN#PBF | 材料声明 | 质量和可靠性 | 16-Lead SSOP (Narrow 0.15 Inch) | |
| LTC6943IGN#TRPBF | 材料声明 | 质量和可靠性 | 16-Lead SSOP (Narrow 0.15 Inch) | |
| Wafer Fabrication Data | R071 Reliability Data |
