LT1311

Quad 12MHz, 145ns Settling Precision Current-to-Voltage Converter for Optical Disk Drives

过期

产品详情

Photo Diode Current-to-Voltage Converter slide

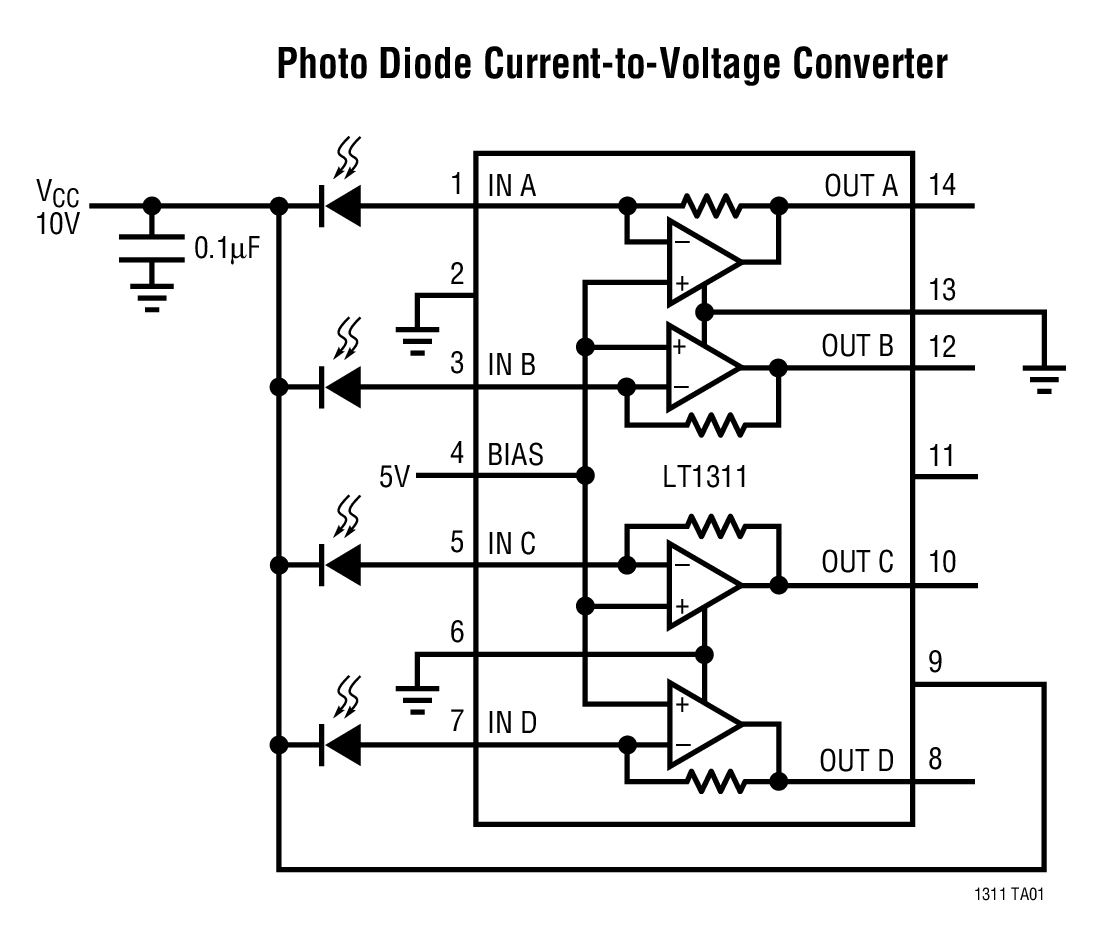

Photo Diode Current-to-Voltage Converter

不是您想寻找的产品？

去产品选项表

查看所有文档

提问

在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:

搜索

您可以在其他地方找到帮助

支持

ADI 一站式购物体验可以回答您的所有问题

访问 ADI 技术支持页面

在 ADI 论坛寻求帮助

在 EngineerZone 交流

FAQs

Sales & Ordering FAQs

特性

OBSOLETE PRODUCT Data Sheet For Reference Only
Four Complete Current-to-Voltage Converters

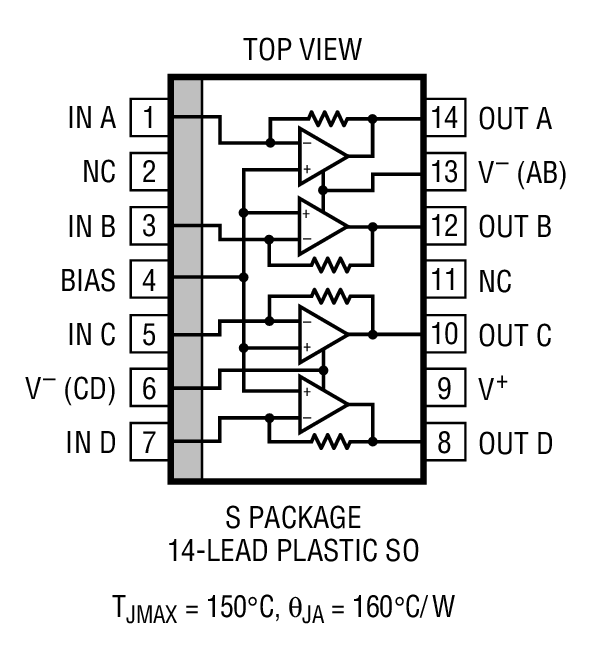

14-Lead Small Outline Package
Accurate Gain: 20mV/µA, ±4%
Low Offset Error: 250nA Max
Low Offset Drift: 2.5nA/°C Max

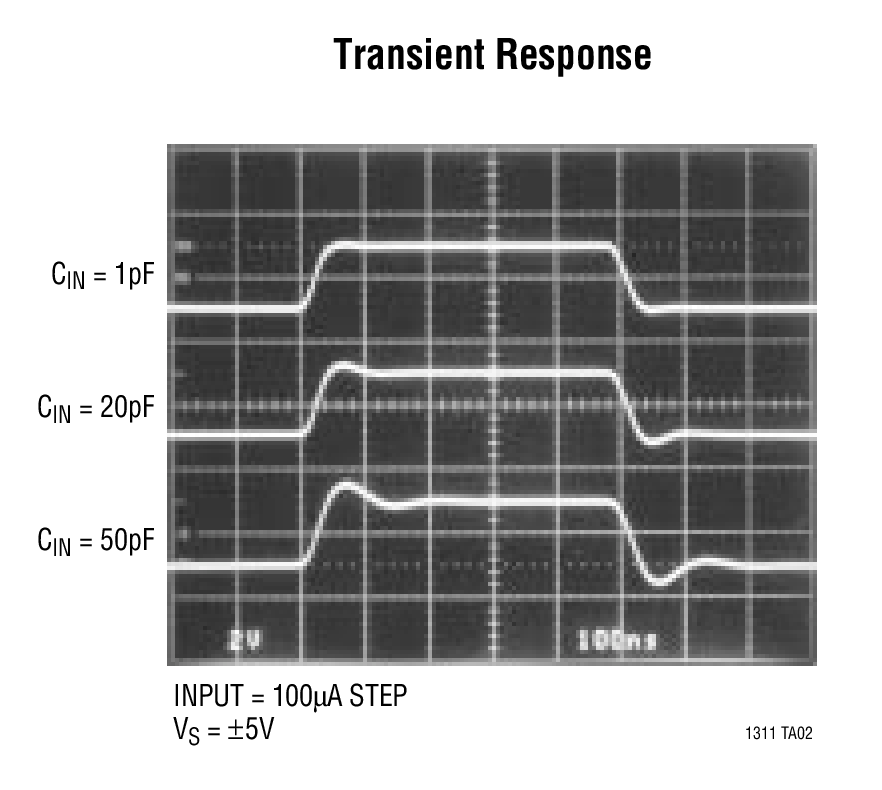

Fast Settling: 145ns to 0.1% for a 2V Step
Wide Bandwidth: 12MHz
Low Noise: 5pA√Hz
Low Quiescent Current: 11mA Max
Wide Supply Range: ±2V to ±18V or 4V to 36V

更多细节

OBSOLETE PRODUCT Data Sheet For Reference Only

The LT1311 is a quad current-to-voltage converter designed for the demanding requirements of photo diode amplification. A new approach to current-to-voltage conversion provides excellent DC and AC performance without external DC trims or AC frequency compensation. The LT1311 is ideal for converting multiple photo diode currents to voltages and for general purpose matched inverting amplifier applications.

The LT1311 contains four current feedback amplifiers, each with an internal 20k feedback resistor. A supply bypass capacitor is the only external component required to convert four signal currents to voltages. Unlike voltage feedback-based current-to-voltage converters that operate with only a specified value of input capacitance, the current feedback LT1311 settles cleanly with any input capacitance up to 50pF. Only in the most demanding applications will the LT1311 need to be mounted close to the photo diodes.

Applications
