ADSP-CM40x混合信号控制处理器

The ADSP-CM40x mixed-signal processors offer control processing performance combined with high speed, high accuracy analog-to-digital conversion aimed at the needs of next-generation industrial motor drives and servos. Based on the ARM Cortex-M4™, the ADSP-CM40x combines industry-leading 240 MHz core clock speed, large 384 kB SRAM, and 2 MB flash memories with industry-leading dual 16-bit ADCs. In addition to its raw digital and analog performance capabilities, the ADSP-CM4x offers a number of features including SINC filters for glue-less connection to AD740x ∑-∆ modulators and a harmonic analysis engine for power spectrum analysis.

  • ADSP-CM402F:  150MHz ARM Cortex-M4 with 11+ ENOB ADC, LQFP120
  • ADSP-CM403F:  240MHz ARM Cortex-M4 with 13+ ENOB ADC, LQFP120
  • ADSP-CM407F:  240MHz ARM Cortex-M4 with 11+ ENOB ADC, LQFP176
  • ADSP-CM408F:  240MHz ARM Cortex-M4 with 13+ ENOB ADC, LQFP176
  • ADSP-CM409F:  240MHz ARM Cortex-M4 with 13+ ENOB ADC, BGA212

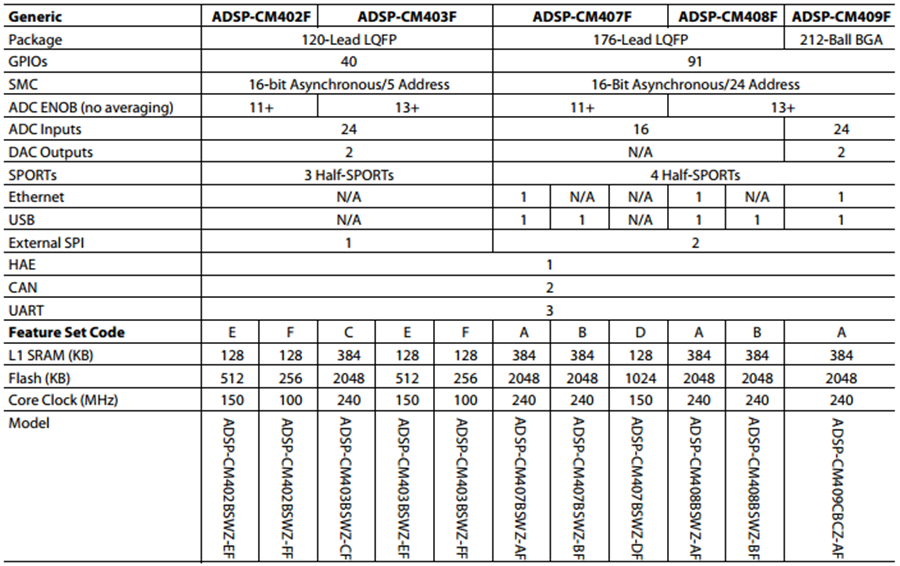

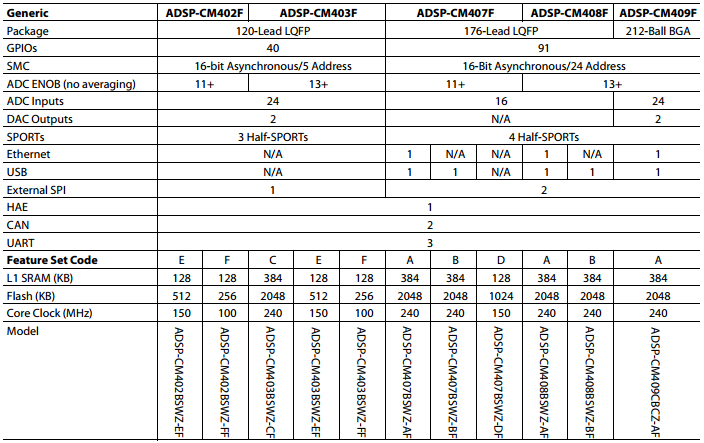

ADSP-CM40x Family Product Features
