概览

优势和特点

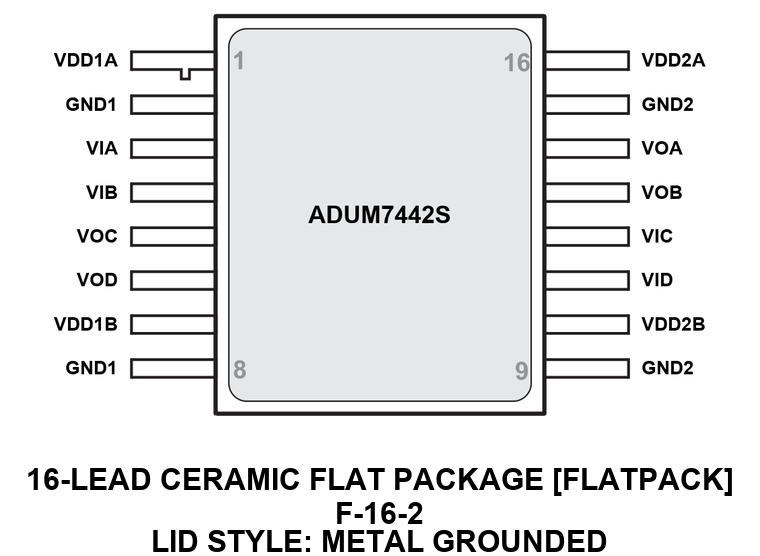

  • Small 16-lead Flatpack package
  • 200 V rms isolation rating
  • Low power operation
  • 5 V operation
    • 20 mA per channel maximum at 25 Mbps
  • 3.3 V operation
    • 14 mA per channel maximum at 25 Mbps
  • Bidirectional communication
  • Up to 25 Mbps data rate (NRZ)
  • 3 V/5 V level translation
  • High temperature operation: 125°C
  • 100K Radiation Performance

产品详情

The ADuM7442S is a 4-channel digital isolator based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technologies, this isolation component provides outstanding performance characteristics superior to the alternatives, such as optocoupler devices and other integrated couplers.

The ADuM7442S quad digital isolation device is packaged in a small 16-lead Flatpack. It offers very low power consumption, consuming one-tenth to one-sixth the power of comparable isolators at comparable data rates up to 25 Mbps. Despite the low power consumption, the ADuM7442S provides low pulse width distortion (<5 ns). The ADuM7442S also has an input glitch filter to protect against extraneous noise disturbances.

The ADuM7442S isolator provides four independent isolation channels up to 25 Mbps. The ADuM7442S operates with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier. All products also have an output default high logic state in the absence of the input signal.

Applications

  • General-purpose, multichannel isolation
  • SPI interface/data converter isolation
  • RS-232/RS-422/RS-485 transceivers

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。
