ADUM6221A
ADUM6221A
Info :
推荐新设计使用
Info :
推荐新设计使用
产品详情
产品详情
不是您想寻找的产品？
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
产品模型
4
特性
- isoPower integrated, isolated DC-to-DC converter
- 100 mA output supply
- Meets CISPR 32/EN55032 Class B emission limits up to 5 Mbps at full load on a 2-layer PCB
- Dual DC to 100 Mbps signal isolation channels
- 28-lead, fine pitch, SOIC with 8.3 mm minimum creepage
- High temperature operation: 125°C maximum
- High common-mode transient immunity: 100 kV/μs
- Safety and regulatory approvals (pending)
- UL recognition (pending)
- 5000 V rms for 1 minute per UL 1577
- CSA certification per IEC 62368-1 and IEC 61010-1 (pending)
- IEC 60747-17 certificate of conformity (pending)
- VIORM = 596 V peak
- CQC certification per GB4943.1 (pending)
更多细节
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}

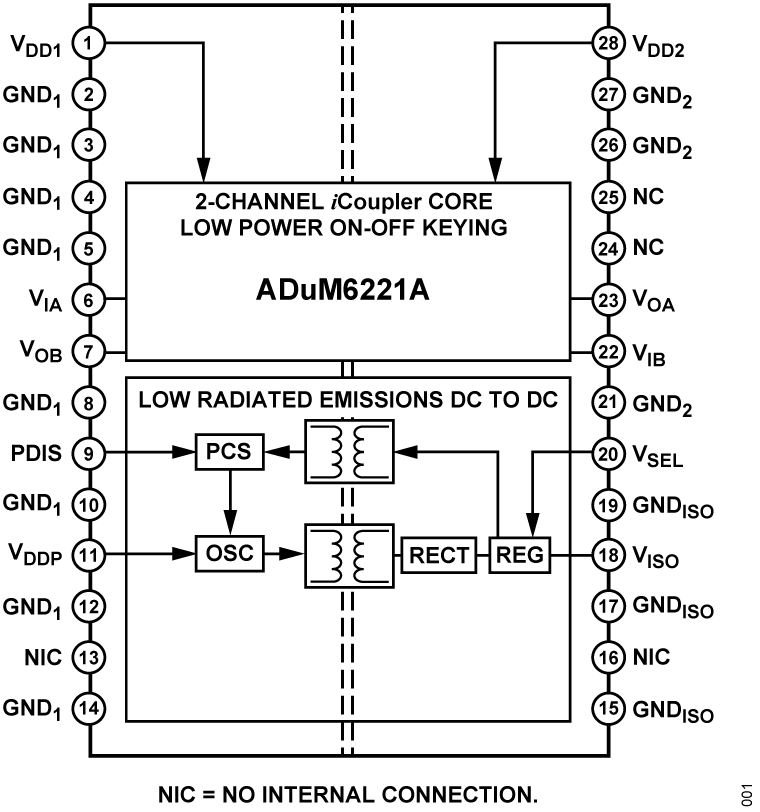

The ADuM6221A is a dual-channel digital isolators with an isoPower ®, integrated, isolated DC-to-DC converter. Based on the Analog Devices, Inc., iCoupler® technology, the DC-to-DC converter provides regulated, isolated power that meets CISPR 32/EN 55032 Class B limits at full load on a 2-layer printed circuit board (PCB) with ferrites. Popular voltage combinations and the associated output current levels are listed in Table 1.
The ADuM6221A eliminates the need for a separate, isolated DC-to-DC converter in 500 mW, isolated designs. The iCoupler chip scale transformer technology is used for isolated logic signals and for the magnetic components of the DC-to-DC converter. The result is a small form factor and total isolation solution.
The ADuM6221A isolators provide two independent isolation channels (for more details, see the Pin Configurations and Function Descriptions section).
APPLICATIONS
- RS-232 transceivers
- Power supply start-up bias and gate drives
- Isolated sensor interfaces
- Automotive on-board charger (OBC) and DC-to-DC
- Industrial programmable logic controllers (PLCs)
