概览
优势和特点
- 指令周期时间：13.3 ns（2.75 V（内部）、75 MIPS持续性能）
- 单循环指令执行
- 借助3总线架构，可在每个指令周期中实现双取操作数
- 兼容ADSP-2100系列代码（便利使用代数句法），支持扩展指令集
- 单循环内容切换
- 256K字节片内RAM，配置为48K字片内程序存储器RAM和56K字片内数据存储器RAM
- 双用途程序存储器可同时存储指令和数据
- 独立ALU、乘法器/累加器和柱式移位器计算单元
产品详情

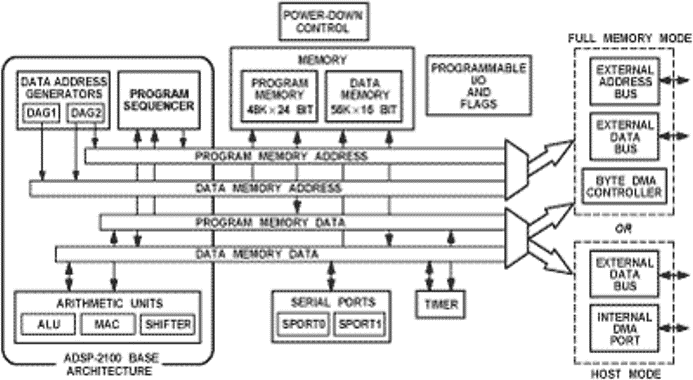

ADSP-2188M是一款单芯片微电脑产品，针对数字信号处理(DSP)以及其他高速数字处理应用进行了优化。ADSP-2188M将ADSP-2100系列的基础架构（三个计算单元、数据地址生成器和一个程序序列器）与两个串行端口、一个16位内部DMA端口、一个字节DMA端口、一个可编程计时器、标志I/O、广泛的中断功能及片内程序和数据存储器完美地结合起来。
ADSP-2188M集成256K字节的片内存储器，其配置为48K字（24位）程序RAM和56K字（16位）数据RAM。同时配有省电电路，以满足采用电池供电的便携式设备的低功耗需求。ADSP-2188M采用100引脚LQFP封装。
产品分类
产品生命周期
新设计不推荐使用本产品
表示相关产品已过时，ADI公司不再推荐新设计使用。
评估套件 (1)
参考资料
-
EE-68: JTAG 仿真技术参考 (Rev. 10)5/11/2009PDF306 kB
-
AN-227: Digital Control System Design with the ADSP-2100 Family4/4/2008PDF
-
EE-32: Language Extensions: Memory Storage Types, ASM & Inline Constructs3/8/2008PDF89 kB
-
EE-35: Troubleshooting your ADSP-218x EZ-ICE10/26/2007PDF23 kB
-
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev. 1)2/15/2005PDF90 kB
-
EE-249: Implementing Software Overlays on ADSP-218x DSPs with VisualDSP++® (Rev. 1)10/12/2004PDF60 kB
-
• EE-249 Software Code
ZIP -
EE-227: CAN Configuration Procedure for ADSP-21992 DSPs (Rev. 1)1/26/2004PDF176 kB
-
EE-226: ADSP-2191 DSP Host Port Booting (Rev. 1)1/26/2004PDF490 kB
-
• EE-226 Software Code
ZIP -
EE-164: Advanced EPROM Boot and No-boot Scenarios with ADSP-219x DSPs5/2/2003PDF284 kB
-
• EE-164 Software Code
ZIP -
EE-188: Using C To Implement Interrupt-Driven Systems On ADSP-219x DSPs5/2/2003PDF64 K
-
AN-524: ADV601/ADV611 Bin Width Calculation in ADSP-21xx DSP12/27/2002PDF84 kB
-
EE-154: ADSP-2191 Host Port Interface10/14/2002PDF267 kB
-
EE-168: Using Third Overtone Crystals with the ADSP-218x DSP10/14/2002PDF838 kB
-
EE-146: Implementing a Boot Manager for ADSP-218x Family DSPs10/14/2002PDF306 kB
-
EE-128: DSP in C++: Calling Assembly Class Member Functions From C++9/18/2002PDF172 kB
-
EE-145: SPI Booting of the ADSP-2191 using the Atmel AD25020N on an EZ-KIT Lite Evaluation Board9/12/2002PDF570 kB
-
• Associated Reference Code for EE-145
ZIP -
EE-142: Autobuffering, C and FFTs on the ADSP-218x9/12/2002PDF151 kB
-
• Associated Reference Code for EE-142
ZIP -
AN-334: 数字信号处理技术 (Rev. 0)9/12/2002PDF0
-
EE-144: Creating a Master-Slave SPI Interface Between Two ADSP-2191 DSPs9/12/2002PDF237 kB
-
• Associated reference code for EE-144
ZIP -
EE-139: Interfacing the ADSP-2191 to an AD7476 via the SPI Port9/12/2002PDF271 kB
-
• Associated reference code for EE-139
ZIP -
EE-152: Using Software Overlays with the ADSP-219x and VisualDSP 2.0++9/11/2002PDF182 kB
-
• EE-152 Software Code
ZIP -
EE-133: Converting From Legacy Architecture Files To Linker Description Files for the ADSP-218x9/11/2002PDF267 kB
-
EE-131: Booting the ADSP-2191/95/96 DSPs9/11/2002PDF272 kB
-
EE-130: Making Fast Transition from ADSP-21xx to ADSP-219x9/11/2002PDF243 kB
-
EE-129: ADSP-2192 Interprocessor Communication9/11/2002PDF237 kB
-
EE-125: ADSP-218x Embedded System Software Management and In-System-Programming (ISP)9/11/2002PDF33 kB
-
• Associated DSP source code and schematics
ZIP -
EE-124: Booting up the ADSP-21929/11/2002PDF243 kB
-
EE-123: An Overview of the ADSP-219x Pipeline9/11/2002PDF203 kB
-
EE-122: Coding for Performance on the ADSP-219x9/11/2002PDF146 kB
-
EE-121: Porting Code from ADSP-21xx to ADSP-219x9/11/2002PDF235 kB
-
EE-115: ADSP-2189 IDMA Interface to Motorola MC68300 Family of Microprocessors9/11/2002PDF183 kB
-
EE-102: Mode D and ADSP-218x Pin Compatibility - the FAQs9/11/2002PDF194 kB
-
EE-100: ADSP-218x External Overlay Memory9/11/2002PDF204 kB
-
• EE-100 Addendum: PM/DM Overlay and I/O Memory Expansion Board For The ADSP-2181 EZ-Kit Lite
PDF -
EE-96: Interfacing Two AD73311 Codecs to the ADSP-218x9/11/2002PDF203 kB
-
EE-90: Using the 21xx C-FFT Library9/10/2002PDF204 kB
-
EE-82: Using an ADSP-2181 DSP's IO Space to IDMA Boot Another ADSP-21819/10/2002PDF86 kB
-
EE-79: EPROM Booting In Host Mode with 100 Pin 218x Processors9/10/2002PDF241 kB
-
EE-78: BDMA Usage on 100 pin ADSP-218x DSPs Configured for IDMA Use9/10/2002PDF160 kB
-
EE-71: Minimum Rise Time Specs for Critical Interrupt and Clock Signals on the ADSP-21x1/21x59/10/2002PDF186 kB
-
EE-64: Setting Mode Pins on Reset9/10/2002PDF119 kB
-
EE-60: Simulating an RS-232 UART Using the Synchronous Serial Ports on the ADSP-21xx Family DSPs9/9/2002PDF257 kB
-
EE-48: Converting Legacy 21xx Systems To A 218x System Design9/9/2002PDF266 kB
-
EE-39: Interfacing 5V Flash Memory to an ADSP-218x (Byte Programming Algorithm)9/9/2002PDF52 kB
-
EE-38: ADSP-2181 IDMA Port - Cycle Steal Timing9/9/2002PDF74 kB
-
EE-36: ADSP-21xx Interface to the IOM-2 bus9/9/2002PDF46 kB
-
EE-33: Programming The ADSP-21xx Timer In C9/9/2002PDF0 kB
-
• EE-33 Software Code
ZIP -
EE-18: Choosing and Using FFTs for ADSP-21xx9/9/2002PDF16 kB
-
EE-17: ADSP-2187L Memory Organization9/9/2002PDF28 kB
-
EE-12: Interrupts and Programmable Flags on the ADSP-2185/21869/9/2002PDF12 kB
-
EE-11: ADSP-2181 Priority Chain & IDMA Holdoffs9/6/2002PDF66 kB
-
EE-06: ADSP-21xx Serial Port Startup Issues9/6/2002PDF8 kB
-
EE-5: ADSP-218x Full Memory Mode vs. Host Memory Mode9/6/2002PDF134 kB
-
EE-2: Using ADSP-218x I/O Space9/6/2002PDF170 kB
-
EE-158: ADSP-2181 EZ-Kit Lite IDMA to PC Printer Port Interface9/6/2002PDF459 kB
-
EE-156: Support for the H.100 protocol on the ADSP-2191 (Rev. 0.1)9/6/2002PDF184 K
-
EE-153: ADSP-2191 Programmable PLL9/6/2002PDF41 kB
-
EE-110: A Quick Primer on ELF and DWARF File Formats5/17/2000PDF19 kB
-
AN-227: Digital Control System Design with the ADSP-2100 Family1/1/2000PDF671 kB
-
EE-89: Implementing A Software UART on the ADSP-2181 EZ-Kit-Lite1/1/2000PDF235 kB
-
EE-104: Setting Up Streams with the VisualDSP Debugger11/5/1999PDF120 kB
-
• EE-104 Software Code
ZIP -
EE-74: Analog Devices Serial Port Development and Troubleshooting Guide11/4/1999PDF343 kB
-
EE-37: How to Interface an LCD to the 21xx and 2106x Family DSP's9/21/1997PDF19 kB
-
ADSP 21xx Processors: Manuals2/14/2015
-
ADSP-218x DSP Hardware Reference (Rev. 1.0)3/10/2008ZIP2439 kB
-
Documentation Errata
-
Using the ADSP-2100 Family Volume 1 (Rev. 1.0)3/8/2008ZIP4890 kB
-
Using the ADSP-2100 Family Volume 2 (Rev. 1.0)3/8/2008ZIP2219 kB
-
ADSP-218x DSP Instruction Set Reference (Rev. 2.0)3/8/2008PDF5767 kB
-
Documentation Errata
-
VisualDSP++ 3.5 C Compiler and Library Manual for ADSP-218x DSPs (Rev. 4.1)5/13/2011PDF4912 kB
-
VisualDSP++ 3.5 Component Software Engineering User's Guide for 16-Bit Processors (Rev. 1.0)9/8/2006PDF3657 kB
-
VisualDSP++ 3.5 User's Guide for 16-Bit Processors (Rev. 1.0)9/8/2006PDF4355 kB
-
VisualDSP++ 3.5 Assembler and Preprocessor Manual for ADSP-218x and ADSP-219x DSPs (Rev. 1.2)9/8/2006PDF1223 kB
-
VisualDSP++ 3.5 Linker and Utilities Manual for 16-Bit Processors (Rev. 1.0)9/8/2006PDF4739 kB
-
VisualDSP++ 3.5 Kernel VDK User's Guide for 16-Bit Processors (Rev. 1.0)9/8/2006PDF1870 kB
-
VisualDSP++ 3.5 Loader Manual for 16-Bit Processors (Rev. 1.0)9/8/2006PDF2379 kB
-
VisualDSP++ 3.5 C/C++ Compiler and Library Manual for ADSP-219x Processors (Rev. 4.1)9/7/2006PDF3209 kB
-
VisualDSP++ 3.5 Getting Started Guide for 16-Bit Processors (Rev. 1.0)9/16/2004PDF1218 kB
-
Apex-ICE USB Emulator Hardware Installation Guide (Rev. 6.0)3/8/2008PDF605 kB
-
Summit-ICE PCI Emulator Hardware Installation Guide (Rev. 4)3/8/2008PDF508 kB
-
ADSP-218X Family EZ-ICE Hardware Installation Guide (Rev. 1.0)3/8/2008PDF113 kB
-
ADI Complementary Parts Guide - Supervisory Devices and DSP Processors2/12/2015PDF93 K
