概览

优势和特点

  • Triaxial digital gyroscope with digital range scaling
    • ±250°/sec, ±500°/sec, ±1000°/sec settings
    • Axis to axis misalignment: ±0.05°
  • Triaxial digital accelerometer dynamic range: ±18 g minimum
  • Autonomous operation and data collection
    • No external configuration commands required
    • 205 ms typical power-on start-up time
  • Factory calibrated sensitivity, bias, and axial alignment
    • Calibration temperature range: −40°C to +85°C
  • SPI-compatible
    • Optional burst read sequence for fast data transfer
  • Embedded temperature sensor
  • Programmable operation and control
    • Automatic and manual bias correction controls
    • Bartlett window FIR length, number of taps
    • Digital I/O: data ready, alarm indicator, general-purpose
    • Alarms for condition monitoring
    • Optional external sync input clock up to 1.1 kHz
    • Single command self test
  • Power supply voltage range: 3.15 V to 3.45 V
  • 2000 g mechanical shock survivability
  • Operating temperature range: −40°C to +105°C

产品详情

The ADIS16446 iSensor® device is a complete inertial system that includes a triaxial gyroscope, a triaxial accelerometer, and a temperature sensor. Each sensor in the ADIS16446 combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, and alignment.

As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements. The ADIS16446 provides a simple, cost-effective method for integrating accurate multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems.

The serial peripheral interface (SPI) and register structures provide a simple interface for data collection and configuration control. The ADIS16446 has a compatible pinout for systems that currently use other Analog Devices, Inc., inertial measurement unit (IMU) products, such as the ADIS16334, ADIS16485, or ADIS16448.

The ADIS16446 is a 20-lead module that is 24.15 mm × 37.70 mm × 10.80 mm and has a standard connector interface.

APPLICATIONS

  • Platform stabilization and control
  • Navigation
  • Robotics

产品生命周期 icon-recommended 推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

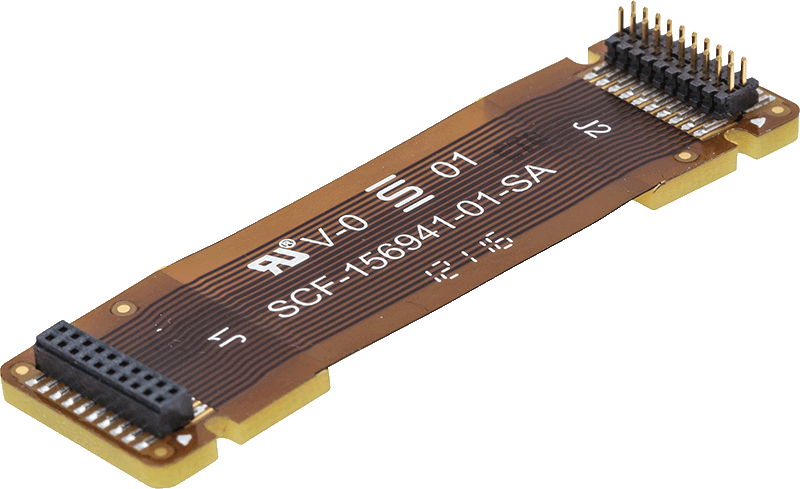

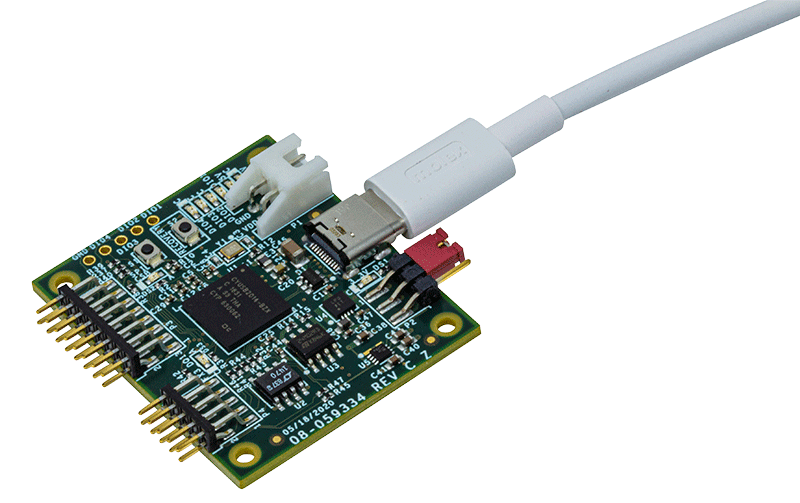

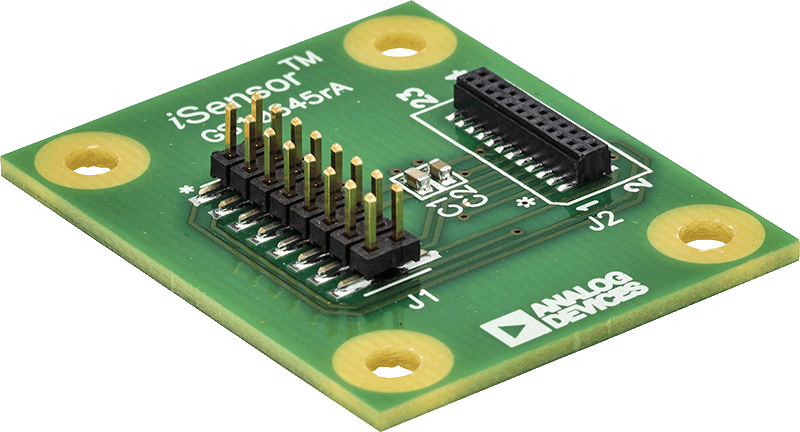

评估套件 (3)
