ADH997S
推荐新设计使用17 GHz to 27 GHz, Variable Gain Amplifier
- 产品模型
- 1

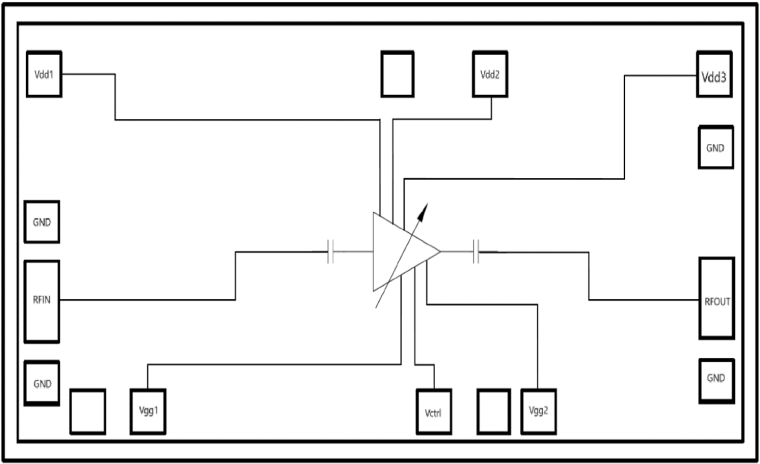

产品详情
- Wide Gain Control Range: 15 dB
- Single Control Voltage
- Output IP3 @ Max Gain: + 31 dBm
- Output P1dB: +24 dBm
- No External Matching
- Die Size: 2.230 mm × 1.050 mm × 0.102 mm
- Screened in accordance with MIL-PRF-38534, Class H
The ADH997S is a GaAs MMIC PHEMT analog variable gain amplifier and/or driver amplifier which operates between 17 GHz and 27 GHz. Ideal for microwave radio applications, the amplifier provides up to 20.5 dB of gain, output P1dB of up to +24 dBm, and up to +31 dBm of output IP3 at maximum gain, while requiring only 170 mA from a +5V supply. A gain control voltage (Vctrl) is provided to allow variable gain control up to 15 dB. Gain flatness is excellent, making the ADH997S ideal for a wide variety of applications.
Applications
- Point-to-Point Radio
- Point-to-Multi-Point Radio
- Test Equipment
- Military & Space
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| HMC7746 | CHIPS OR DIE |
