AD74414H

预发布

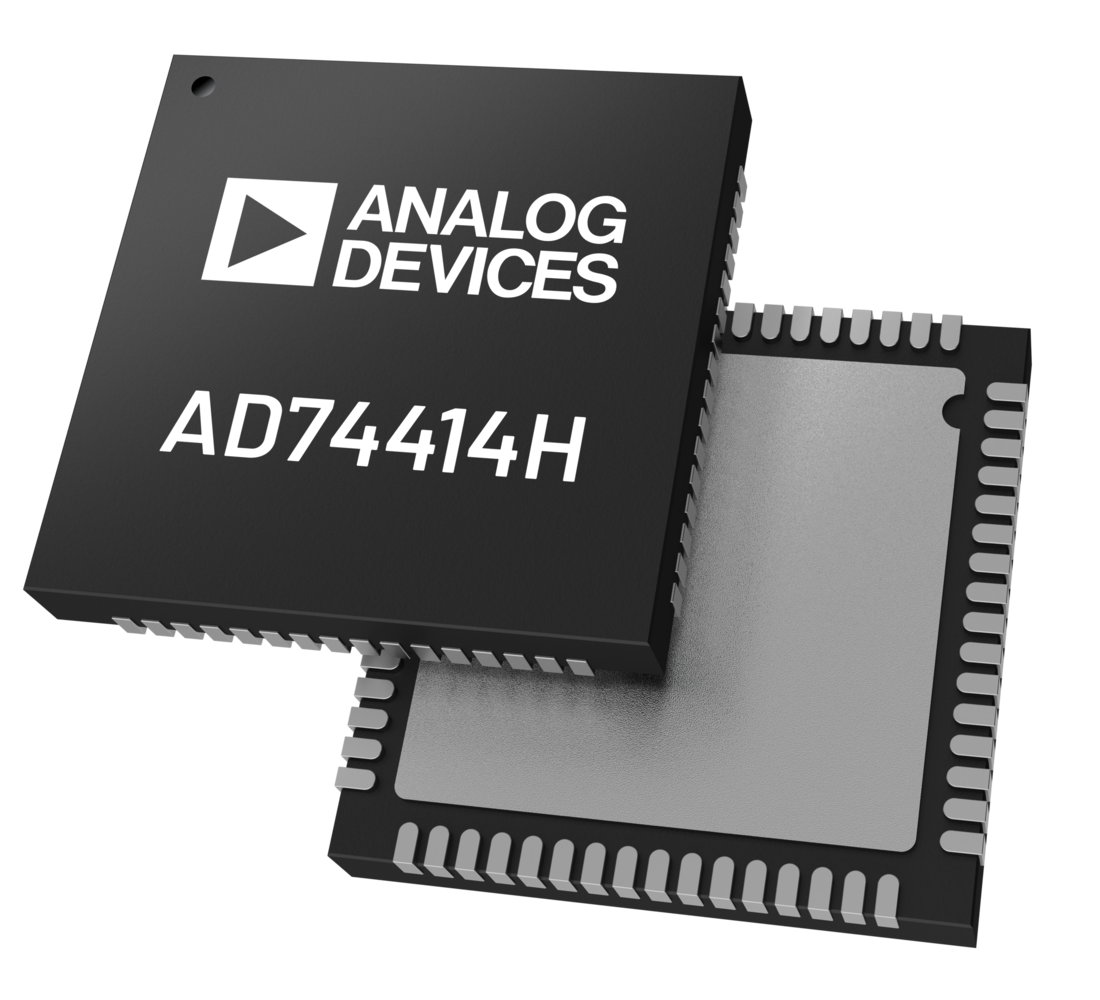

Quad-Channel, Software Configurable Input and Output with HART Modem

数据手册 (Rev. 0) 产品选型表

产品模型: 2

Viewing:

概述

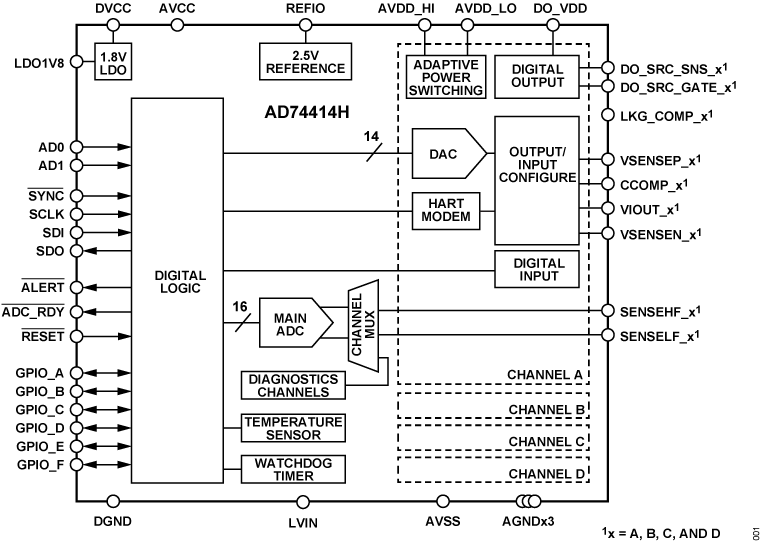

Quad-channel software configurable input and output
Adaptive power switching reduces power dissipation by 40%
Multiple configurable modes to a single pin
- Current input/output
- Digital input/output
Overvoltage tolerant on screw terminal facing pins, powered or unpowered
Auxiliary sense pins
10ppm/°C reference temperature coefficient
16-bit, Σ-∆ ADC with optional 50Hz and 60Hz rejection
14-bit monotonic DAC per channel

Integrated HART^® modem per channel
On-chip diagnostics
- Open-circuit and short-circuit detection
- Voltage channel measurements
- Power supply measurements
Internal temperature sensor, ±5°C accuracy
SPI-compatible
Addressable up to four devices
Watchdog timer
Wide power-supply range
Temperature range: −40°C to +105°C

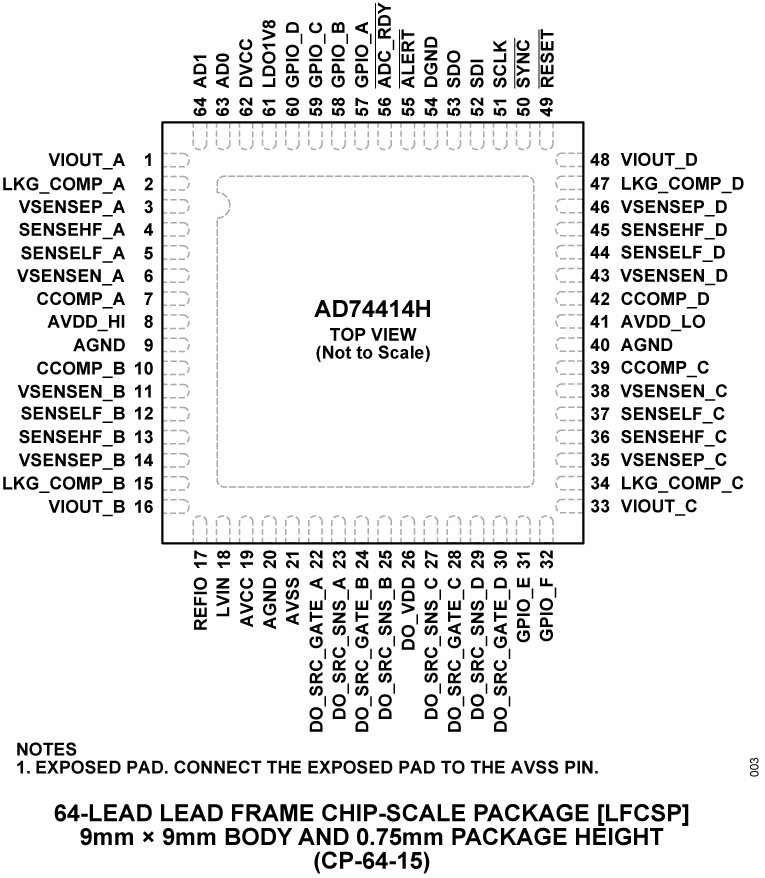

Available in a 64-lead LFCSP

产品模型: 2

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
AD74414HBCPZ	64-Lead LFCSP (9mm x 9mm w/ EP)	Material Declaration Reliability Report 资料包	Ultra Librarian SamacSys
AD74414HBCPZ-RL7	64-Lead LFCSP (9mm x 9mm w/ EP)	Material Declaration Reliability Report 资料包	Ultra Librarian SamacSys

这是最新版本的数据手册

软件资源

Evaluation Software 2

AD74414H MBED example code 新

AD74414H No-Os 新

硬件生态系统

部分模型	产品周期	描述
基准电压源 1
ADR4525	量产	超低噪声、高精度2.5V基准电压源
开关稳压器和控制器 2
MAX17691A	量产	4.2V–60V、无光耦、隔离反激转换器，集成FET
MAX17691B	量产	4.2V–60V、无光耦、隔离反激转换器，集成FET

工具及仿真模型

IBIS 模型 1

AD74414H IBIS Model

评估套件

Evaluating the AD74414H Quad-Channel, Software Configurable Input and Output with HART Modem

立即购买更多内容

特性和优点

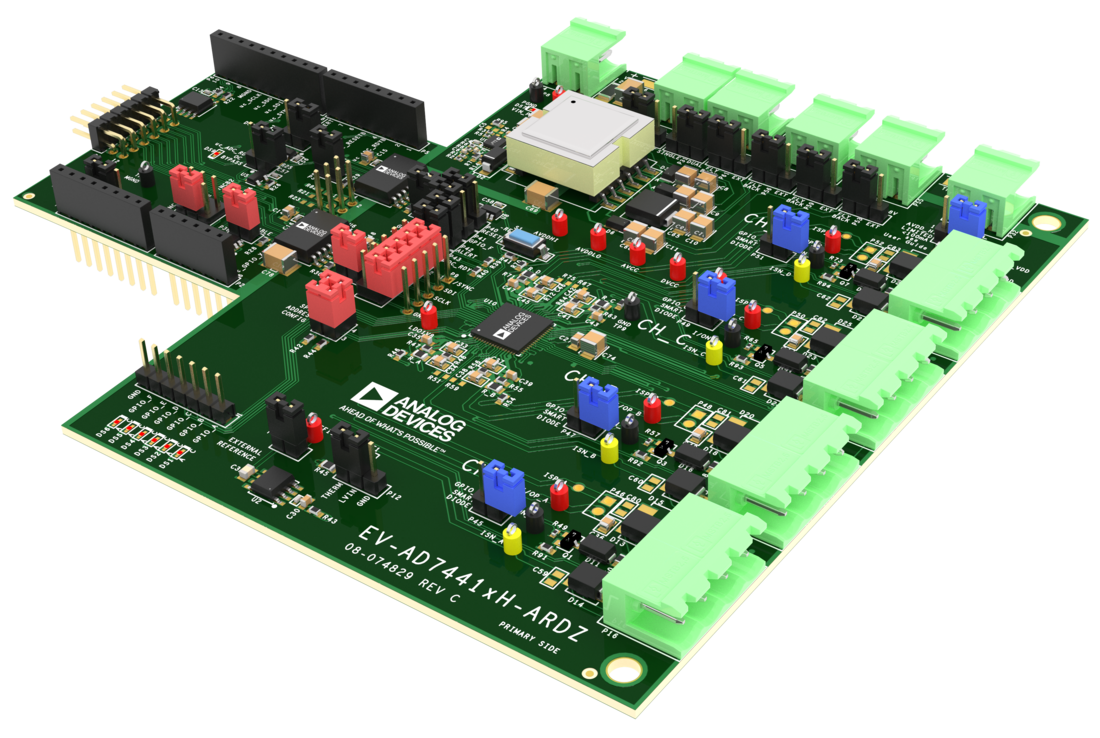

Fully-featured evaluation board for the AD74414H
Custom power solution utilizing the MAX17691B and a multiwinding transformer
System isolation provided by the ADuM341E and ADuM342E
On-board 2.5V ADR4525 reference
SPI-compatible Arduino and PMOD connector
PC-based Analysis | Control | Evaluation (ACE ) Software for control
Adaptive power switching (APS) calculator (no physical board required)
No-OS MBED drivers providing example code in C

产品详情

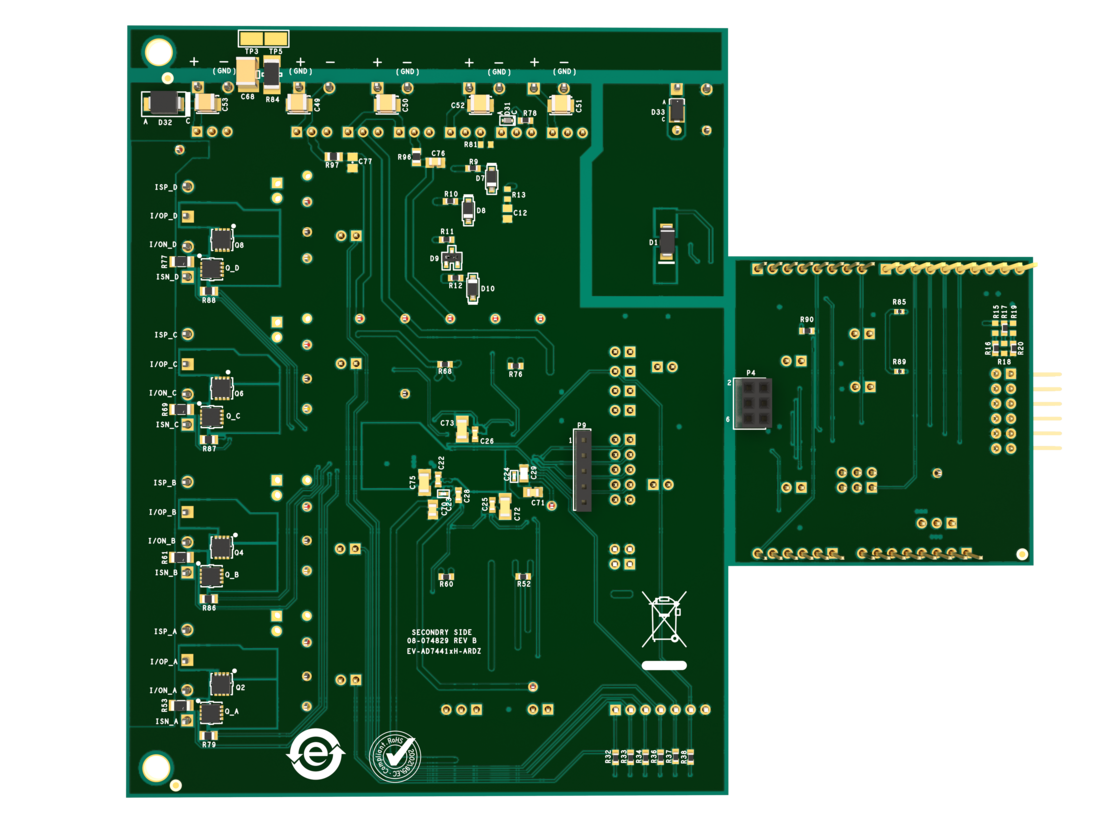

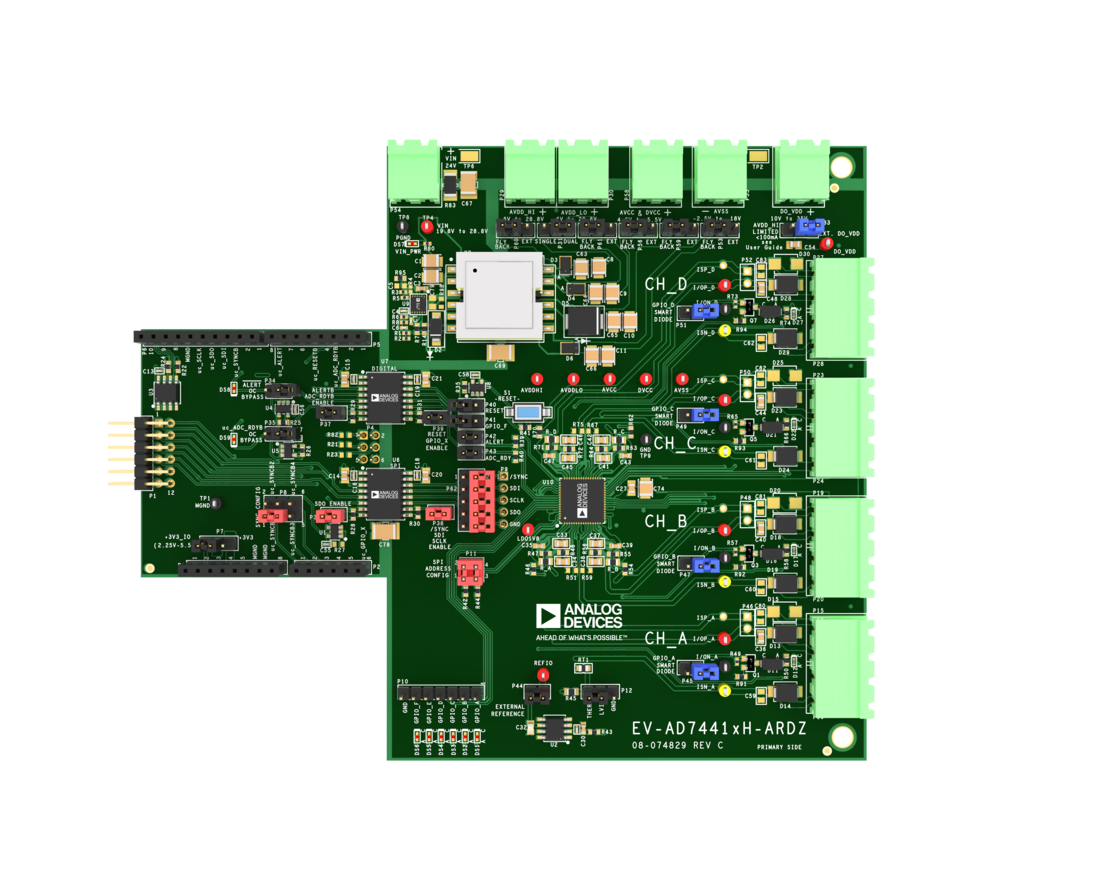

The EV-AD74414H-ARDZ is a fully-featured evaluation board that a user can use to evaluate the features of the AD74414H as a full system solution. Power is provided by the MAX17691B isolated flyback solution. Digital channels isolation utilizes the ADuM341E and ADuM342E isolators.

The AD74414H is a quad-channel, software configurable, and input and output device. The device has functionality for current input/output and digital input/output measurements integrated into a single-chip solution with a compatible serial-peripheral interface (SPI).

A user can control the EV-AD74414H-ARDZ by a system demonstration platform (SDP) board. The EVAL-SDP-CK1Z (SDP-K1) board allows the EV-AD74414H-ARDZ to be controlled by the USB port of a PC using the AD74414H ACE Software. The EVAD74414H- ARDZ requires an operating supply of 24V. The PC provides power to the EVAL-SDP-CK1Z (SDP-K1) board.

Full specifications on the AD74414H, MAX17691B, ADuM341E, and ADuM342E are available in the corresponding data sheets available from Analog Devices, Inc., and must be consulted with this user guide when using the EV-AD74414H-ARDZ board.
