AD3532R

推荐用于新设计

16-Channel, 16-Bit Voltage Output DAC, On-Chip Reference, SPI

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 16-bit resolution, ±3 LSB16 INL, ±1 LSB16 DNL
  • TUE: ±0.22% of FSR maximum
  • Offset error: ±1.5mV maximum
  • Gain error: ±0.26% of FSR maximum
  • Guaranteed sourcing current of 50mA
  • Ultra-low headroom: 25mV at 20mA load
  • 2.5V internal voltage reference, 5ppm/°C, typical
  • 62nV/√Hz noise spectral density (external reference)
  • 115nV/√Hz noise spectral density (internal reference)
  • Output voltage, current, and die temperature monitors
  • 50MHz SPI write and read
  • 2.7V to 5.5V power supply range
  • 1.2V or 1.8V compatible digital interface
  • Operating temperature range: −40°C to +125°C
  • Small package: 4mm × 4mm, 32-lead lead frame chip scale package (LFCSP)

The AD3532R is a 16-channel, 16-bit, buffered voltage output, digital- to-analog converter (DAC) that includes software-programmable gain controls that result in full-scale output spans of 2.5V or 5V for reference voltages of 2.5V. The device operates from single, 2.7V to 5.5V supply ranges and are guaranteed monotonic by design. The AD3532R also offers a 2.5V, 5ppm/°C internal reference that is disabled by default.

The device includes integrated multiplexers that allow monitoring of output voltages, currents, and internal die temperature. The AD3532R is available in a 4mm × 4mm, 32-lead lead frame chip scale package (LFCSP) package. The device incorporates power on reset (POR) circuits that ensure that the DAC outputs power up to and present at 32kΩ to ground until a valid write is executed. The DAC also contains power-down modes that reduce the current consumption down to1.34mA, typical.

The serial peripheral interface (SPI) and MICROWIRE®-compatible, 4-wire serial interface operates on logic levels as low as 1.08V up to 1.98V and clock rates up to 50MHz.

APPLICATIONS

  • Optical transceivers
  • Test and measurement
  • Industrial automation
  • Data acquisition systems
AD3532R
16-Channel, 16-Bit Voltage Output DAC, On-Chip Reference, SPI

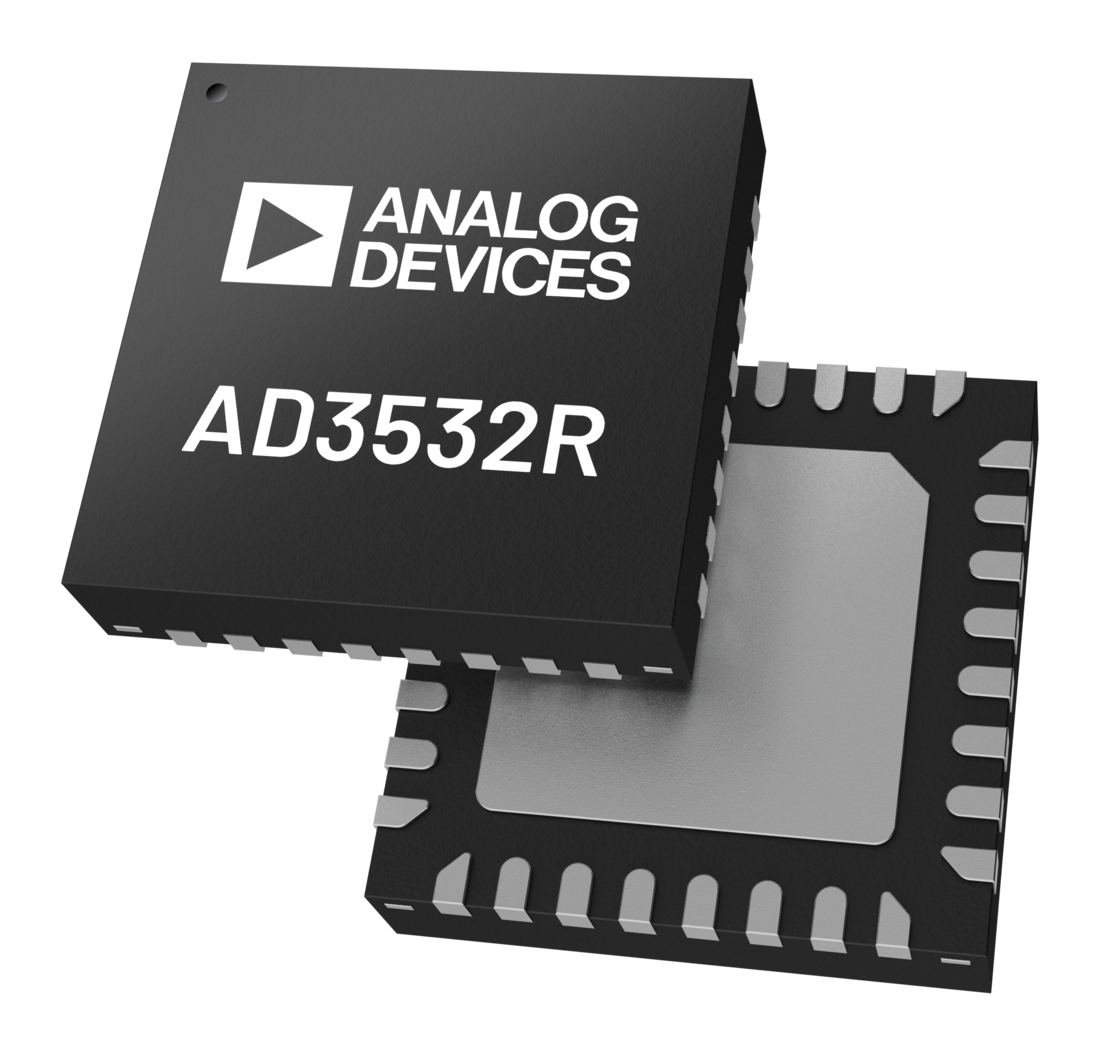

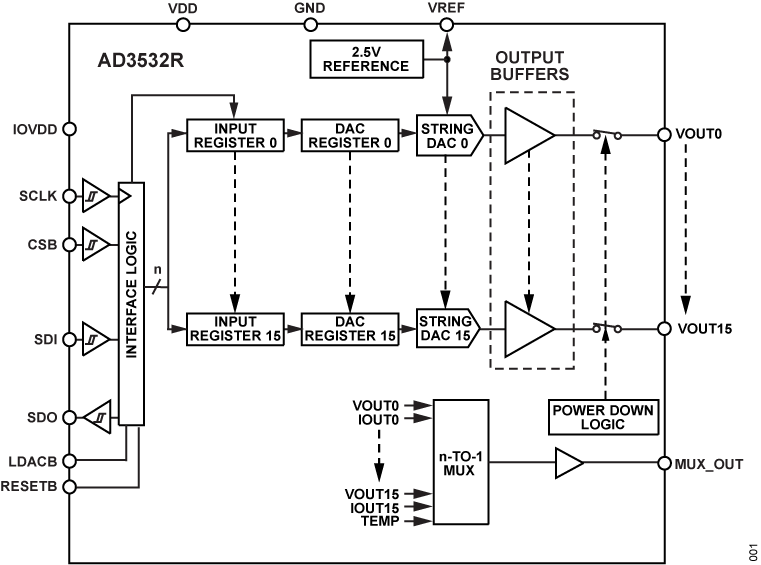

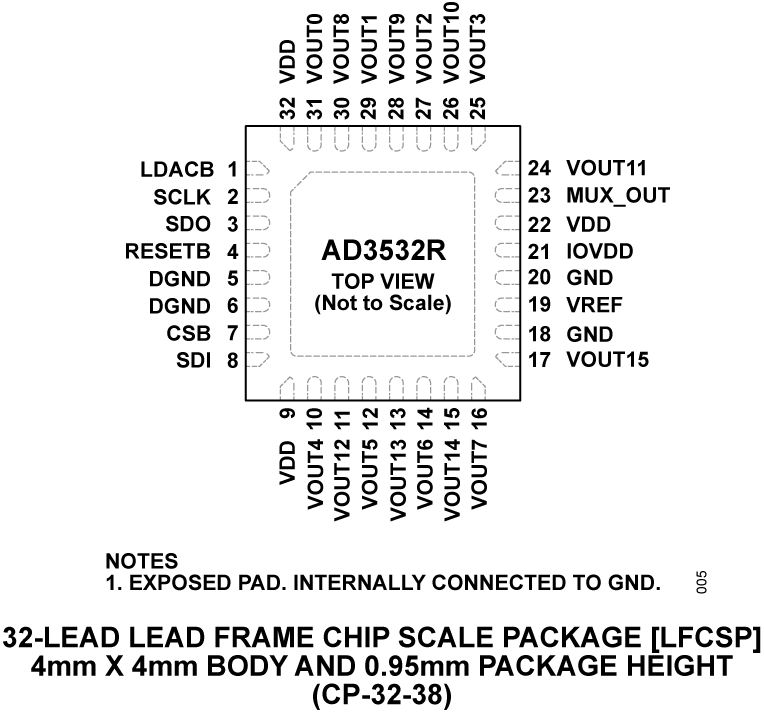

AD3532R Functional Block Diagram AD3532R Pin Configuration AD3532R Chip Illustration
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

用户手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

器件驱动器 5

工具及仿真模型

LTspice 2

LTspice中提供以下器件型号：

  • AD3532R

IBIS 模型 1

LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
EVAL-AD3532R

Evaluation Board for the AD3532R 16-Bit, 16-Channel, Voltage Output DAC

立即购买 更多内容

特性和优点

  • Full featured evaluation board for the AD3532R
  • Various link options
  • PC control when used in conjunction with the Analog Devices, Inc., SDP board

产品详情

This user guide details the operation of the EVAL-AD3532RARDZ for the AD3532R 16-bit, 16-channel, voltage output, digital-to-analog converter (DAC).

The EVAL-AD3532RARDZ allows users to quickly prototype the AD3532R circuits and reduce design time. The AD3532R operates from single 2.7V to 5.5V supply ranges. The AD3532R incorporates internal 2.5V references to give output voltages of 2.5V or 5V. The EVAL-AD3532RARDZ also incorporates an additional on-board voltage reference, the ADR4525.

The EVAL-AD3532RARDZ interfaces to the USB port of a PC via a system demonstration platform (SDP-K1) board. The Analysis |Control | Evaluation (ACE) software is available for download from the EVAL-AD3532RARDZ product page to use with the evaluation board to allow the user to program the AD3532R device. A peripheral module interface (PMOD) connection is also available to allow the connection of microcontrollers to the evaluation board without the SDP-K1 board. When a microcontroller is used through the PMOD connection, the SDP-K1 board must be disconnected, and the user is unable to operate the ACE software.

The EVAL-AD3532RARDZ is compatible with Analog Devices, Inc., SDP-K1 board, which must be purchased separately.

For full details, see the AD3532R data sheet, which must be used in conjunction with this user guide when using the EVALAD3532RARDZ.
EVAL-AD3532R
Evaluation Board for the AD3532R 16-Bit, 16-Channel, Voltage Output DAC

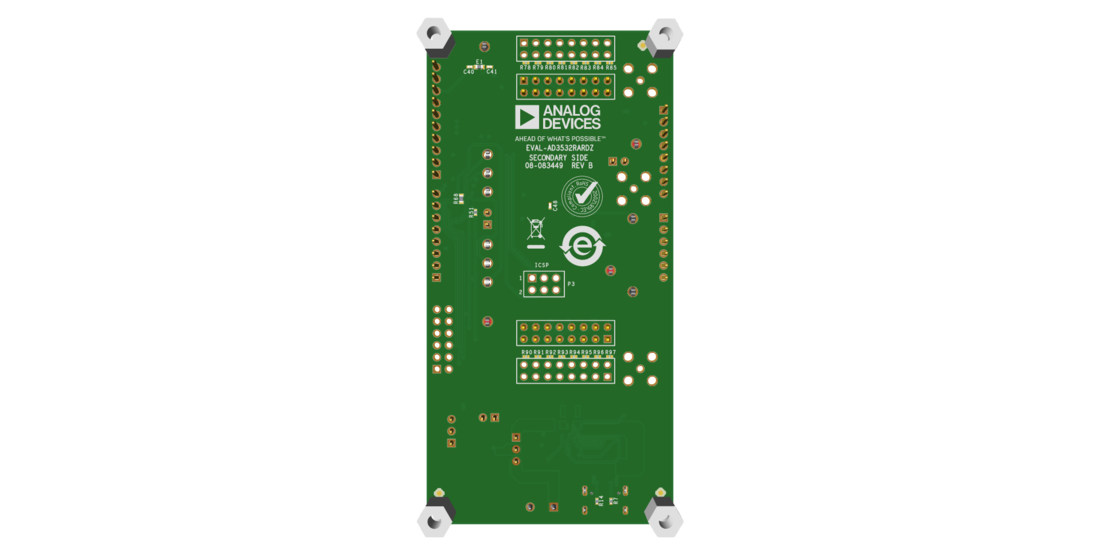

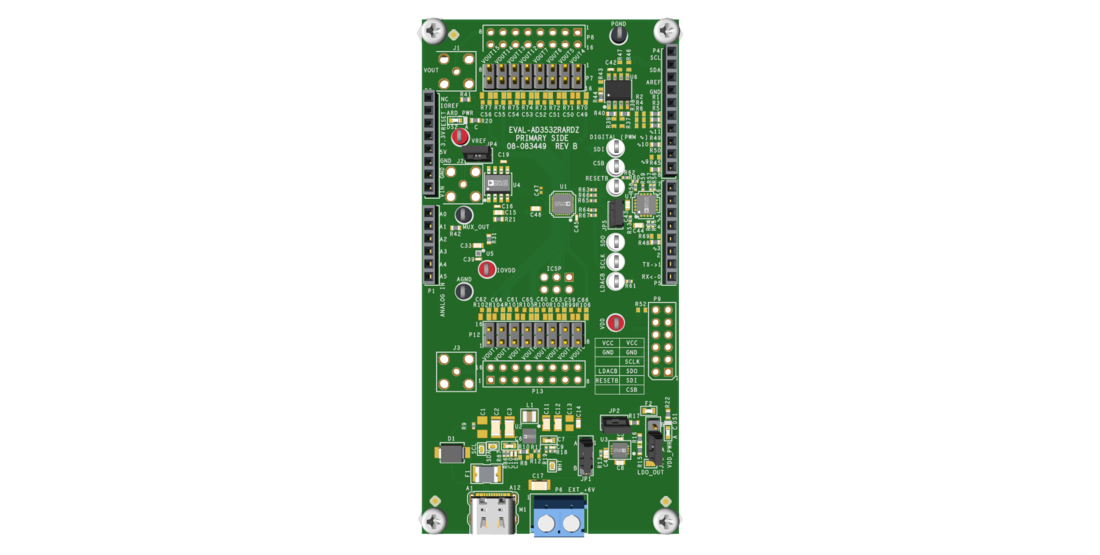

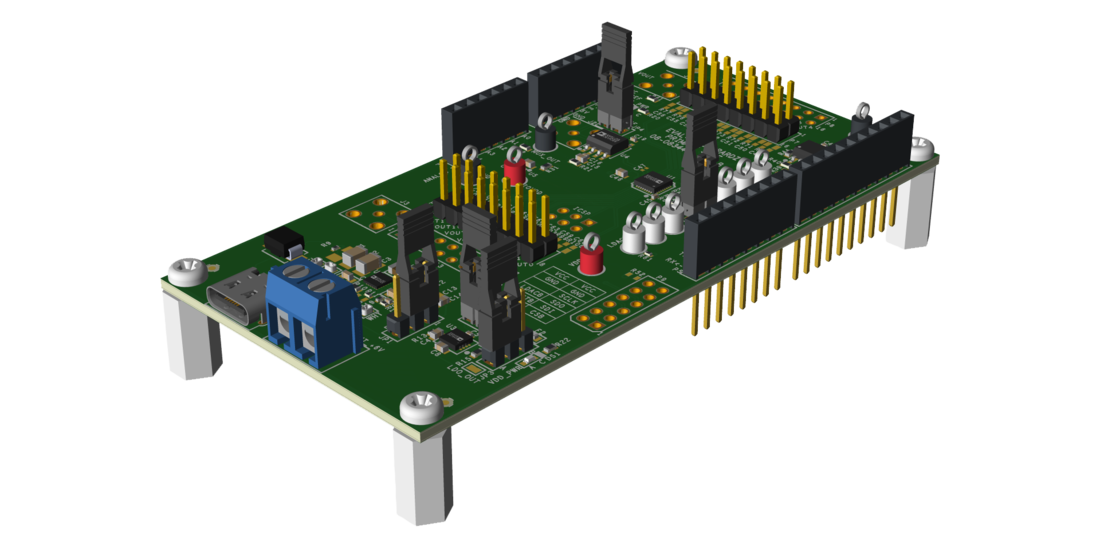

EVAL-AD3532RARDZ Evaluation Board Angle View EVAL-AD3532RARDZ Evaluation Board Top View EVAL-AD3532RARDZ Evaluation Board Bottom View
