RH101A

PRODUCTION

Operational Amplifier

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: Starting From $423.29

Viewing:

Overview

mV Max V_OS
Average Temperature Coefficient: 15µV/°C
Input Offset Current: 20nA Max
Input Bias Current: 100nA Max
CMMR and PSRR: 80dB
Wide Supply Range: ±15V to ±20V
Input Supply Current: 2.5 mA

Radiation Performance

Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD- 883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- Displacement Damage Defect (DDD) up to 1E12 Neutrons/cm²

Part Models: 2
1ku List Price: Starting From $423.29

Documentation

Data Sheet 1

RH101A: Operational Amplifier Data Sheet 11/09/2007

Controlled Drawings 2

Generic RH Spec Document (Rev.A) 01/15/2025

Generic RH Dice Spec Document (Rev.A) 05/08/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH101ADICE	DIE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

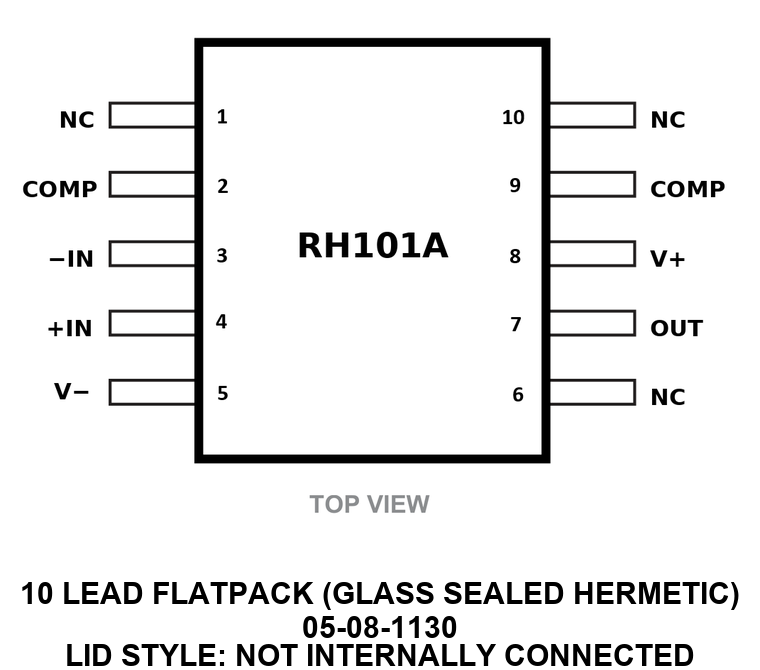

RH101AW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
