製品概要

機能と利点

  • Guaranteed Performance Over –55 to +125°C
    • Input Offset Voltage: 550µV
    • Low Offset Voltage Drift: 2.5µV/°C
    • Low Offset Current: 20nA
  • Gain Bandwidth Product: 500kHz
  • Minimum Slew Rate: 0.2V/mS
  • Low Current Noise: Typically 0.07pA/√Hz
  • Maximum Supply Current: 0.7mA per Amplifier
  • Supply Voltage ±22V (Absolute Maximum)
  • Differential Input Voltage ±30V (Absolute Maximum)
  • Single Supply Operation

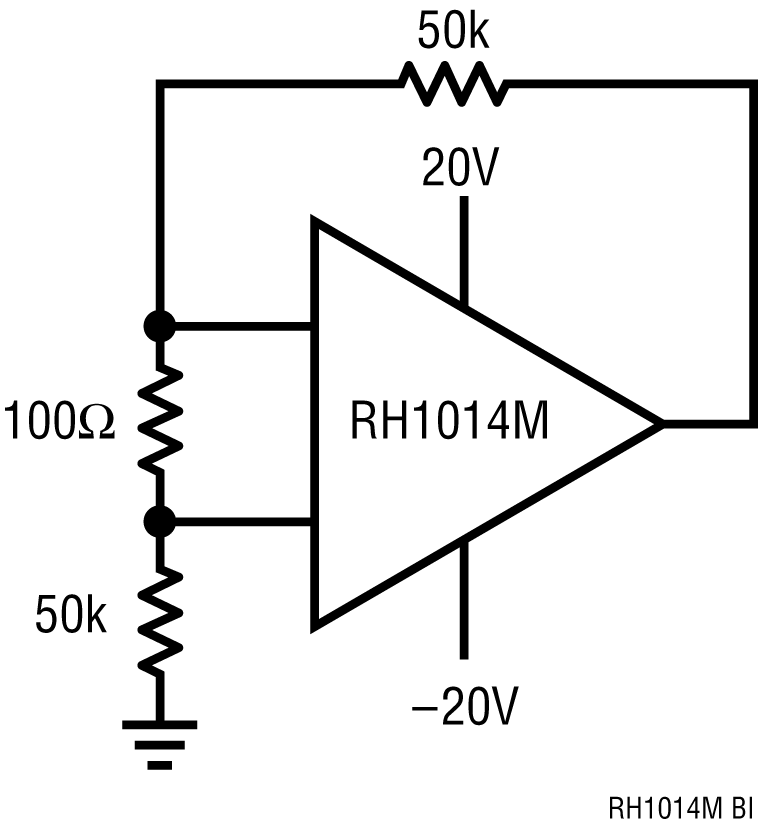

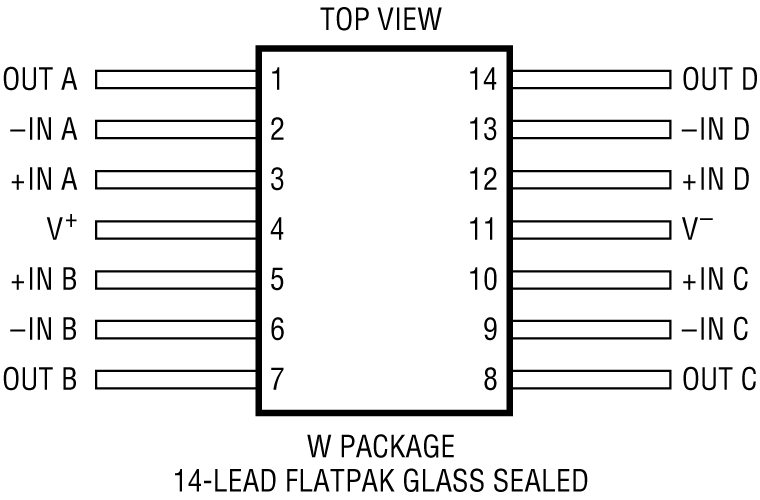

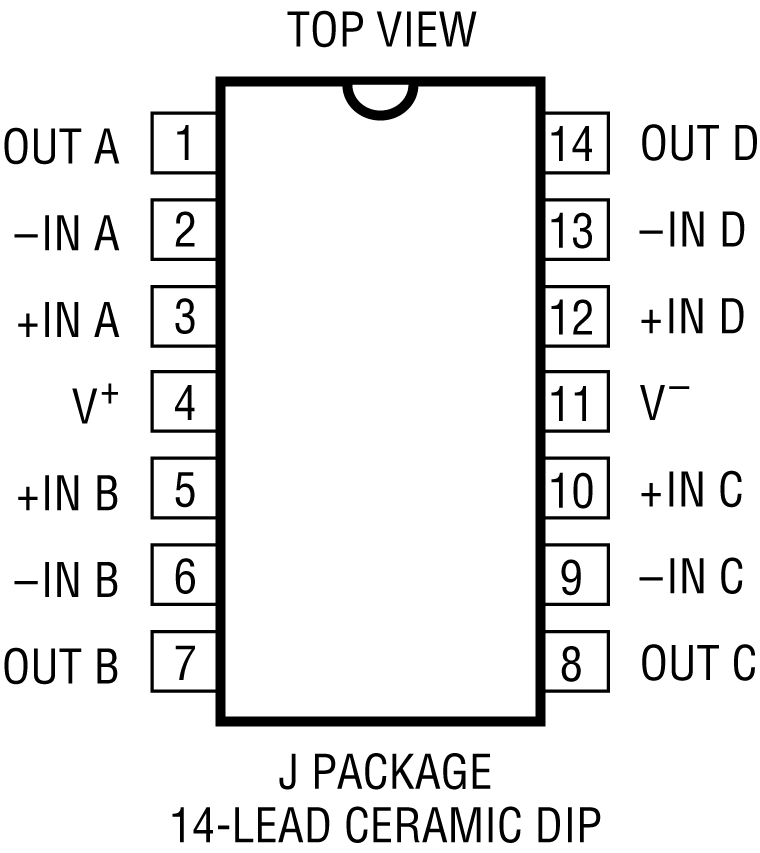

  • Available in CERPAC and Ceramic DIP

Radiation Performance

  • Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
    • 200kRad (Si), per condition A at 50Rads(Si)/sec
    • 50kRad (Si), per condition D at 10mRads(Si)/sec
    • ELDRS Pass 50kRad(Si)
  • Please Also Refer to RH1013 Web Page for Radiation Reports

製品概要

The RH1014M is the first precision quad operational amplifier which directly upgrades designs in the industry standard 8-pin DIP LM124/LM148/OP-11/5156 pin configuration. Low offset voltage (300µV max), low drift (≤2.5µV/°C), low offset current (≤1.5nA), and high gain (1.2 million min) combine to make the RH1014M four truly precision amplifiers in one package.

The wafer lots are processed to Analog Devices’ in-house Class S flow to yield circuits usable in stringent military applications.

Applications

  • Precision Instrumentation Amplifiers
  • Strain Gauge Signal Conditioners
  • Thermocouple Amplifiers
  • 4mA to 20mA Current Loop Transmitters
  • Multiple Limit Threshold Detection
  • Active Filters
  • Multiple Gain Blocks
