QSH4218
新規設計に推奨NEMA 17 stepper motor 27Ncm, 1A
- 製品モデル
- 6
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- NEMA 17 mounting configuration
- Flange max. 42.3mm * 42.3mm
- Step angle: 1.8˚
- Optimized for microstep operation
- Optimum fit for TMC262/236/TMC246 based driver circuits
- 4 Wire connection
- CE approved
- Variants with encoder: 10000 lines/ 40000 counts

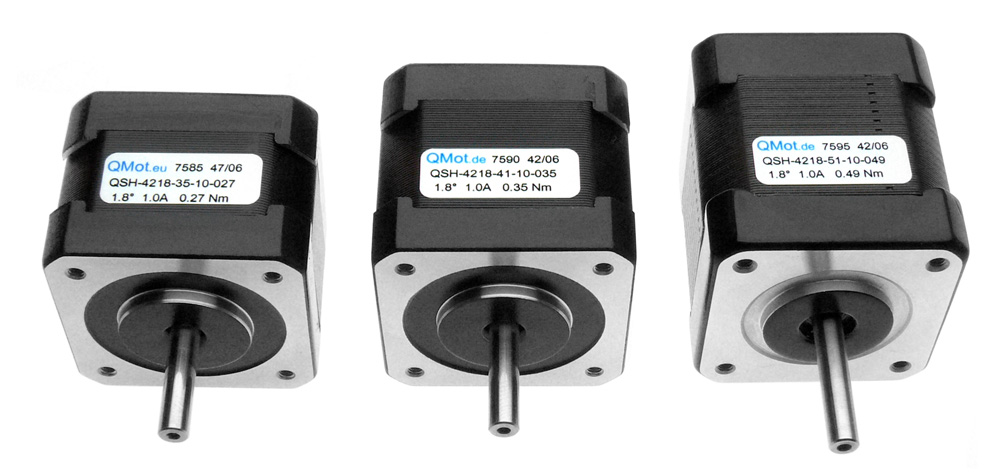

NEMA17 (42mm) 2-phase stepper motor optimized for microstepping and give a good fit to the ADI TRINAMIC family of motor controllers and drivers. They can be used in very space critical applications and allow high RPM due to their low back EMF.
Variants include a small size optical incremental encoder kit. It comes with a resolution of 10000 lines (40000 counts). ADI Trinamic’s stepper motors are quality motors for universal use. They feature a long life due to ball bearings and no wearing out parts.
Technical Details
QSH4218-35-10-027 | QSH4218-41-10-035 | QSH4218-51-10-049 | QSH4218-47-28-040 | |
Status | Active | Active | Active | Active |
Flange NEMA | 17 | 17 | 17 | 17 |
Flange | 42mm | 42mm | 42mm | 42mm |
Holding Torque | 27Ncm | 35Ncm | 49Ncm | 40Ncm |
Phase Current | 1.00A | 1.00A | 1.00A | 2.80A |
Full Steps | 200 | 200 | 200 | 200 |
Width | 42mm | 42mm | 42mm | 42mm |
Height | 42mm | 42mm | 42mm | 42mm |
Length | 35mm | 41mm | 51mm | 47mm |
Weight | 220g | 280g | 350g | 350g |
ドキュメント
パッケージ外形図 6
Analog Dialogue 1
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
QSH4218-35-10-027 | N/A | ||
QSH4218-35-10-027-10K | N/A | ||
QSH4218-41-10-035 | N/A | ||
QSH4218-47-28-040 | N/A | ||
QSH4218-51-10-049 | N/A | ||
QSH4218-51-10-049-10K | N/A |
これは最新改訂バージョンのデータシートです。
