OP11S
製造中Aerospace Quad Matched 741-Type Op Amp
- 製品モデル
 - 2
 - 1Ku当たりの価格
 - 最低価格:$53.11

        Viewing:


    製品情報
  |
  |
The OP11 provides four matched 741-type operational amplifiers in a single 14-lead DIP. The OP11 is pin compatible with the LM148 amplifier. The amplifier is matched for common-mode rejection ratio and offset voltage, which is very important in designing instrumentation amplifiers. In addition, the amplifier is designed to have equal positive-going and negative-going slew rates.
ドキュメント
高レベル放射線レポート 1

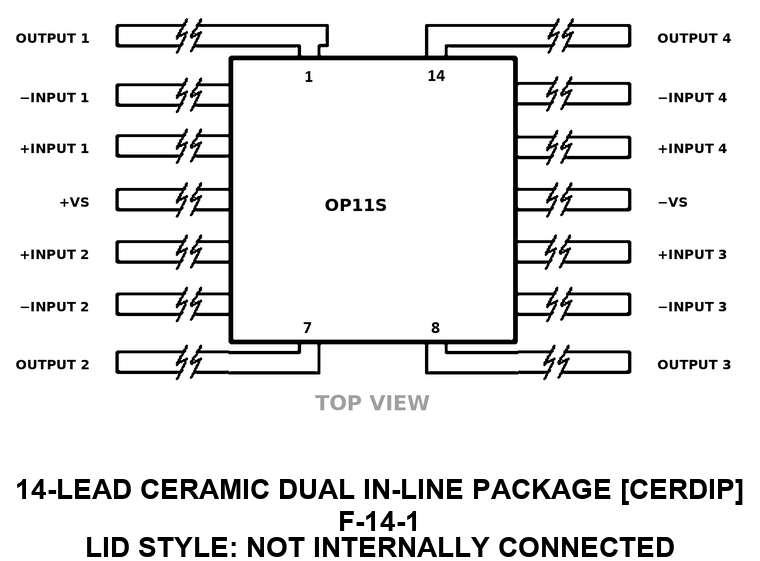

| 製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| 5962-8980101VDA | 14-Lead CerDIP | ||
| OP110000C | CHIPS OR DIE |
| 製品モデル | 製品ライフサイクル | PCN |
|---|---|---|
|
                                                            12 11, 2018 - 18_0189 OP11S Aerospace Class S Models Change In Wafer Diameter  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
| OP110000C | 製造中 | |
|
                                                            7 30, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
| OP110000C | 製造中 | |
|
                                                            11 18, 2015 - 15_0219 Laser Marking Standardization for Aerospace Packages  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
| OP110000C | 製造中 | |
|
                                                            10 2, 2013 - 13_0163 Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
|
                                                            11 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
|
                                                            11 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
|
                                                            11 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
|
                                                            9 21, 2009 - 09_0188 Change of Bottom Brand from Ink to Laser for Aerospace Cerpak Packages  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
|
                                                            2 9, 2009 - 08_0073 Change of Seal Glass Material for Cerdip & Cerpak Packages  |
                                                    ||
| 5962-8980101VDA | 製造中 | |
これは最新改訂バージョンのデータシートです。
