製造中30A,1.5 MHz, 2.7V to 16V, Step-Down Switching Regulator
Shrink you power designs with Industry’s Smallest 30A switching regulator with 70% smaller package footprint
- 製品モデル
- 2
- 1Ku当たりの価格
- 最低価格：$2.57
Viewing:
製品の詳細
- High Power Density with Low Component Count
- Compact 2.52mm x 4.89mm, 45-Bump, WLP Package
- Internal Compensation
- Single Supply Operation with Integrated LDO for Bias Generation
- Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.5V to 5.8V Output Voltage Range
- 500kHz to 1.5MHz Configurable Switching Frequency
- -40°C to +125°C Junction Temperature Range
- Three Programming Pins to Select Different Configurations
- Optimized Performance and Efficiency
- 91.2% Peak Efficiency with VDDH = 12V, VOUT = 1.2V, and fSW = 500kHz
- AMS to Improve Load Transient
- Selectable DCM to Improve Light Load Efficiency
- Differential Remote Sense
The MAX16731 is a fully integrated, highly efficient, step-down DC-DC switching regulator. The regulator is able to operate from 2.7V to 16V input supplies, and the output can be adjusted from 0.5V to 5.8V, delivering up to 30A of load current.
The switching frequency of the device can be configured from 500kHz to 1.5MHz and can optimize the design in terms of size and performance.
The MAX16731 utilizes fixed frequency, current-mode control with internal compensation. The IC features advanced modulation scheme (AMS) and selectable discontinuous current mode (DCM) operation to provide improved performance. Operation settings and configurable features can be selected by three programming pins PGM0, PGM1, and PGM2.
The MAX16731 has an internal 1.8V linear regulator (LDO) output to power the gate drives (VCC) and internal circuitry (AVDD).
The IC has multiple protections, including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure robust design.
The device is available in a compact 2.52mm x 4.89mm WLP package. It supports -40°C to +125°C junction temperature operation.
Applications
- Communications Equipment
- Memory VDDQ
- Networking Equipment
- Point-of-Load Voltage Regulators
- Servers and Storage Equipment
ドキュメント
データシート 1
アプリケーション・ノート 1
| 製品モデル | ピン／パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| MAX16731AWX+ | 45-WLCSP-N/A | ||
| MAX16731AWX+T | 45-WLCSP-N/A |
これは最新改訂バージョンのデータシートです。
ソフトウェア・リソース
必要なソフトウェア／ドライバが見つかりませんか？
ドライバ／ソフトウェアをリクエストツールおよびシミュレーション
EE-Sim® パワー・ツール 1
EE-Sim DC/DC変換ツールは、ユーザの条件を利用し、回路図、市販部品を含む部品表、時間および周波数領域のシミュレーションなどを完備した電源設計を短時間で作成します。SIMPLISおよびSIMetrix SPICEエンジンを使った、スタンドアロンのEE-Sim OASISシミュレータで、カスタマイズした回路図をダウンロードし、さらなる分析が可能です。
EE-Simを今すぐ開始評価用キット

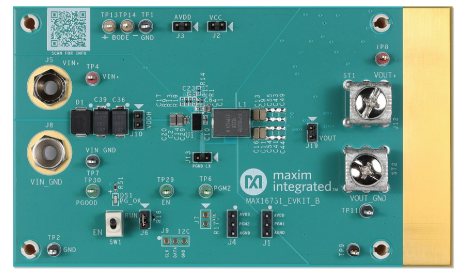

MAX16731の評価用キット
