Power Studio Designer

製品概要

機能と利点

Smart Design Assistance

  • Guided workflows for IC-level power supply design solutions
  • Optimized component recommendations (inductors, capacitors, FETs)
  • Export complete Bill of Materials (BOM) with manufacturer details

Deep Technical Validation

  • Real-time calculations across parameters and components
  • Efficiency optimization for power losses evaluation across the circuit
  • Loop gain, phase margin, and load transient visualization
  • Offline simulation with SIMPLIS and LTspice® support

Seamless Experience

  • Unified ADI part catalog shared across ADI Power Studio tools
  • Built with ADI’s new design system for a modern user experience
  • Design integration with ADI Power Studio Planner
  • Cloud-based for easy access and collaboration

How It Works

ADI Power Studio Designer is the next-generation tool for IC-level power supply design. It provides guided workflows, optimized component recommendations, and real-time performance analysis—helping engineers reach reliable solutions faster. Integrated with existing ADI Power Studio tools, it streamlines the path from device selection to analysis.

Guided Solution Explorer

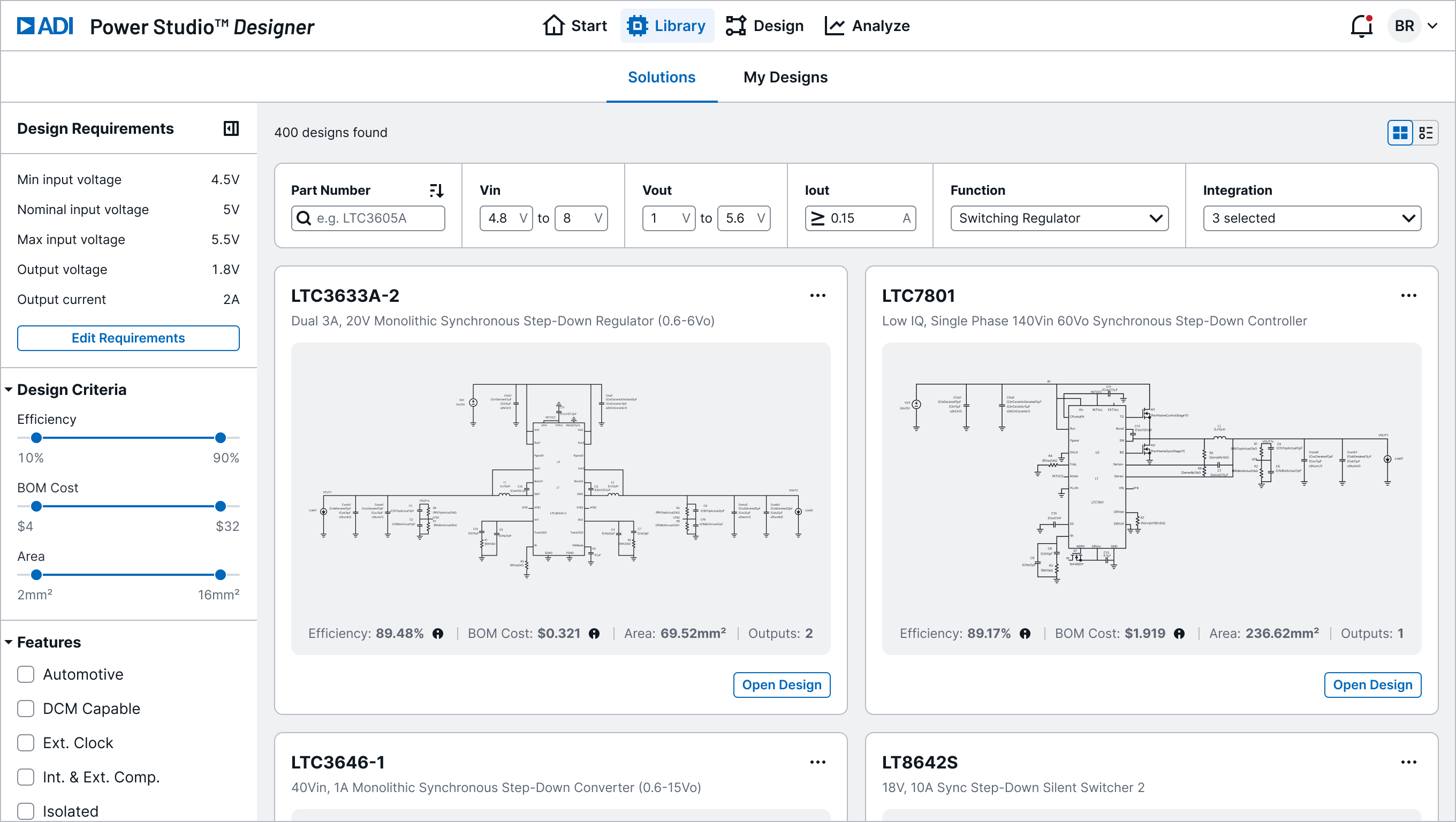

Browse and filter ADI’s unified power supply design IC portfolio with guided workflows. Match requirements to recommended solutions, complete with ready-to-use solutions.

Guided Solution Explorer


Interactive Schematic

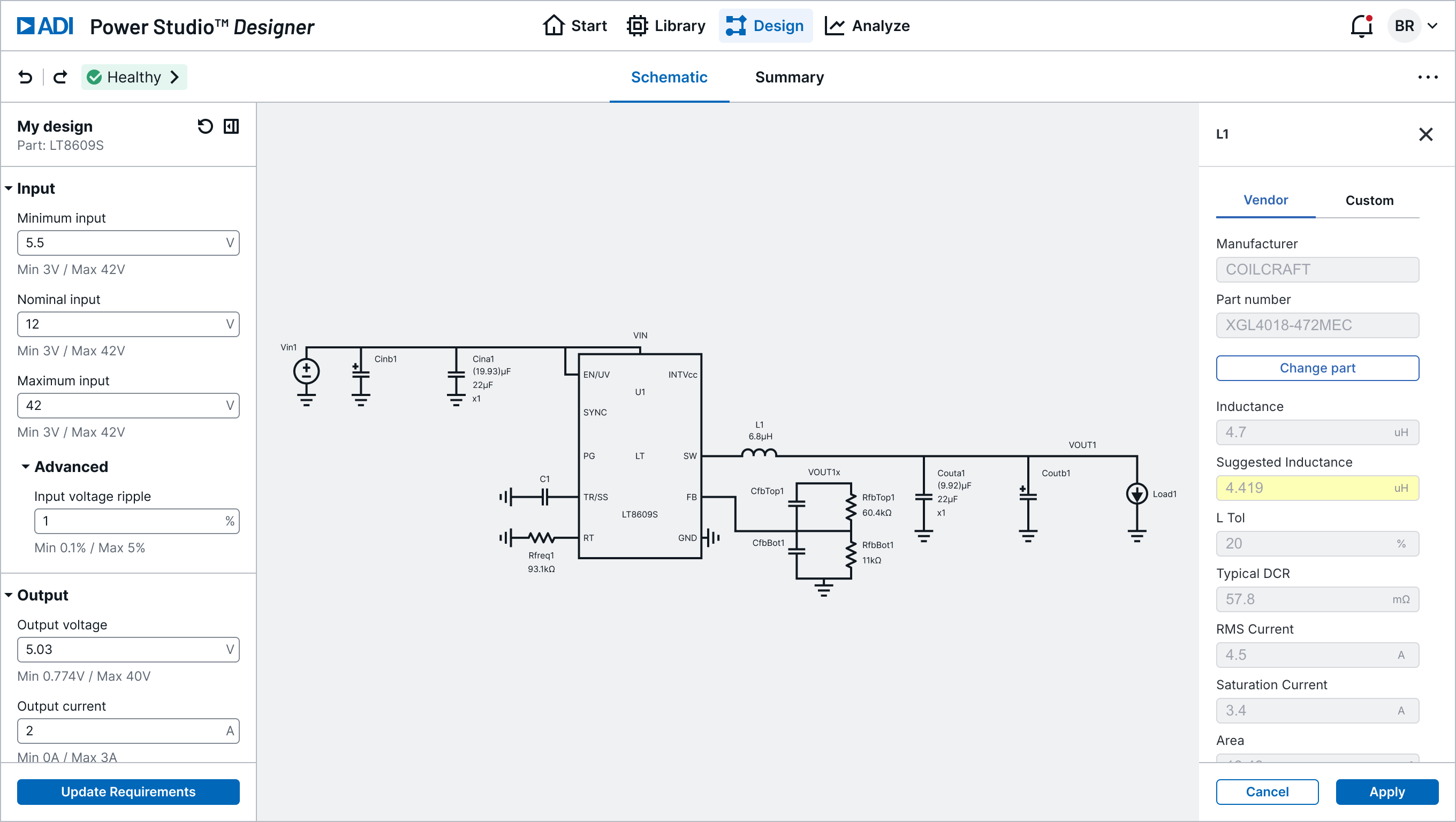

Edit and customize circuit schematics in real time. Parameters, components, and vendor parts update instantly, making design exploration highly visual and interactive.

Interactive Schematic


Efficiency Analysis

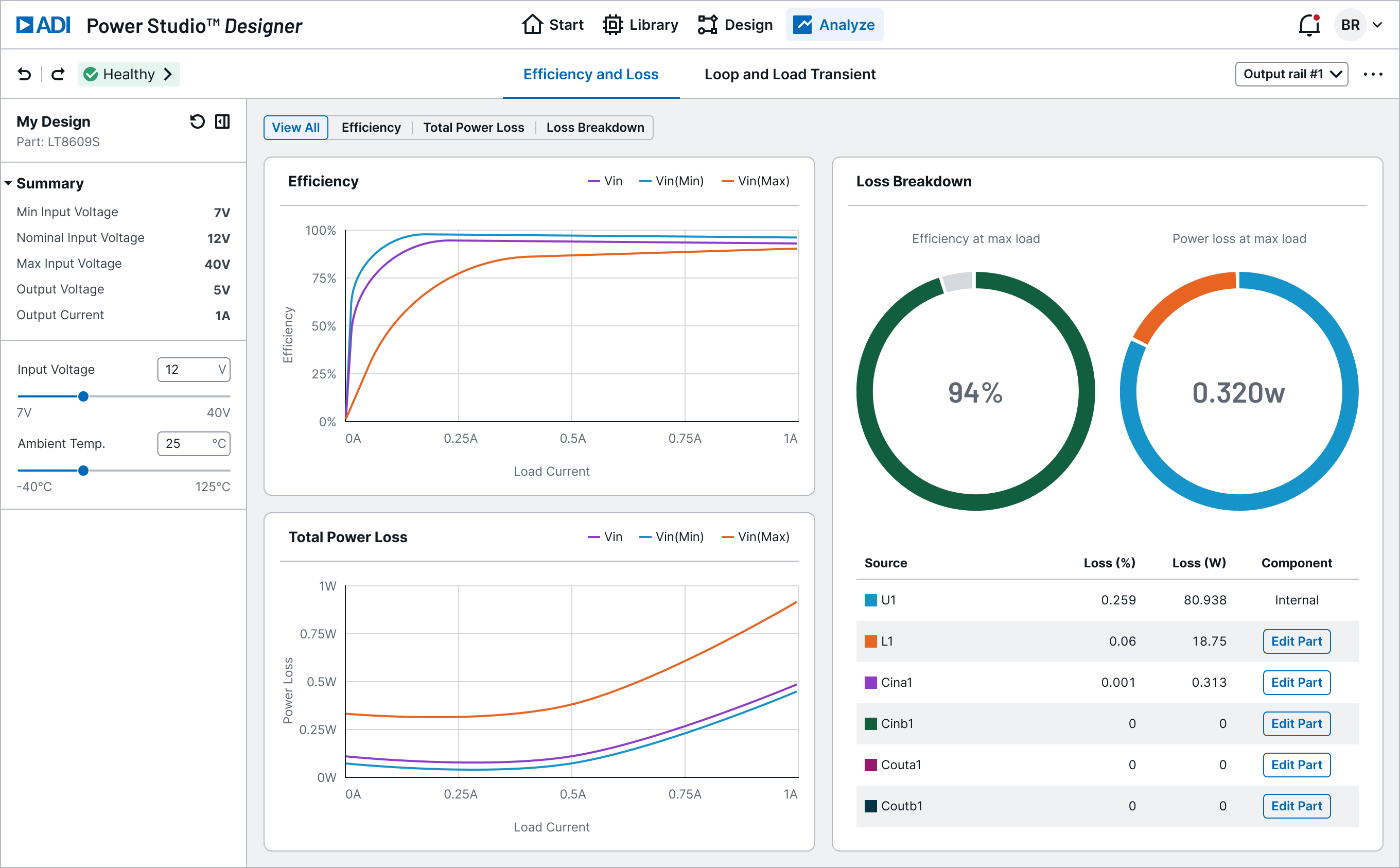

View efficiency, power loss, and loss breakdown at a glance. Charts and visualizations give immediate insight into design trade-offs across operating points.

Efficiency Analysis


Loop and Load Analysis

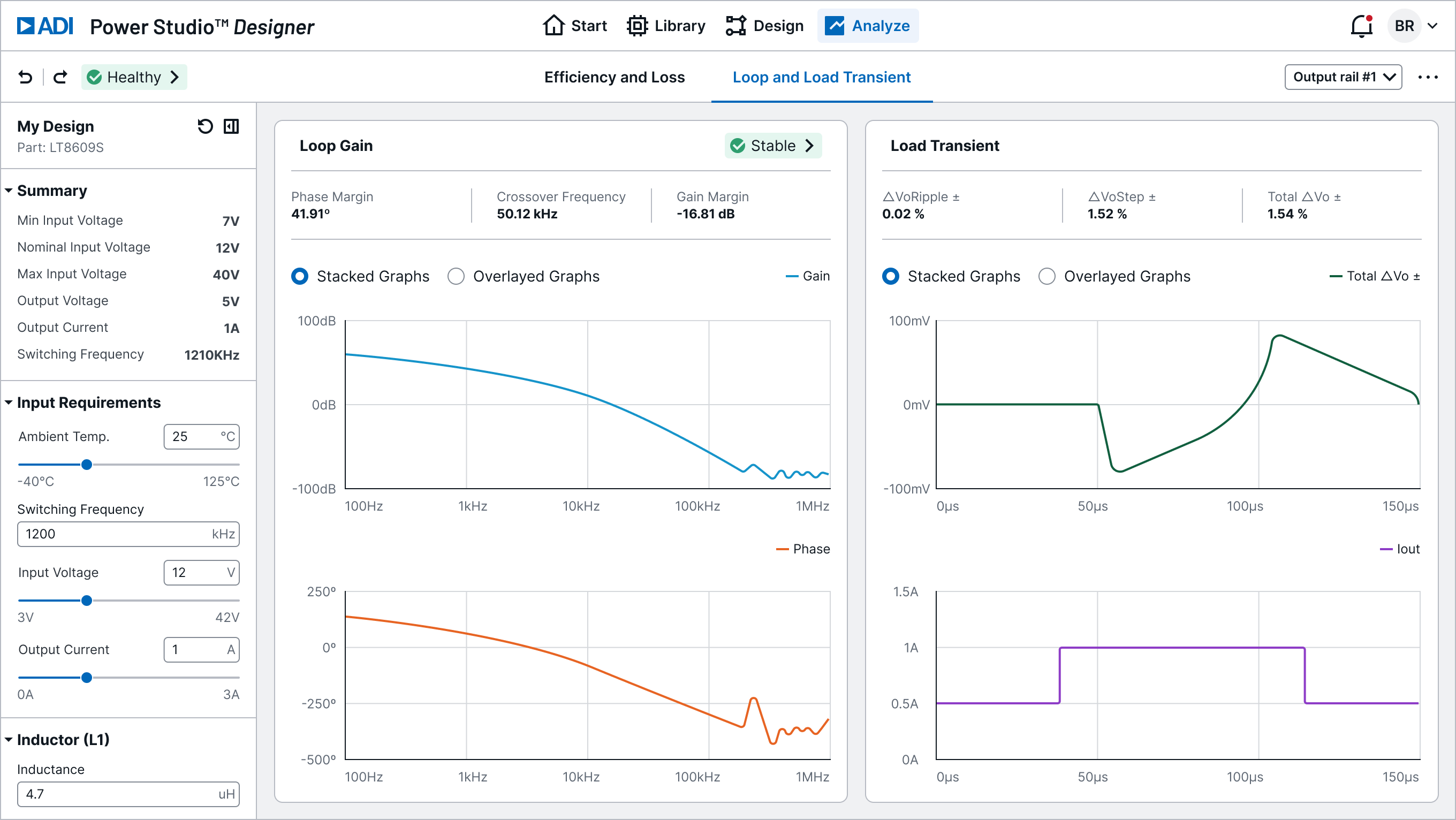

Visualize loop gain, phase margin, and load transients to validate stability and response, ensuring designs meet real-world performance needs.

Loop and Load Analysis



Picture1ADI Power Studio

Have a look at the new tools for your design journey in the new ADI Power Studio suite.

View Power Studio Products

ダウンロードおよび関連ソフトウェア

設計ツール

LTpowerCADおよびLTpowerPlanner

LTpowerCAD®プログラムは、電源設計を大幅に容易にする完全な電源設計ツールです。このプログラムは、アナログ・デバイセズの電源製品を使用するアプリケーションに固有の部品値および性能予測値の推奨値を提供します。また、LTpowerCADプラットフォームには、システムレベルの電源アーキテクチャ設計ツールであるLTpowerPlanner®も含まれています。

LTspice®

LTspice®は、アナログ回路のシミュレーションを容易にする拡張機能とモデルを備えた、高性能なSPICEシミュレーション・ソフトウェア、回路図キャプチャ、および波形ビューアです。LTspiceのダウンロードには、大部分のアナログ・デバイセズのスイッチング・レギュレータ、アンプ、および標準的な回路シミュレーション用のデバイス・ライブラリ用のマクロモデルが含まれています。

システム条件

  • Web-based application (no installation required)
  • Free with ADI account login
  • Integrates with ADI Power Studio Planner, LTspice, and other ADI Power Studio tools for deeper validation
