MAX16173

新規設計に推奨

Ideal Diode Controller with Active Rectifier

Smallest Reverse Polarity Protection Solution for IVI and AVN Applications

利用上の注意

本データシートの英語以外の言語への翻訳はユーザの便宜のために提供されるものであり、リビジョンが古い場合があります。最新の内容については、必ず最新の英語版をご参照ください。

なお、日本語版のデータシートは基本的に「Rev.0」(リビジョン0)で作成されています。そのため、英語版が後に改訂され、複数製品のデータシートがひとつに統一された場合、同じ「Rev.0」の日本語版のデータシートが異なる製品のデータシートとして表示されることがあります。たとえば、「ADM3307E」の場合、日本語データシートをクリックすると「ADM3311E」が表示されます。これは、英語版のデータシートが複数の製品で共有できるように1本化され、「ADM3307E/ADM3310E/ADM3311E/ADM3312E/ADM3315E」(Rev.J)と改訂されたからで、決して誤ってリンクが張られているわけではありません。和文化されたデータシートを少しでも有効に活用していただくためにこのような方法をとっておりますので、ご了解ください。

アナログ・デバイセズ社は、提供する情報が正確で信頼できるものであることを期していますが、その情報の利用に関して、あるいはその利用によって生じる第三者の特許やその他の権利の侵害に関して一切の責任を負いません。また、アナログ・デバイセズ社の特許または特許の権利の使用を明示的または暗示的に許諾するものでもありません。仕様は予告なしに変更する場合があります。本紙記載の商標および登録商標は、各社の所有に属します。

Viewing:

製品情報

  • -42V to +65V Protection Voltage Range
  • 3V to 50V Operating Voltage Range
  • MOSFET Diagnostic Test
  • 3µA (Typ) Shutdown Current
  • Active Rectifier
  • Open-Drain FETOK Output
  • Open-Drain Power Good Output
  • -40°C to +125°C Temperature Range
  • 3mm x 3mm Side Wettable TDFN

The MAX16173 is an ideal diode controller that provides system protection against input transients and reverse-current conditions. The wide operating voltage range of 3V to 50V, combined with 3µA of shutdown current, make the MAX16173 ideal for automotive applications.

The MAX16173 features an integrated boost converter that is capable of driving the gate of the external n-channel power MOSFET 11V above the source during high load operation. Fast pull up and pull down current sources allow rectification of 50kHz to 250kHz AC components riding on the main supply input. A fast-acting comparator allows the MAX16173 to block reverse-current flow by shorting the gate to the source when the input is driven 10mV (typ) lower than the output. In light load applications, the MAX16173 regulates the voltage between the source and drain of the external n-channel MOSFET to 20mV(typ). For high load applications, the gate is driven high to enhance operation mode to minimize power dissipation and to increase system's power efficiency.

During normal operation, the boost converter regulates the gate voltage by monitoring the voltage across CD and DRN. When the voltage across VCD-DRN drops below the 11V(typ) regulated voltage, the boost converter is enabled to maintain the regulation voltage.

The MAX16173 features a diagnostic procedure to check the health of the power MOSFET. An open-drain active-high output (FETOK) deasserts low when the power MOSFET is either open or short. A power good output (PG) asserts high after the completion of power up to indicate the good power-up condition.

The MAX16173 is available in a 3mm x 3mm, 10-pin TDFN package and operates over the automotive temperature range of -40°C to +125°C.

Applications

  • Automotive Power Systems
  • Network Telecom Power Systems
  • RAID Systems
  • Servers

MAX16173
Ideal Diode Controller with Active Rectifier

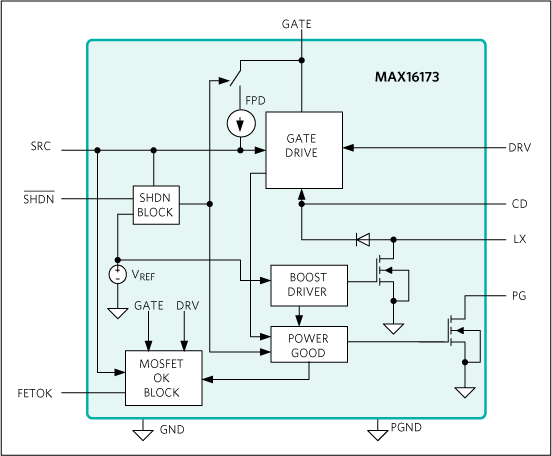

MAX16173: Internal Block Diagram
