製品概要
機能と利点
- -3dB小信号帯域幅:650MHz
- -3dB大信号帯域幅:600MHz
- 高いスルーレート:3300V/μs
- シングルエンドから差動への変換向けに容易に設定可能
- ±0.1dB帯域幅:200MHz
- ユーザが選択可能な利得:+1、+2、-1
- 外付け抵抗不要

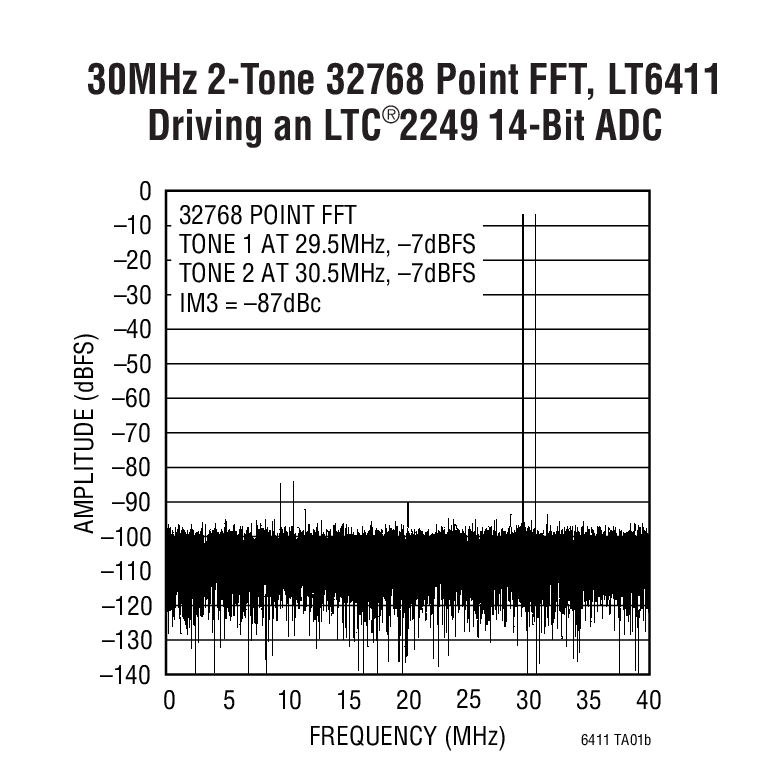

- ADCドライブ時の30MHzでの等価OIP3:46.5dBm
- 2VP-Pの合成差動出力でのIM3:
- 30MHzで-87dBc、70MHzで-83dBc
- 30MHz、2VP-P差動出力でのSFDR:-77dB
- 0.1%へのセトリング・タイム(2Vステップ時):6ns
- 低消費電流:8mA/アンプ
- 微分利得が0.02%、微分位相が0.01°
- チャネル分離:100MHzで50dB
- 広い電源電圧範囲:±2.25V(4.5V)~±6.3V(12.6V)

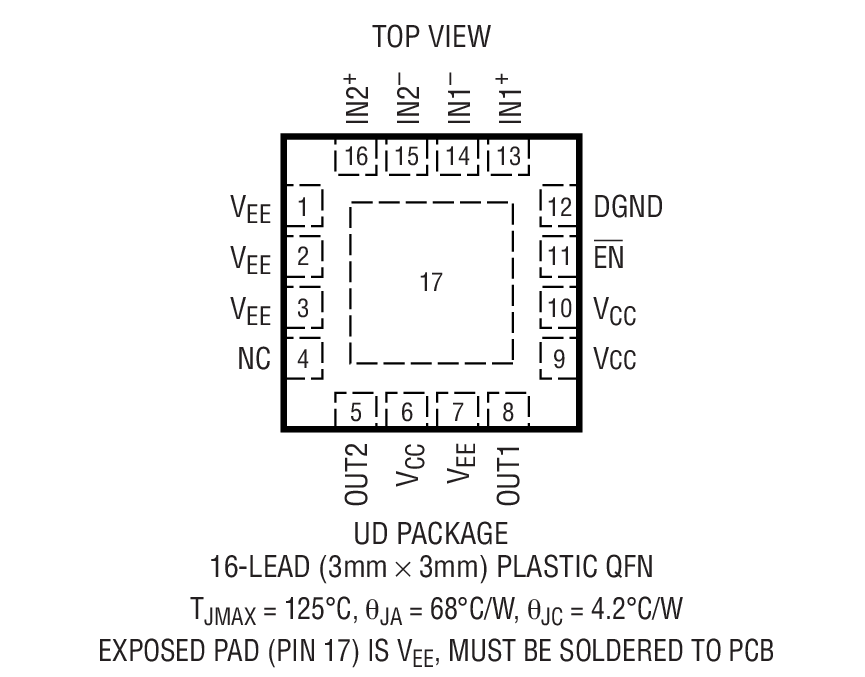

- 3mm×3mm 16ピンQFNパッケージ
製品概要
The LT6411 is a dual amplifier with individually selectable gains of +1, +2 and –1. The amplifiers have excellent distortion performance for driving ADCs as well as excellent bandwidth and slew rate for video, data transmission and other high speed applications. Single-ended to differential conversion with a system gain of 2 is particularly straightforward by configuring one amplifier with a gain of +1 and the other amplifier with a gain of –1. The LT6411 can be used on split supplies as large as ±6V and on a single supply as low as 4.5V.
Each amplifier draws only 8mA of quiescent current when enabled. When disabled, the output pins become high impedance and each amplifier draws less than 350µA.
The LT6411 is manufactured on our proprietary, low voltage, complimentary, bipolar process and is available in the ultra-compact, 3mm × 3mm, 16pin QFN package.
アプリケーション

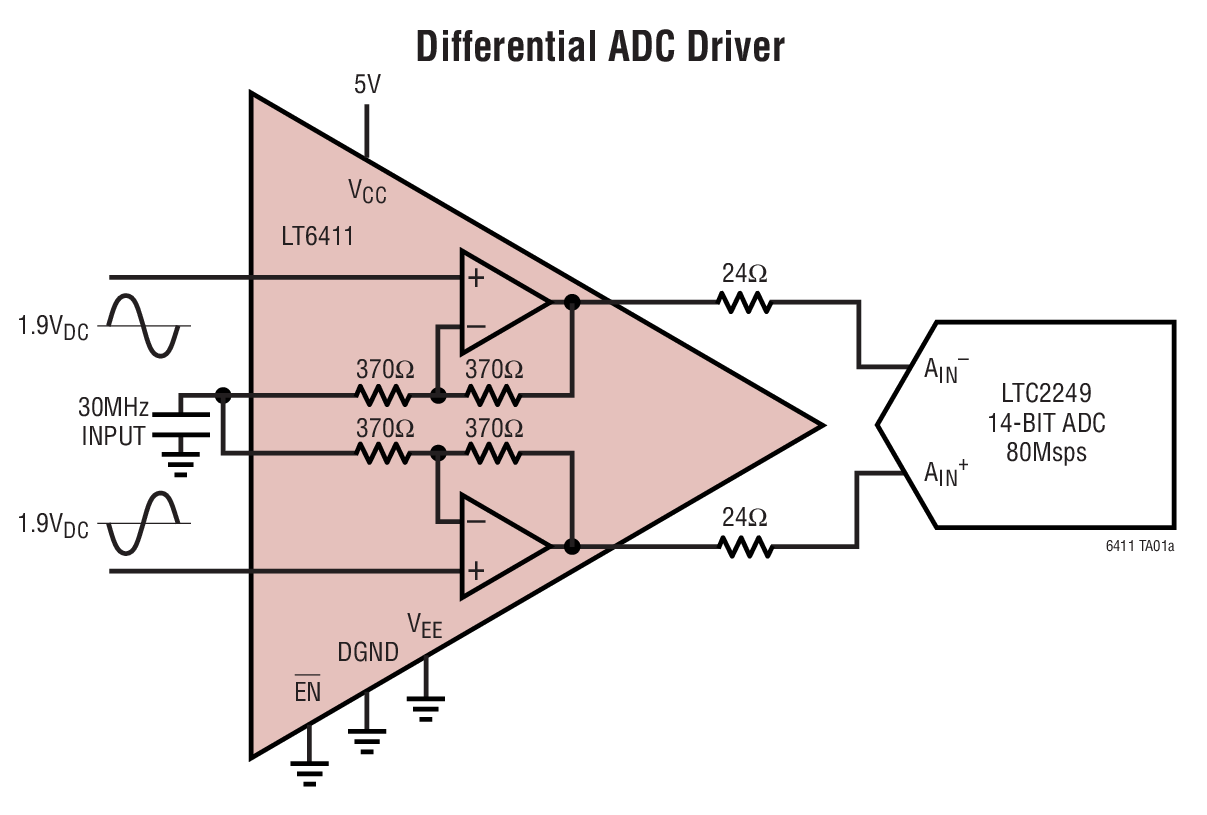

- Differential ADC Driver
- Single-Ended to Differential Conversion
- Differential Video Line Driver
製品ライフサイクル
新規設計にお薦めします
発売済みの製品です。データシートには、最終的な仕様と動作条件がすべて記載されています。新規の設計には、これらの製品の使用を推奨します。

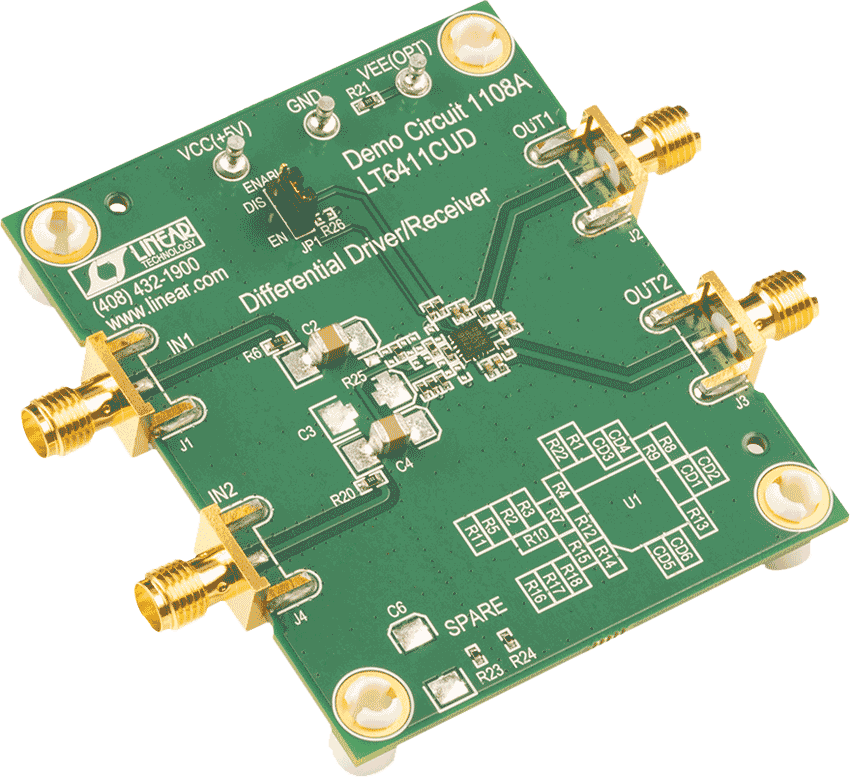

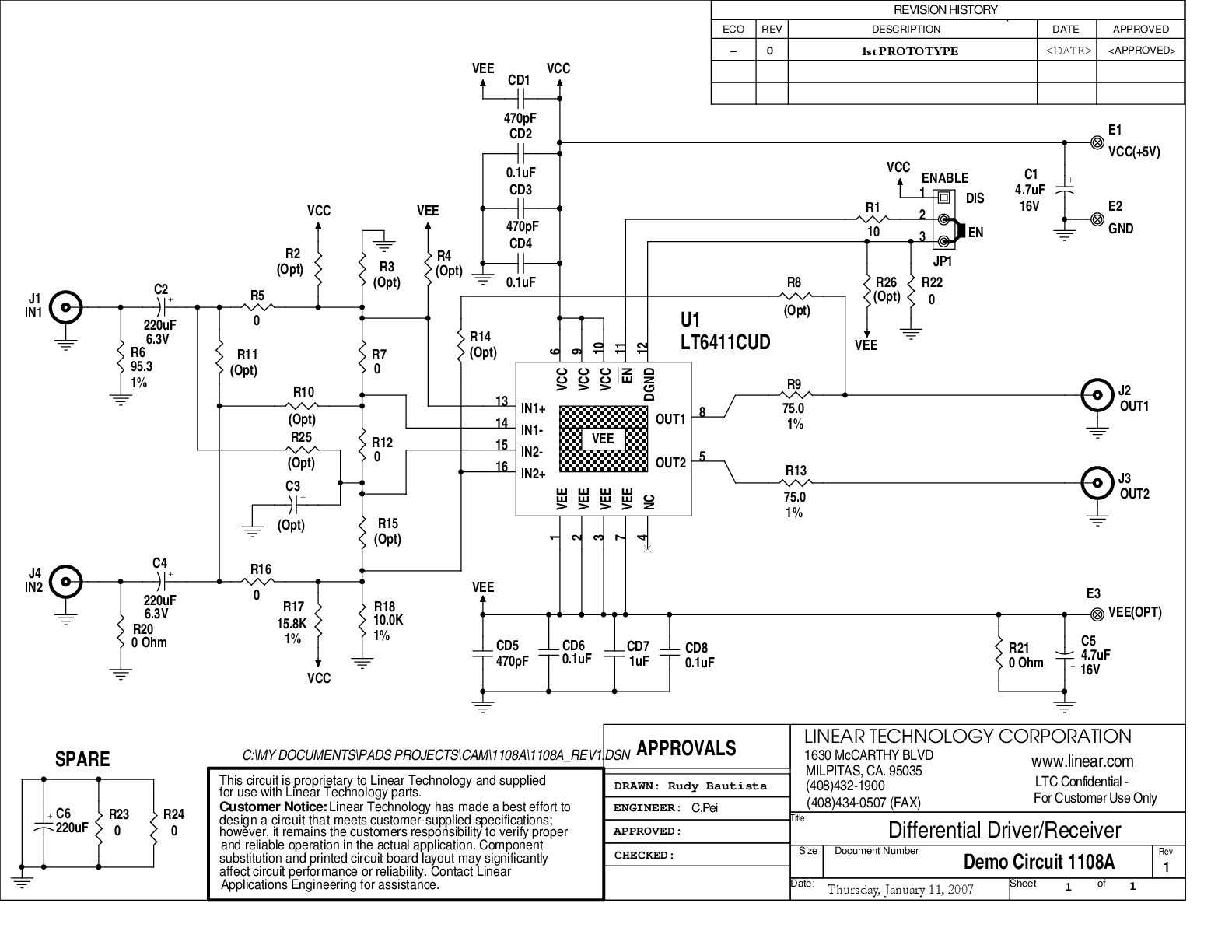

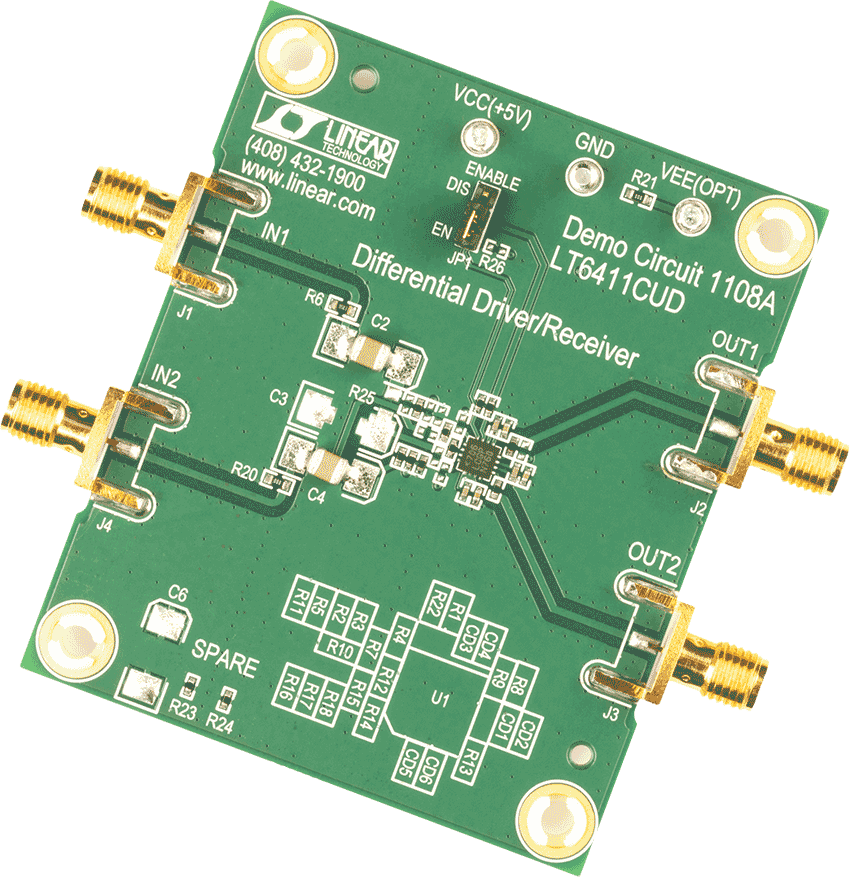

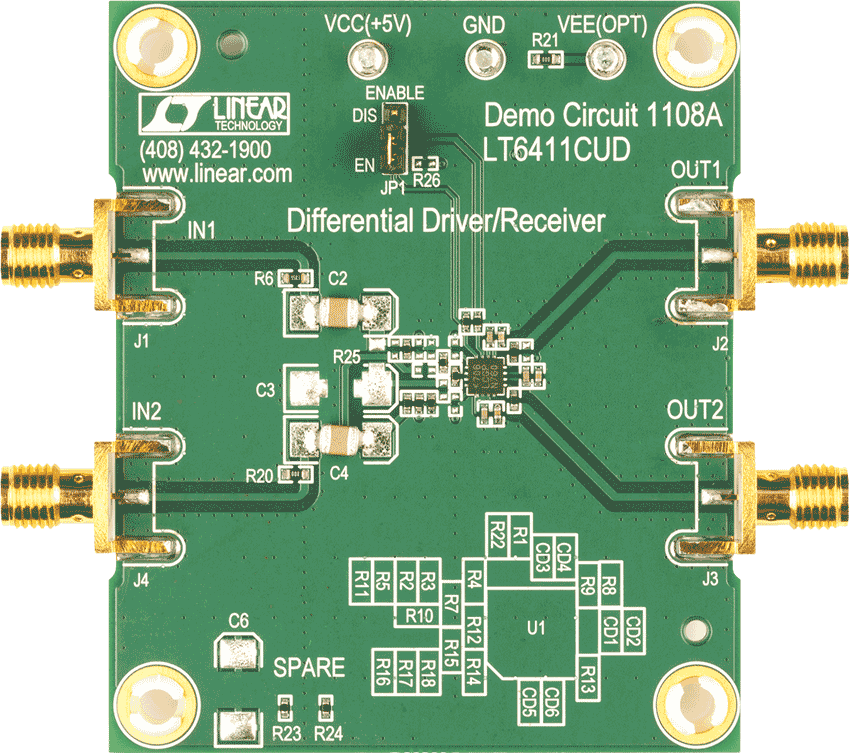

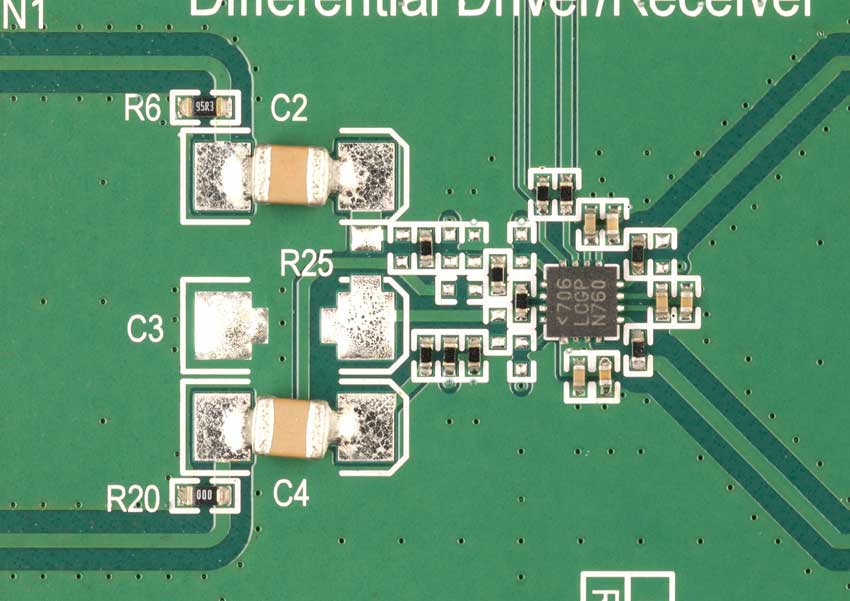

評価キット (2)
