ADSP-2185M
新規設計には非推奨16-bit, 75 MIPS, 2.5v, 2 serial ports, host port, 80 KB RAM
- 製品モデル
- 3
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- 13.3 ns Instruction Cycle Time @ 2.5 V (Internal), 75 MIPS Sustained Performance
- Single-Cycle Instruction Execution
- 3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle
- ADSP-2100 Family Code Compatible (Easy to Use Algebraic Syntax), with Instruction Set Extensions
- Single-Cycle Context Switch
- 80K Bytes of On-Chip RAM, Configured as 16K Words Program Memory RAM and 16K Words Data Memory RAM
- Dual-Purpose Program Memory for Both Instruction and Data Storage
- See Datasheet for Additional Features

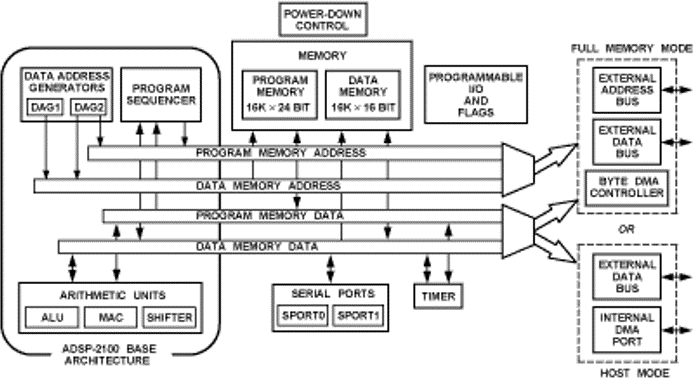

The ADSP-2185M is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications.
The ADSP-2185M combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory.
The ADSP-2185M integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM, and 16K words (16-bit) of data RAM. Power down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2185M is available in 100- pin LQFP package.
ドキュメント
データシート 1
アプリケーション・ノート 61
プロセッサ・マニュアル 4
ソフトウェア・マニュアル 5
集積回路異常 1
レガシー・エミュレータ・マニュアル 1
製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
ADSP-2185MBSTZ-266 | 100-Lead LQFP (14mm x 14mm) | ||
ADSP-2185MKCAZ-300 | 144-Ball CSP-BGA (10mm x 10mm x 1.70mm) | ||
ADSP-2185MKSTZ-300 | 100-Lead LQFP (14mm x 14mm) |
