製品概要

機能と利点

  • 40MHz (25ns instruction rate) SISD SHARC Core
  • 120MFLOPs peak performance
  • Code compatible with all SHARC processors
  • Supports IEEE-compatible 32-bit floating-point, 40-bit floating point, and 32-bit fixed point math
  • 4Mbits of on-chip dual-ported SRAM
  • Glueless connection for scalable DSP multiprocessing
  • Six Link Ports for point to point connectivity and array multiprocessing
  • Two synchronous serial ports with independent transmit and receive functions
  • 10 Channel DMA controller
  • Host Processor Interface

製品概要

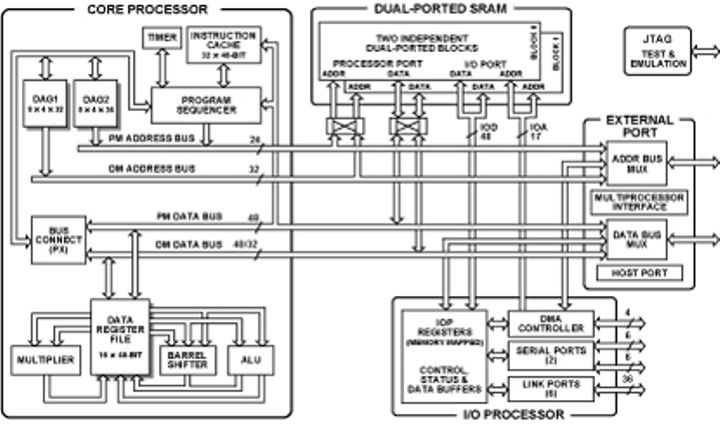

The ADSP-21062 and ADSP-21060 SHARC DSPs are signal processing microcomputers that offer new capabilities and levels of performance. The ADSP-2106x SHARCs are 32-bit processors optimized for high performance DSP applications. The ADSP-2106x builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus.

Fabricated in a high speed, low power CMOS process, the ADSP-2106x has a 25 ns instruction cycle time and operates at 40 MIPS. With its on-chip instruction cache, the processor can execute every instruction in a single cycle.

The ADSP-2106x SHARC DSP represents a new standard of integration for signal computers, combining a high performance floating-point DSP core with integrated, on-chip system features including a 4 Mbit SRAM memory (2 Mbit on the ADSP-21062, 1 Mbit on the ADSP-21061), host processor interface, DMA controller, serial ports, and link port and parallel bus connectivity for glueless DSP multiprocessing.

製品ライフサイクル icon-not-recommended 新規設計には非推奨

新規設計にはお勧めしていません。

ドキュメント

アプリケーション・ノート (41)

ソフトウェア & システム

Software & Tools Anomalies

ツール

IBIS Models

ADSP-21060L IBIS Datafile (BGA Package)

[IBIS Ver]2.1, [File Rev]1.1, [Date]12/02/98

ADSP-21060L IBIS Datafile (QFP Package)

[IBIS Ver]2.1,[File Rev]1.1, [Date]12/02/98

ADSP-21060 IBIS Datafile (QFP Package)

[IBIS Ver] 2.1, [File Rev]1.1, [Date]12/02/98

ADSP-21060 IBIS Datafile (BGA Package)

[IBIS Ver]2.1, [File Rev]1.1,[Date]12/02/98
