この製品は、HDMI.org.のライセンス技術を使用しています。購入される顧客は、HDMI.org.に登録したHDMIアダプターである必要があります。
お近くの販売代理店またはサポート窓口のフォームからお問合せください。AD9393
製造中止Low Power HDMI Display Interface
- 製品モデル
- 2
- 1Ku当たりの価格
- 価格は未定
製品の詳細
- HDMI interface
- Supports high bandwidth digital content protection
- RGB to YCrCb 2-way color conversion
- 1.8 V/3.3 V power supply
- 76-ball BGA package
- RGB and YCrCb output formats
- Digital video interface - See data sheet for additional information.
- Digital audio interface - See data sheet for additional information.
The AD9393 offers a High-Definition Multimedia Interface (HDMI™) receiver integrated on a single chip. Support is also included for high bandwidth digital content protection (HDCP).
The AD9393 contains a HDMI 1.2a-compatible receiver and supports HDTV formats (up to 720p or 1080i) and displays resolutions up to XGA (1024 × 768 @ 75 Hz). The receiver features an intrapair skew tolerance of up to one full clock cycle. With the inclusion of HDCP, displays may now receive encrypted video content. The AD9393 allows for authentication of a video receiver, decryption of encoded data at the receiver, and renewability of that authentication during transmission as specified by the HDCP 1.1 protocol.
Fabricated in an advanced CMOS process, the AD9393 is provided in a space-saving 76-ball, surface-mount, Pb-free, ball grid array (BGA) and is specified over the −10°C to +80°C temperature range.
APPLICATIONS
- Portable low power TV
- HDTV
- Projectors
- LCD monitor
ドキュメント

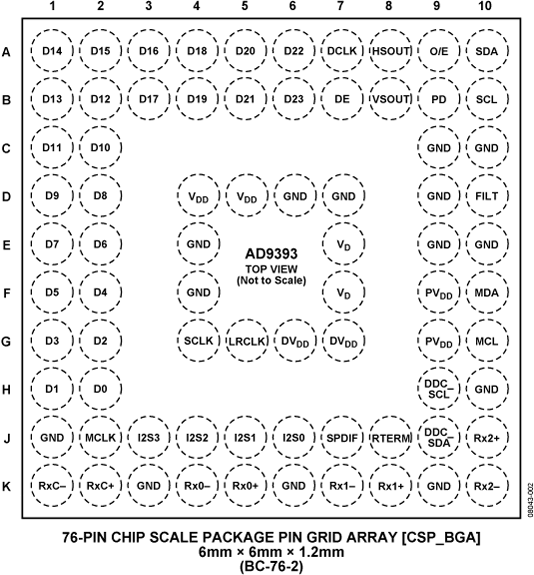

製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
---|---|---|---|
AD9393BBCZ-80 | 75-Ball CSPBGA (6mm x 6mm x 1.2mm) | ||
AD9393BBCZRL-80 | 75-Ball CSPBGA (6mm x 6mm x 1.2mm) |
製品モデル | 製品ライフサイクル | PCN |
---|---|---|
3 16, 2011 - 10_0105 Conversion to Laser Marking for the BGA Packages (Single Grades) |
||
AD9393BBCZ-80 | 製造中止 | |
AD9393BBCZRL-80 | 製造中止 | |
2 6, 2020 - 20_0007 Obsolescence of parts due to discontinuance all array and leaded packages in STATS Singapore |
||
AD9393BBCZ-80 | 製造中止 | |
AD9393BBCZRL-80 | 製造中止 |
これは最新改訂バージョンのデータシートです。
