AD4880
新規設計に推奨Dual Channel 20-Bit, 40 MSPS, SAR ADC with Analog Front End
- 製品モデル
- 3
- 1Ku当たりの価格
- 最低価格:$126.40
製品情報
- Integrated fully differential ADC drivers
- Wide input common-mode voltage range
- High common-mode rejection
- Single-ended to differential conversion
- Gain options include: 1.03, 1.25, 1.53, 2.03, 2.74, 4.11, and 5.77
- Integrated gain-setting resistors
- High performance
- 20-bit resolution, no missing codes
- Throughput: 40MSPS per channel
- Conversion latency: 46.25 ns
- INL: ±7.5ppm (typical), ±12ppm (maximum)
- SNR/THD
- 92.6dBFS (typical)/−107.6dBc (typical) at fIN = 1 kHz
- 91.2dBFS (typical)/−108.0dBc (typical) at fIN = 500 kHz
- Noise spectral density: −160.9dBFS/Hz
- Low power
- 120.5mW per channel typical at 40 MSPS
- Integrated, low-drift reference buffers and decoupling
- Integrated VCM generation
- Digital features and data interface
- Conversion result FIFO, 16K samples per channel
- Digital averaging filter with up to 210 decimation
- SPI configuration per channel
- Configurable data interface per channel
- Single lane, DDR, serial LVDS, 800 MBPS per lane
- Dual lane, DDR, serial LVDS, 400 MBPS per lane
- Single/quad lane SPI data interface
- Package
- 196-ball, 10 mm x 10 mm CSP_BGA, 0.65 mm pitch
- Integrated supply decoupling capacitors
- Operating temperature range: −40°C to +85°C
20-bit, successive approximation register (SAR) analog-to-digital converter (ADC) with integrated fully-differential drivers (FDA) and gain-setting resistors. The two channels can be sampled either simultaneously or independently, which offers flexibility for a wide range of applications.
The integration of the ADC drivers, low drift reference buffers, low dropout (LDO) regulators along with all critical decoupling capacitors greatly simplifies analog front-end design challenges. Specified performance is easier to achieve, which requires a simpler and more compact printed circuit board (PCB) layout.
Optimized for input signals up to 1MHz, the AD4880 delivers low noise and exceptional linearity at remarkably low power consumption, which makes it ideal for many precision data acquisition systems.
Anti-aliasing filter requirements can be relaxed by taking advantage of the high sample rate to oversample, then apply integrated digital filtering and decimation to reduce noise and deliver an increase in dynamic range for applications where ultra-low latency is not required.
The AD4880 features a SAR architecture that results in a conversion latency of just 46.25ns. Therefore, it is a good fit for wide bandwidth applications that have multiplexed input signals, applications that require extremely low latency, or both. Such high throughput and low-latency applications can benefit from the two independent, multilane low-voltage differential signaling (LVDS) interfaces. Alternatively, the load on the digital host can be eased by storing the captured data in the on-chip, 16k samples per channel, first in, first out (FIFO) memory, then asynchronously accessing it via the serial-peripheral interface (SPI) data interfaces.
APPLICATIONS
- Digital imaging
- Cell analysis
- Spectroscopy
- High speed data acquisition
- Digital control loops, hardware in the loop
- Power quality analysis
- Source measurement units
- Nondestructive test
ドキュメント
データシート 1
ユーザ・ガイド 1
| 製品モデル | ピン/パッケージ図 | 資料 | CADシンボル、フットプリント、および3Dモデル |
|---|---|---|---|
| AD4880BBCZ | 196-ball CSP_BGA (10 mm x 10 mm x 1.28 mm) | ||
| AD4880BBCZ-RL | 196-ball CSP_BGA (10 mm x 10 mm x 1.28 mm) | ||
| AD4880BBCZ-RL7 | 196-ball CSP_BGA (10 mm x 10 mm x 1.28 mm) |
ソフトウェア・リソース
必要なソフトウェア/ドライバが見つかりませんか?
ドライバ/ソフトウェアをリクエストツールおよびシミュレーション
LTspice
下記製品はLTspiceで使用することが出来ます。:
- AD4880
LTspice®は、無料で提供される強力で高速な回路シミュレータと回路図入力、波形ビューワに改善を加え、アナログ回路のシミュレーションを容易にするためのモデルを搭載しています。

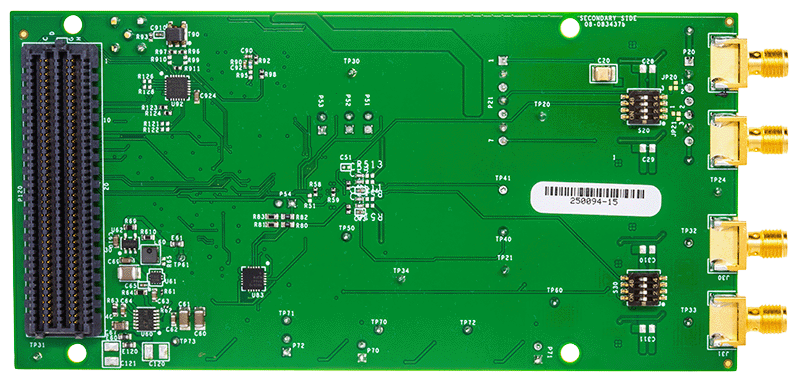

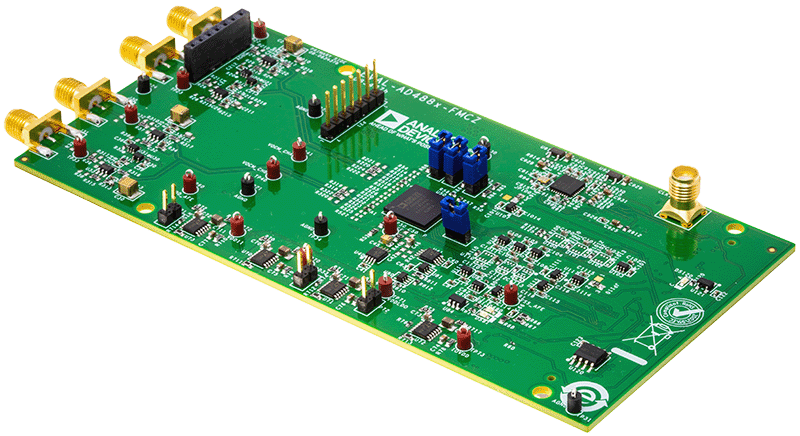

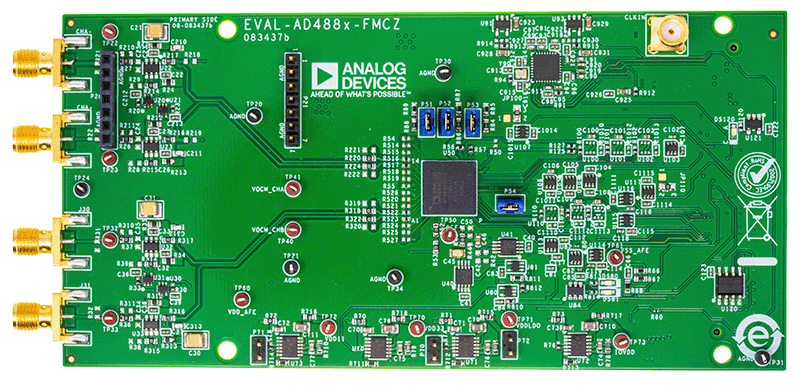

評価用キット
