AD4694

新規設計に推奨

8-Channel, Easy Drive Multiplexed SAR ADC with Averaging Filters Per Channel

製品モデル: 3
1Ku当たりの価格: 価格は未定

Viewing:

製品情報

Easy Drive features enable compact system designs
- Precharge buffers reduce analog input and reference circuit drive requirements
- On-chip reference buffer (WLCSP only)
Small footprint, big performance
- Sample rate: 500kSPS (AD4693) and 1MSPS (AD4694)
- INL: ±0.85 LSB maximum
- Guaranteed 16-bit, no missing codes
- First conversion accurate
- SINAD: 93dB typical, f_IN = 1kHz
- 14.6mW at f_S = 1MSPS and 7.3mW at f_S = 500kSPS
- 24-lead 4mm × 4mm LFCSP or 36-ball 2.96mm × 2.96mm WLCSP

Enhanced digital functionality
- Averaging filters per channel
- Customizable channel sequencer
- Interleaved channel sampling
- Autonomous and burst sampling modes
- 4-wire SPI compatible with 1.2V and 1.8V logic
Wide operating temperature range: −40°C to +125°C

The AD4693/AD4694 are compact, high accuracy, 16-channel, 16- bit successive approximation register (SAR) analog-to-digital converters (ADCs) optimized for high-density multichannel precision data acquisition solutions. The AD4693/AD4694 combine precision performance with Easy Drive features and flexible digital processing to ensure compatibility with space-constrained analog front-end (AFE) designs and low-power digital hosts.

The AD4693/AD4694 Easy Drive features broaden the selection of compatible amplifiers and voltage references. The precharge buffers enable smaller and lower power AFE designs by significantly reducing input voltage and current transients that typically force AFEs to include high-bandwidth ADC driver amplifiers per channel. The WLCSP model also includes an integrated reference buffer which provides a true, buffered reference input.

The AD4693/AD4694 digital features and serial interface are optimized for use with low-power or power-cycled microcontrollers. The AD4693/AD4694 include averaging filters per channel and a customizable channel sequencer, which combined enable on-chip noise filtering with channel-independent averaging ratios. An integrated burst sampling timer enables autonomous and burst sampling schemes to perform conversions with minimal digital resources. Device configuration and ADC data readback are supported via a robust, 4-wire serial peripheral interface (SPI) with optional cyclic redundancy check (CRC).

The AD4693/AD4694 are available in a 4mm × 4mm, 24-lead lead frame chip scale package (LFCSP) and a 2.96mm × 2.96mm, 36-ball wafer level chip scale package (WLCSP) with operation specified from −40°C to +125°C.

APPLICATIONS

Optical power monitoring
Medical instrumentation
Electronic test and measurement
Automated test equipment
Battery-powered equipment

製品モデル: 3
1Ku当たりの価格: 価格は未定

ドキュメント

データシート 1

AD4693/AD4694: 8-Channel, Easy Drive Multiplexed SAR ADC with Averaging Filters Per Channel Data Sheet (Rev.0) 02/27/2026

ユーザ・ガイド 1

EVAL- AD4692-ARDZ User Guide: Evaluating the AD4692 Family of Easy Drive Multiplexed SAR ADCs with Averaging Filters per Channel (Rev.0) 02/27/2026

アナログ・デバイセズは、最高レベルの品質と信頼性を満たす製品を供給することを常に最重要視しています。これを実現するため、製品、プロセス設計、更には製造プロセスに対しあらゆる観点から品質と信頼性のチェックを行っています。アナログ・デバイセズでは出荷製品に対する「ゼロ・ディフェクト」を常に目指しています。詳細については、アナログ・デバイセズの品質および信頼性プログラム、認証のページを参照してください。

製品モデル	ピン／パッケージ図	資料	CADシンボル、フットプリント、および3Dモデル
AD4694BCBZ-RL7	36-Ball WLCSP (2.96mm x 2.96mm x 0.50mm)	Material Declaration Reliability Report パッケージ関連資料	Ultra Librarian SamacSys
AD4694BCPZ	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliability Report パッケージ関連資料	Ultra Librarian SamacSys
AD4694BCPZ-RL7	32-Lead LFCSP (5mm x 5mm w/ EP)	Material Declaration Reliability Report パッケージ関連資料	Ultra Librarian SamacSys

これは最新改訂バージョンのデータシートです。

ソフトウェア・リソース

必要なソフトウェア／ドライバが見つかりませんか？

ドライバ／ソフトウェアをリクエスト

評価用キット

Evaluating the AD4692 Family of Easy Drive Multiplexed SAR ADCs with Averaging Filters per Channel

今すぐ購入詳細を表示

機能と利点

Full featured evaluation board for the AD4692 family of multiplexed SAR ADCs
- Demonstrates performance and functionality of the AD4691, AD4692, AD4693, and AD4694
Two single-ended input channels available through SMA connectors for AC analysis
- Six channels for on-board DC voltage analysis
On-board reference circuitry and power tree designed for a USB power solution
ACE plugin available for device configuration and data analysis in the time and frequency domains
Compatible with SDP-K1 and other Arduino form factor controller boards

製品詳細

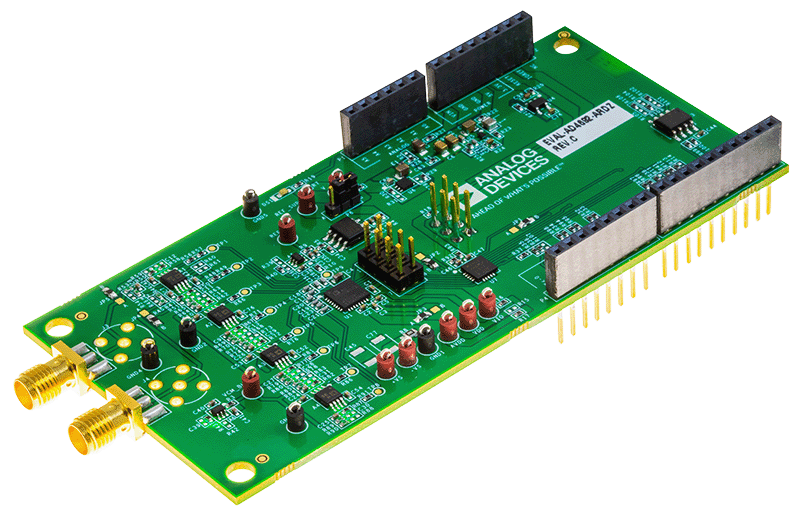

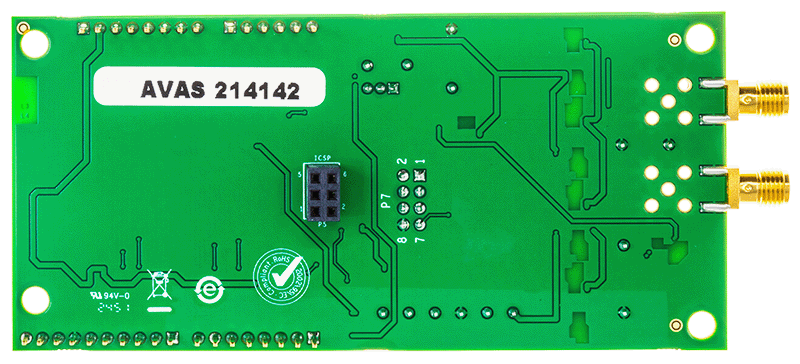

The EVAL-AD4692-ARDZ evaluation board is designed to demonstrate the performance of the AD4692 family of analog-to-digital converters (ADCs) and to provide access to included configuration options available in the ACE plugin graphical user interface (GUI). The AD4692 family are compact, high accuracy, 16-bit Easy Drive successive approximation register (SAR) ADCs optimized for high-density multichannel precision data acquisition solutions. This document includes a quick-start guide for using the EVAL-AD4692- ARDZ evaluation board with the EVAL-SDP-CK1Z (SDP-K1) controller board. Refer to the Hardware Setup section and Evaluation Board Software section for detailed instructions on setting up the hardware and software for board evaluation.
