ADIN2299
製造中Multiprotocol Two-Port Industrial Ethernet Platform
Module and Embedded Design Solutions with Precertified Protocols
製品情報
- All protocols precertified
- PROFINET RT (Class B)
- PROFINET IRT (Class C)
- EtherNet/IP with DLR
- EtherCAT
- Modbus/TCP
- Configurable applications processor interface
- UART: 115,200 bps to 1,000,000 bps
- Ethernet at 10 Mbps or 100 Mbps
- SPI follower: 10 MHz maximum clock
- Industrial Ethernet interface-compliant to IEEE 802.3, 10Base or 100Base transmit half and full duplex
- Single 3.3 V power supply, 840 mW
- Cycle time down to 1 ms (cycle times vary based on protocol, link type, and application data)
- 194-ball chip-scale package BGA form factor
- RoHS 3 compliant
- –40°C to +85°C industrial temperature range

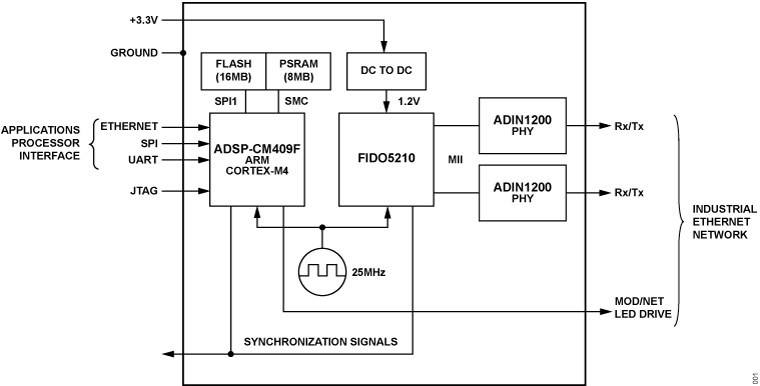

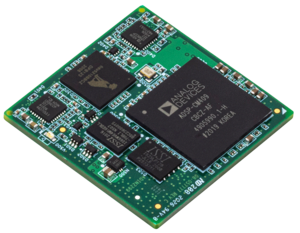

The ADIN2299 is a multiprotocol industrial Ethernet platform designed to address the connectivity needs of a broad set of industrial applications. The platform contains a communications controller, a two-port 10/100 Mbps Ethernet switch, memory, physical layer (PHY), and protocol stacks. The ADIN2299 hardware, coupled with its software and precertified industrial protocols, reduces system integration time, and enables fast time to market. Protocol support includes PROFINET, EtherCat, EtherNet/IP, and Modbus TCP.
The ADIN2299 reduces design and debug time by not only providing the protocol stack but also the real-time operating system (RTOS), file system, drivers, and transmission control protocol (TCP)/internet protocol (IP). An application processor can connect to the platform via a universal asynchronous receiver transmitter (UART), serial peripheral interface (SPI), or Ethernet interface. The ADIN2299 software enables the application processor to connect to a unified interface so that various industrial protocols can be utilized without requiring any changes to the application processor software. This eliminates the learning curve associated with incorporating additional protocols. Customers can now leverage a single field device hardware design to support multiple industrial protocols.
Another critical element of the ADIN2299 is cybersecurity. The ADIN2299 has a secure boot and secure update feature which ensures that only verified code is executed, reducing possible disruptions in the field caused by cyberattacks. The ADIN2299 is also available as an embedded design to address applications that have space constraints and unique form factors. To minimize embedded design efforts, the schematics, layout examples, bill of materials, firmware, and design files are readily available.
PRODUCT HIGHLIGHTS
- Multiprotocol support
- Precertified protocol support
- Secure boot and secure update
- Module and embedded design for small and unique form factors
- Low power and low latency
- Robust network policing ensures passing PROFINET Netload Class 3
APPLICATIONS
- Industrial and process automation
- Motion control
- Transportation
- Energy
- Building automation
ドキュメント
データシート 2
ユーザ・ガイド 1
評価用設計ファイル 2
よく聞かれる質問 2
これは最新改訂バージョンのデータシートです。
ソフトウェア・リソース
評価用ソフトウェア 5
ADIN2299 EtherCAT Software
ADIN2299 Modbus Software
ADIN2299 IO Configuration Tool
ADIN2299 NI-example-application
ADIN2299 Profinet Software
評価用キット

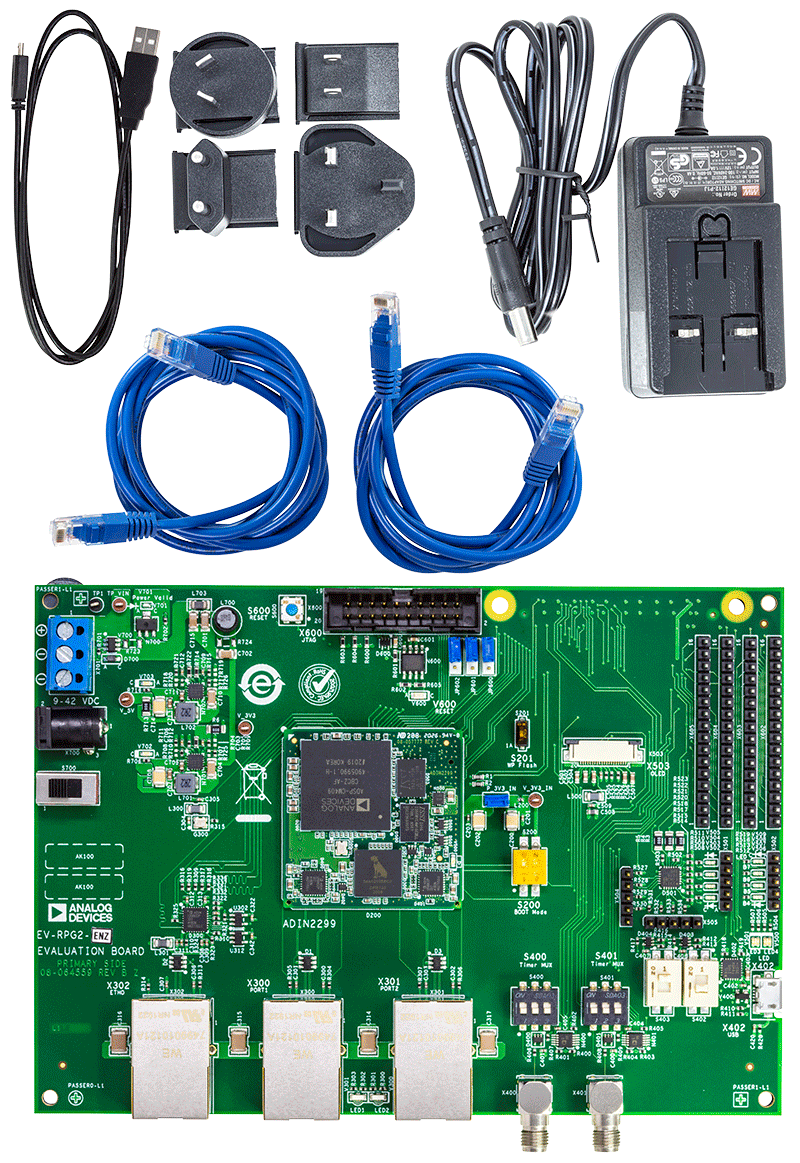

RapIDプラットフォーム第２世代
