MAX20353EVSYS Evaluation Board

Overview

Features and Benefits
Product Details

Features and Benefits

USB Power Option
Flexible Configuration
On-Board LED Current Sink and Battery Simulation
Sense Test Point for Output-Voltage Measurement
Filter Test Point for Haptic Waveform Measurement
Windows^® 8/10-Compatible GUI Software
Fully Assembled and Tested

Product Details

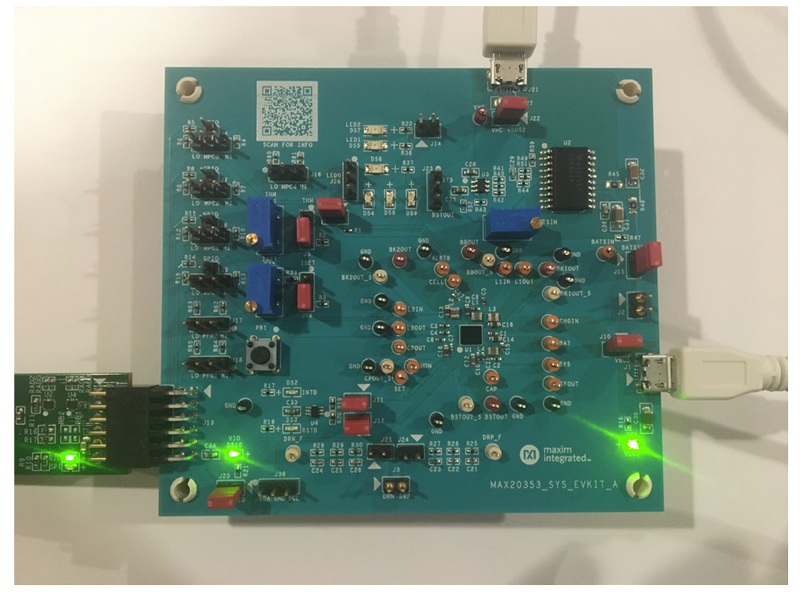

The MAX20353 evaluation system (EV system) is a fully assembled and tested circuit board that demonstrates the MAX20353 ultra-low-power wearable power-management integrated circuit (PMIC). The MAX20353 includes voltage regulators such as bucks, boost, buck-boost and linear regulators, and a complete battery management solution with battery seal, charger, power path and fuel gauge.

The MAX20353 EV system comes with the MAX20353 board, the MAXPICO2PMB# board, and two micro-B cables. The EV system comes with the MAX20353AEWN+ installed. The MAX20353 is configurable through an I²C interface that allows for programming various functions and reading the device status. The EV system GUI application sends commands to the MAXPICO2PMB# adapter board to configure the device.
