Overview

Features and Benefits

  • ADSP-21562 SHARC+ Audio Processor
  • 512 Mb Quad SPI Flash Memory
  • ADAU1962A 12-Channel, High-Performance 192kHz 24-Bit DAC
  • ADAU1979 Quad ADC
  • Power Solution Based on LT Components
  • FTDI USB-to-UART
  • Debug Interface (JTAG)
  • Status LEDs and Pushbutton IRQs

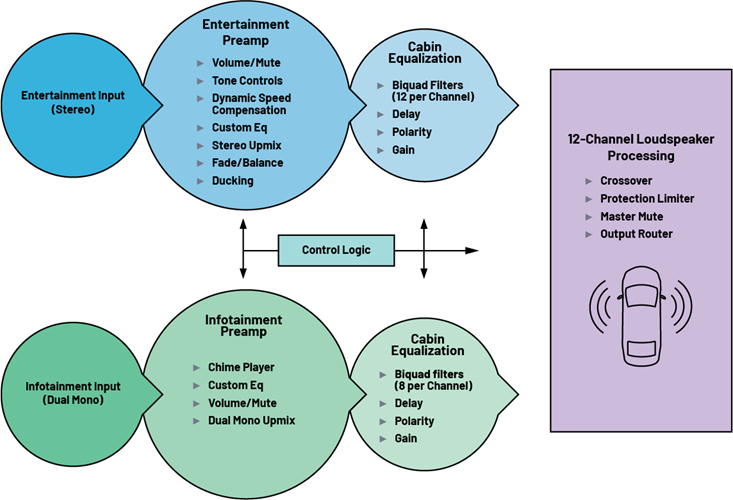

ADI LISTN EZ-AUDIO System Audio Signal Flow Features



Product Details

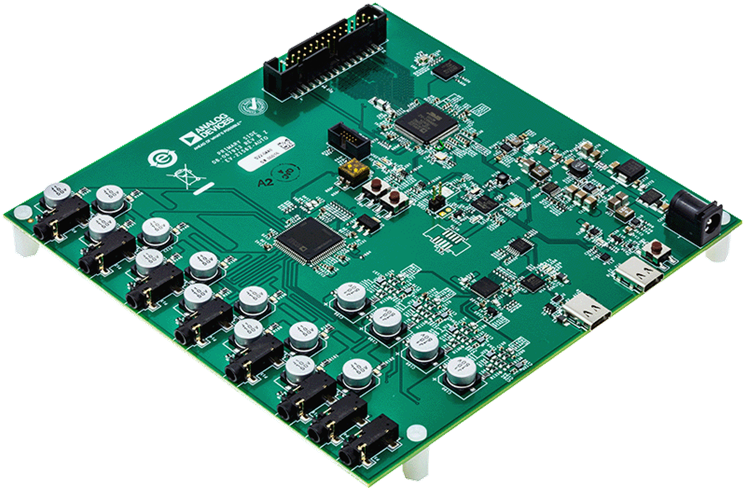

The ADI LISTN EZ-Audio System (EV-21562-AUTO) enables rapid tuning and deployment of a pre-configured 4-channel in/12-channel out audio flow from DSP Concepts running on the ADSP-2156x family (ADSP-21562/ADSP-21563/ADSP-21565) of SHARC audio processors. Using a custom tuning tool (AWE Tune), customers can quickly tailor the audio output for any automotive cabin. Reduce your time to audio using this turnkey hardware/software automotive audio solution jointly developed by Analog Devices and DSP Concepts.

ADI LISTN EZ-AUDIO System Customer Journey



Markets and Technologies

Applicable Parts

Package Contents

  • EV-21562-AUTO Board
  • Universal 12V DC Power Supply
  • USB 3.0 Type C-to-A Cable
  • Getting Started Notes

Documentation & Resources

  • View All (6)
  • Demo Board Schematic (1)
  • User Guide (1)
  • Evaluation Design File (1)
  • Board Design Database (1)
  • Product Highlight (1)
  • Video (1)
    • Document Type

    Software

    Product Downloads

    ADI LISTN EZ-Audio System Evaluation Software (Rev. 1.0.0)

    Software Development Tools

    CrossCore Utilities is a collection of utilities for use with Analog Devices processors, in conjunction with CrossCore Embedded Studio, IAR or Keil development tools.
