TMC2590

Stepper motor driver 7 TO 34V, for external P/N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Part Details
Part Models 2
1ku List Price
price unavailable
Features
  • Motor Current from 1A to 8A using external (N&P) MOSFETs
  • High Voltage Range from 5V to 60V DC (more w. ext. driver)
  • High Resolution up to 256 microsteps per full step
  • Small Size 5x5mm (body) TQFP32-EP package
  • Low Power Dissipation using MOSFET power stage
  • High Temperature Tolerance due to low self-heating
  • EMI-optimized slope & current controlled gate driver
  • Resonance Dampening for mid-range velocity
  • Protection & Diagnostics short to GND, short to VS / overcurrent, programmable overtemperature & undervoltage
  • StallGuard2™ high precision sensorless motor load detection
  • CoolStep™ load dependent current control saves up to 75%
  • MicroPlyer™ 256 step smoothness with 1/16 step input.
  • SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
  • Differential Current Sensing for quiet chopper operation
Additional Details
show more Icon

The TMC2590 driver for two-phase stepper motors offers an industry-leading feature set, including high-resolution microstepping, sensorless mechanical load measurement, load-adaptive power optimization, and low-resonance chopper operation. It uses external N- and P-channel MOSFETs for motor currents from 1A up to roughly 8A. The TMC2590 offers standard SPI and Step/Dir interfaces to simplify communication as well as stand alone configuration options.

  • Textile, Sewing Machines
  • Factory & Lab Automation
  • 3D printing
  • Liquid Handling
  • Medical
  • Office Automation
  • Printer and Scanner
  • CCTV, Security
  • ATM, Cash recycler, POS
  • Pumps and Valves
  • Heliostat Controller
  • CNC Machines
Part Models 2
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
TMC2590-TA
  • HTML
  • HTML
TMC2590-TA-T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

TMC2590-BOB40

OBSOLETE: Evaluation Board for TMC2590

zoom

TMC2590-BOB40

OBSOLETE: Evaluation Board for TMC2590

OBSOLETE: Evaluation Board for TMC2590

Features and Benefits

  • Break Before Make
  • CoolStep™
  • SpreadCycle™
  • StallGuard2™
  • Current Sense
  • Short Detection
  • Slope Control
  • Stall Detection
  • MicroPlyer™

Product Detail

This evaluation board is obsolete and no longer recommended.

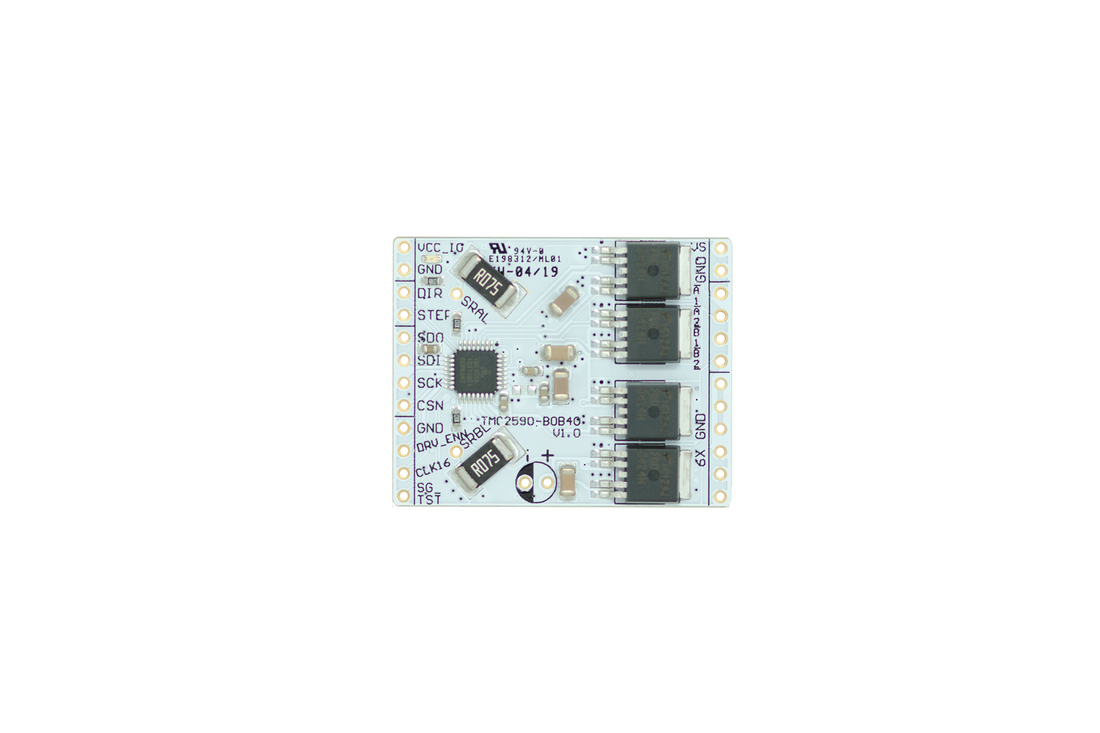

The TMC2590 breakout board is a development board with the dedicated TMC2590-TA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
