Overview

Features and Benefits

  • Break Before Make
  • CoolStep™
  • SpreadCycle™
  • StallGuard2™
  • Current Sense
  • Short Detection
  • Slope Control
  • Stall Detection
  • MicroPlyer™

Product Details

This evaluation board is obsolete and no longer recommended.

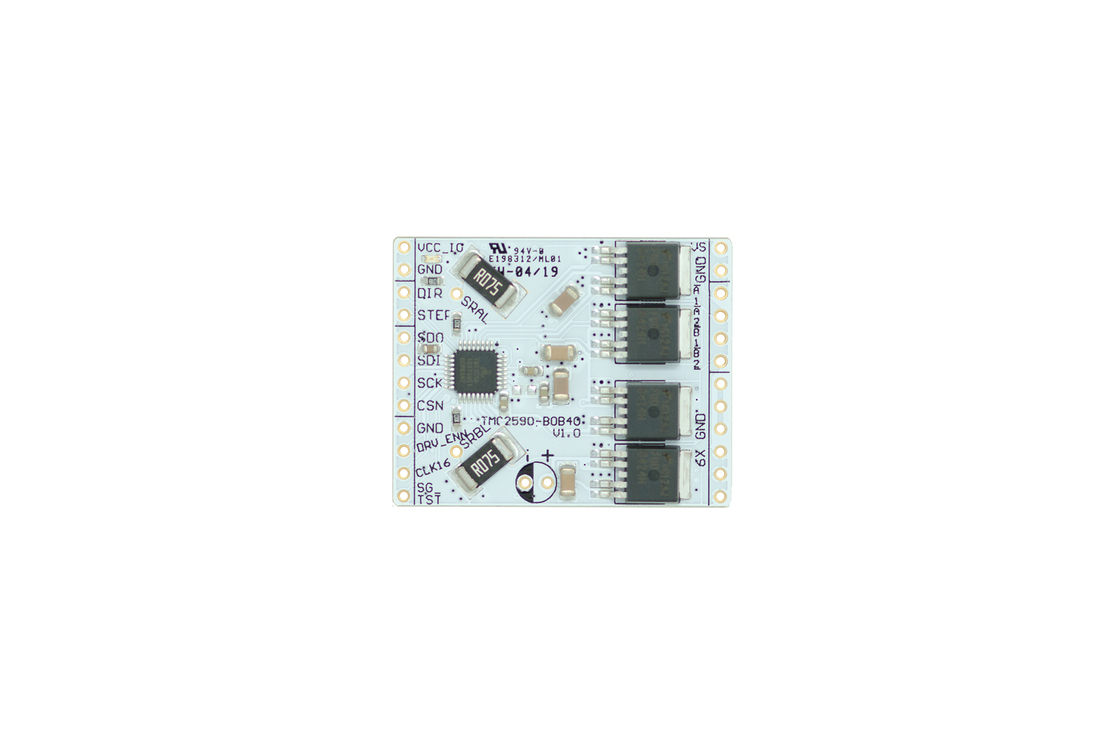

The TMC2590 breakout board is a development board with the dedicated TMC2590-TA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

Applicable Parts
