The SSM2317 is a fully integrated, high efficiency, Class-D audio
amplifier. It is designed to maximize performance for mobile
phone applications. The application circuit requires a minimum
of external components and operates from a single 2.5 V to 5.5 V
supply. It is capable of delivering 3 W of continuous output
power with <1% THD + N driving a 3 Ω load from a 5.0 V supply.
The SSM2317 features a high efficiency, low noise modulation
scheme that does not require any external LC output filters. The
modulation continues to provide high efficiency even at low output
power. It operates with 93% efficiency at 1.4 W into 8 Ω or 85%
efficiency at 3 W into 3 Ω from a 5.0 V supply and has an SNR of
>93 dB. Spread-spectrum pulse density modulation is used to
provide lower EMI radiated emissions compared with other
Class-D architectures.
Automatic level control (ALC) can be activated to suppress
clipping and improve dynamic range. This feature only requires
one external resistor tied to GND via the VTH pin and an
activation voltage on the ALC_EN pin.
The SSM2317 has a micropower shutdown mode with a typical
shutdown current of 20 nA. Shutdown is enabled by applying
a logic low to the SD pin.
The device also includes pop-and-click suppression circuitry. This
minimizes voltage glitches at the output during turn-on and turn-off,
reducing audible noise on activation and deactivation.
The default gain of the SSM2317 is 18 dB, but users can reduce the
gain by using a pair of external resistors.
The SSM2317 is specified over the commercial temperature range
of −40°C to +85°C. It has built-in thermal shutdown and output

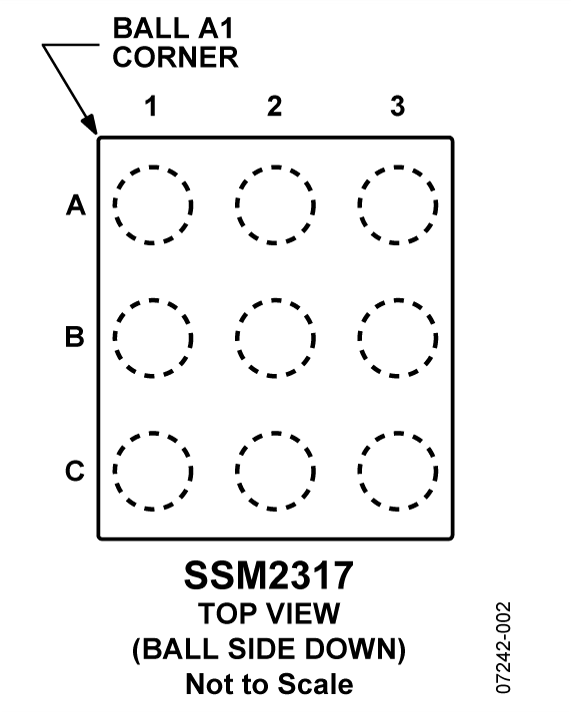

short-circuit protection. It is available in a 9-ball, 1.5 mm × 1.5 mm
wafer level chip scale package (WLCSP).
APPLICATIONS
- Mobile phones
- MP3 players
- Portable gaming
- Portable electronics
- Educational toys
