Features and Benefits

  • Excellent sonic characteristics
  • High output drive capability
  • 5.2 nV/√Hz equivalent input noise @ 1 kHz
  • 0.003% THD + N (VOUT = 1 V p-p @ 1 kHz)
  • 3.5 MHz gain bandwidth
  • Unity-gain stable
  • Low cost

Product Details

The SSM2135 dual audio operational amplifier permits excel-lent performance in portable or low power audio systems, with an operating supply range of 4 V to 36 V or ±2 V to ±18 V. The unity-gain stable device has very low voltage noise of 5.2 nV/√Hz, and total harmonic distortion plus noise below 0.01% over normal signal levels and loads. Such characteristics are enhanced by wide output swing and load drive capability. A unique output stage1 permits output swing approaching the rail under moderate load conditions. Under severe loading, the SSM2135 still maintains a wide output swing with ultralow distortion. Particularly well suited for computer audio systems and portable digital audio units, the SSM2135 can perform preamplification, headphone and speaker driving, and balanced line driving and receiving. Additionally, the device is ideal for input signal conditioning in single-supply, Σ-Δ, analog-to-digital converter subsystems such as the AD1877. The SSM2135 makes an ideal single-supply stereo output amplifier for audio digital-to-analog converters (DACs) because of its low noise and distortion.

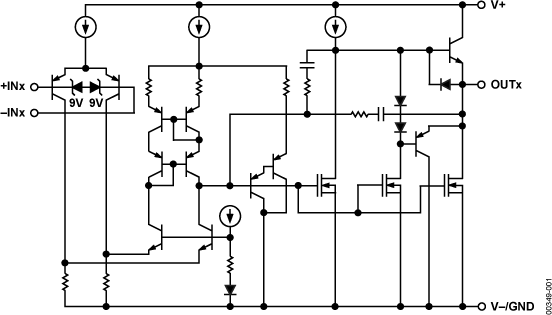

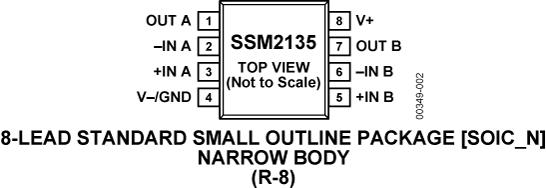

The SSM2135 is available in an 8-lead plastic SOIC package and is guaranteed for operation over the extended industrial temperature range of −40°C to +85°C.

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
