SC2200

Dual RF Power Amplifier Linearizer (RFPAL)

Show More showmore-icon

Fourth Generation Fully Adaptive RF PA Linearization Technology in a Single IC

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $85.66
Features
  • Ease of Use
    • Integrated RFIN/RFOUT Solution
  • Smaller Total System Form Factor (24mm x 26mm)

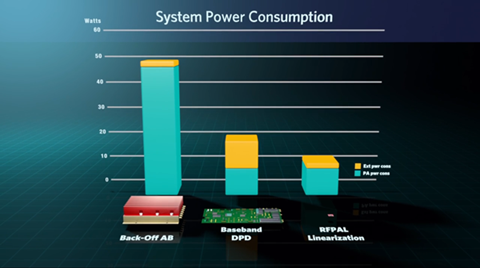

  • Reduces System Power Consumption and OPEX

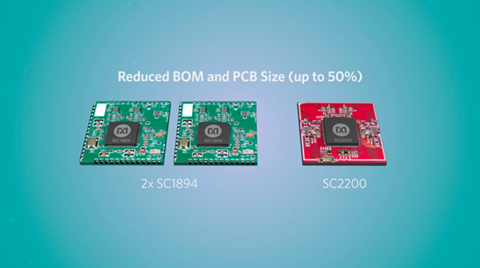

  • Reduces BOM Costs and Total Volume
    • Smaller Power Supply, Heat Sink, and Enclosure
    • Lower Back-Off Reduces Transistor Costs
  • Frequency Range: 698MHz–2700MHz
  • Integrated Preamp and Single-Ended RF I/Os
  • Single +1.8V Supply Voltage
  • External Reference Clock Support:
    • 10, 13, 15.36, 19.2, 20, 26, and 30.72MHz
  • Packaged in 11mm x 11mm SAWN QFN Package
  • Operating Case Temperature: -40°C to +100°C
  • RoHS, Green, REACH, and ISO9001 Compliant
  • Dual-Path RFIN/RFOUT Linearizer in CMOS SoC
  • Fully Adaptive Correction
  • Up to 28dB ACLR and 38dB IMD Improvement (1)
  • 1.2MHz < BWSIG ≤ 60MHz
  • Power Consumption:
    • Duty-Cycled (10%) Feedback: 1500mW (Dual-Path)
    • 100% Adaptation: 1.95W (Dual-Path)
Additional Details
show more Icon

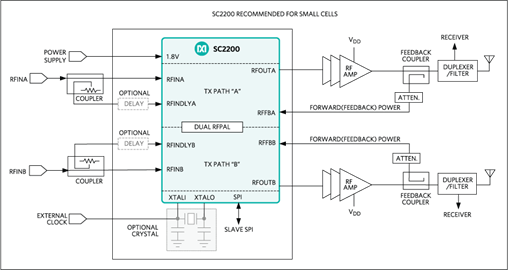

The SC2200 belongs to the 4th-generation family of RF PA linearizers (RFPAL) that provides increased integration and functionality over the previous generations. The device is a dual-path linearizer that is a fully-adaptive, RFIN/RFOUT predistortion linearization solution optimized for a wide range of amplifiers, power levels, and communication protocols. It supports 2G to 4G standards (FDD and TDD) from 698MHz to 2700MHz as well as an expanded range of signal bandwidths from 60MHz down to 1.2MHz. The SC2200 accepts single-ended RF signals to eliminate baluns and features a mirrored pinout facilitating design of both paths. The device uses the PA output and input signals to adaptively generate an optimized correction function to minimize the PA’s distortion. Using RF-domain analog signal processing enables the SC2200 to operate over wide bandwidths and with very low power consumption. The dual linearizer is optimized for high-performance MIMO applications, including small cells, active antenna, and distributed antenna systems.

APPLICATIONS

  • Amplifier: Class A/AB, Doherty
  • Average PA Output Power Examples: Cellular Infrastructure: 27dBm to 40dBm
  • BTS Amplifiers, RRH, Booster Amplifiers, Repeaters, Small Cells, Microcells, Picocells, DAS, AAS and MIMO Systems
  • Cellular Infrastructure
  • PA Process: LDMOS, GaN, HBT, GaAs and InGaP
  • Single/Multicarrier, Multistandard: CDMA/EVDO, TD-SCDMA, WiMAX, WCDMA/HSDPA, LTE, and TD-LTE
  • Wide Range of PAs and Output Power
Part Models 2
1ku List Price Starting From $85.66

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
SC2200A-00A00
  • HTML
  • HTML
SC2200A-00A00E
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 16, 2016

- 1621

ELECTRICAL DATASHEET

SC2200A-00A00E

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 16, 2016

- 1621

arrow down

ELECTRICAL DATASHEET

SC2200A-00A00E

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 4

SC2200-EVK2400

Evaluation Kit for the SC2200

zoom

SC2200-EVK2400

Evaluation Kit for the SC2200

Evaluation Kit for the SC2200

Features and Benefits

  • Ease of Use
    • Integrated RFIN/RFOUT Solution
  • Reduces System Power Consumption and OPEX
  • Reduces BOM Costs and Total Volume
    • Smaller Power Supply, Heat Sink, and Enclosure
    • Lower Back-Off Reduces Transistor Costs
  • Frequency Ranges:
    • SC2200-EVK900: 698–960MHz
    • SC2200-EVK1900: 1800–2200MHz
    • SC2200-EVK2400: 2300–2700MHz
  • Integrated Preamp and Single-Ended RF I/Os
  • Single +5V Supply Voltage
  • Dual-Path RFIN/RFOUT Linearizer
  • Fully Adaptive Correction
  • Up to 28dB ACLR and 38dB IMD Improvement (1)
  • 1.2MHz < BWSIG ≤ 60MHz

Product Detail

The SC2200 evaluation kits (SC2200-EVK) provide the hardware and software graphical user interface (GUI) necessary for the evaluation of the SC2200. The SC2200 belongs to the 4th-generation family of RF PA linearizers (RFPAL) that provide increased integration and functionality over the previous generations. The SC2200 is a dual-path linearizer that is a fully-adaptive, RFIN/RFOUT predistortion linearization solution optimized for a wide range of amplifiers, power levels, and communication protocols. It supports 2G to 4G standards (FDD and TDD) from 698MHz to 2700MHz, as well as an expanded range of signal bandwidths from 60MHz down to 1.2MHz. The device accepts single-ended RF signals to eliminate baluns and features a mirrored pinout facilitating design of both paths. The SC2200 uses the PA output and input signals to adaptively generate an optimized correction function to minimize the PA’s distortion. Using RF-domain analog signal processing enables the SC2200 to operate over wide bandwidths and with very low power consumption. The dual linearizer can be used for small cell MIMO, active antennas, distributed antennas, or in systems requiring two different simplex bands.

Applications

  • Amplifier: Class A/AB, Doherty
  • Average PA Output Power Examples: Cellular Infrastructure: 27dBm to 40dBm
  • BTS Amplifiers, RRH, Booster Amplifiers, Repeaters, Small Cells, Microcells, Picocells, DAS, AAS and MIMO Systems
  • Cellular Infrastructure
  • PA Process: LDMOS, GaN, HBT, GaAs and InGaP
  • Single/Multicarrier, Multistandard: CDMA/EVDO, TD-SCDMA, WiMAX, WCDMA/HSDPA, LTE, and TD-LTE
  • Wide Range of PAs and Output Power

SC-USB-SPI2

USB-to-SPI Interface Adapter for SC2200

zoom

SC-USB-SPI2

USB-to-SPI Interface Adapter for SC2200

USB-to-SPI Interface Adapter for SC2200

Product Detail

SC-USB-SPI2# is an adapter used for converting a computer’s USB interface connection to the serial parallel interface (SPI) used by the SC2200. This is not required for operating the SC2200 evaluation kits. It is only recommended for prototypes debug and/or programming linearizer during manufacturing (if no other means available such as onboard micro controller).

Only two connections are required for use with the SC2200 and no external power supply is required. The USB connection from the host computer is made through a standard USB 2.0 cable – a male-to-micro-USB B connected to female connector, J20, on SC-USB-SPI2#. The interface connection between the board containing the SC2200 and the SC-USB-SPI2# adapter is through J1.

This adapter can only be used to run one instance of the SC2200 GUI at a time. Conflicts will occur when running multiple SC2200 GUIs trying to open the same SPI communication pipe.

Typical Operating Temperature: +25°C
