RHP50000

Name: RHP50000
Brand: Analog Devices
Price: 151.80 USD
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

5.5V, 12.5A Synchronous Step-Down Silent Switcher 2 for Commercial Space

Data Sheet (Rev. A) Product Selection Table

Part Models: 2
1ku List Price: Starting From $151.80

Viewing:

Overview

No Single-Event Latch-Up (SEL) up to 47.0 MeV·cm2/mg at V_IN ≤ 3.6V
Total Ionizing Dose (TID) Assured up to 30krad(Si)
Silent Switcher^®2 Architecture: Ultralow EMI Emissions
High Efficiency—4.5mΩ NMOS and 16mΩ PMOS
Wide Bandwidth, Fast Transient Response
Safely Tolerates Inductor Saturation in Overload
V_IN Range: 2.25V to 5.5V
V_OUT Range: 0.5V to V_IN

V_OUT Accuracy: ±1% with Remote Sense
Minimum On-Time: 35ns
Programmable Frequency to 5MHz
Shutdown Current: 1μA
Output Soft-Start with Voltage Tracking
Power Good Output
Die Temperature Monitor
Configurable for Paralleling Power Stages in Forced Continuous Mode

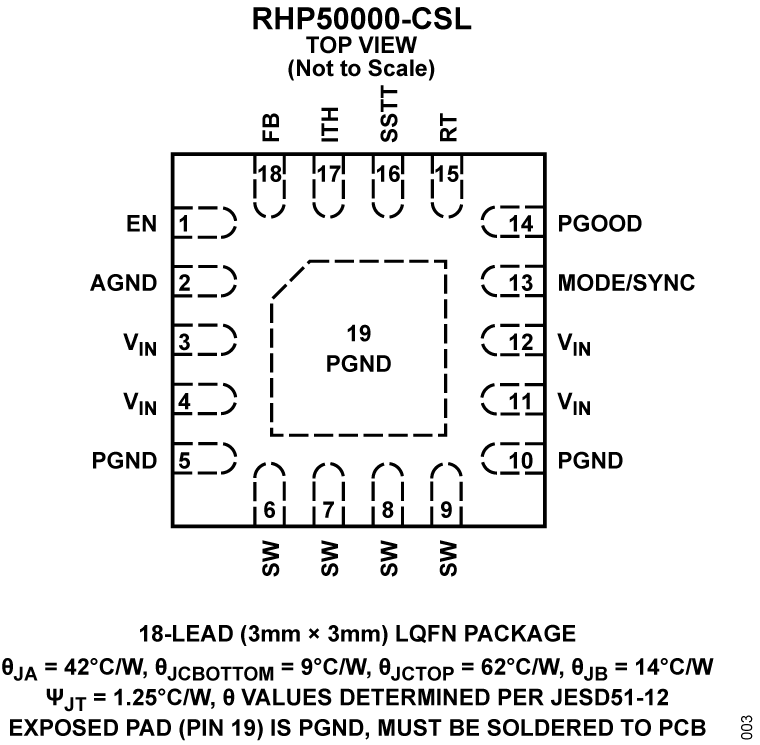

Thermally Enhanced 3mm × 3mm LQFN Package

Part Models: 2
1ku List Price: Starting From $151.80

Documentation

Data Sheet 1

RHP50000: 5.5V, 12.5A Synchronous Step-Down Silent Switcher 2 for Commercial Space Data Sheet (Rev.A) 08/29/2025

User Guide 1

EVAL-RHP50000-CSL User Guide : Evaluates: RHP50000 (Rev.0) 08/29/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RHP50000IV-CSL#PBF	18-Lead LQFN (3mm × 3mm × 0.94mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RHP50000IV-CSL#TRPBF	18-Lead LQFN (3mm × 3mm × 0.94mm)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

RHP50000-CSL

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

Evaluation Board for RHP50000

Buy Now View Details

Product Details

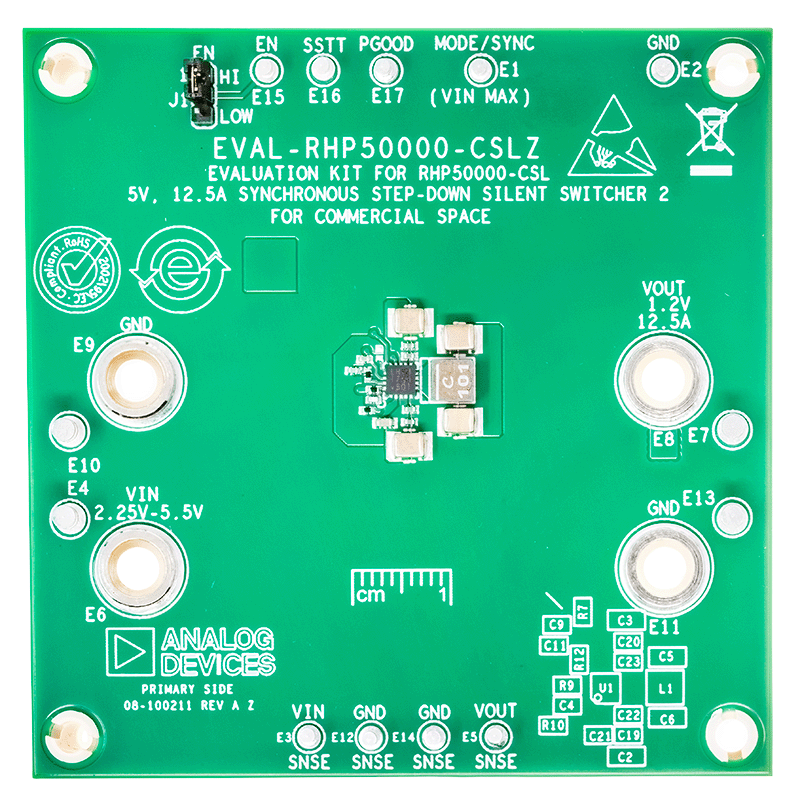

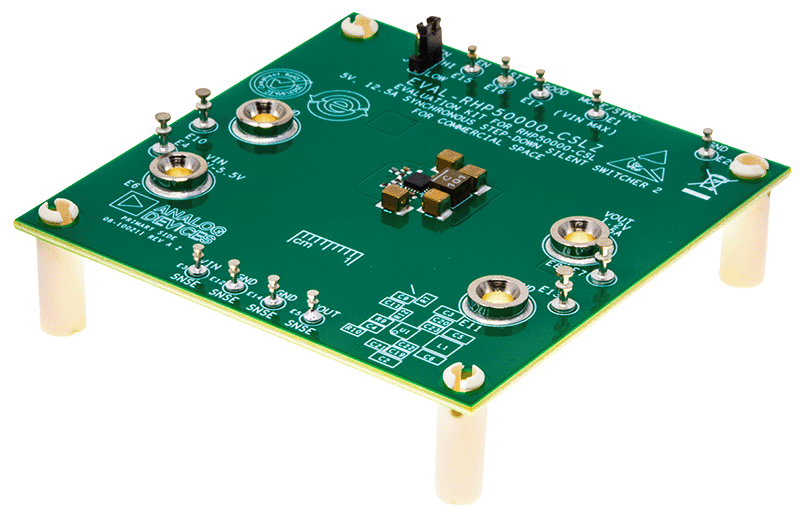

EVAL-RHP50000-CSLZ features the RHP50000-CSL 12.5A, low voltage, synchronous step-down Silent Switcher^® 2 for commercial space operating as a 2MHz 3.3V to 1.2V, 12.5A buck regulator. The RHP50000-CSL supports output voltages from 0.5V to V_IN with operating frequencies from 500kHz up to 5MHz. The RHP50000-CSL is a compact, ultralow emission, high efficiency, and high speed synchronous monolithic step-down switching regulator. The integrated bypass capacitors optimize all the fast current loops and make it easier to minimize electromagnetic interference (EMI) by reducing layout sensitivity. Fast minimum on-time of 35ns enables high V_IN to low V_OUT conversion at high frequency. The RHP50000-CSL is total ionizing dose (TID) assured up to 30krad(Si). It is single-event latch-up (SEL) free up to 47.0 MeV∙cm2/mg at V_IN ≤ 3.6V.

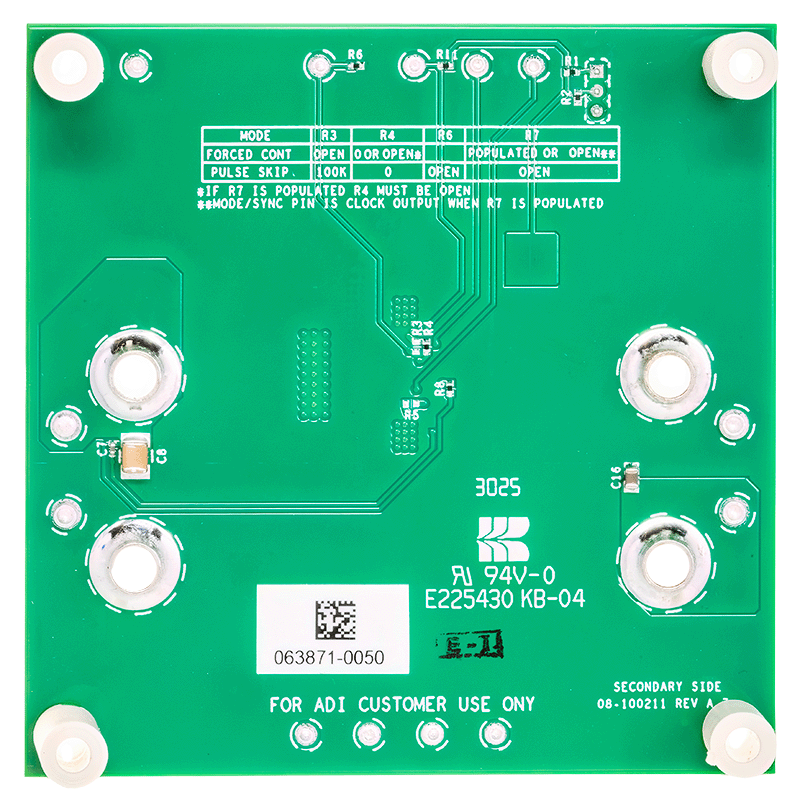

EVAL-RHP50000-CSLZ is set up to run in forced continuous mode with a 2MHz switching frequency but can be configured to pulse skip mode or different switching frequencies. RT is connected to V_IN which sets the MODE/SYNC pin as an input and allows the RHP50000-CSL to sync from an external clock. Connecting the MODE/SYNC pin to VIN sets the mode to pulse skip mode and connecting the MODE/SYNC pin to GND sets the mode to forced continuous mode.

The RHP50000-CSL data sheet gives a complete description of the part, operation, and application information. The data sheet must be read in conjunction with this evaluation board. The RHP50000-CSL is assembled in a 3mm × 3mm LQFN package with exposed pads for low thermal resistance. The layout recommendations for low EMI operation and maximum thermal performance are available in the data sheet.

EVAL-RHP50000-CSLZ is intended only for electrical evaluation purposes. Design files and ordering information for this circuit board are available at www.analog.com.
