RH6200M

PRODUCTION

Low Noise, High Speed Rail-to-Rail Op Amp

Data Sheet (Rev. D) Product Selection Table

Part Models: 4
1ku List Price: Starting From $246.01

Viewing:

Overview

Low Noise Voltage: 0.95nV/√Hz (100kHz)
Gain Bandwidth Product: 165MHz A_V = 1
Input Common Mode Range Includes Both Rails
Output Swings Rail-to-Rail

Low Offset Voltage: 0.6mV Typ
Wide Supply Range: 4.5V to 12.6V
Output Current: 60mA Min
Operating Temperature Range –55°C to 125°C
Power Shutdown, Thermal Shutdown

The RH6200 is an ultralow noise, rail-to-rail input and output unity-gain stable op amp that features 0.95nV/√Hz noise voltage. This amplifier combines very low noise with a 165MHz gain bandwidth, 50V/μs slew rate and is optimized for low voltage signal conditioning systems. A shutdown pin reduces supply current during standby conditions and thermal shutdown protects the part from overload conditions. The RH6200 maintains its preirradiation performance for supplies from 4.5V to 12.6V and is specified pre- and post-radiation at 5V and ±5V.

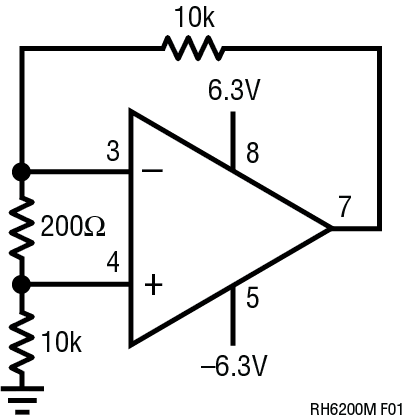

Applications

Transimpedance Amplifiers
Low Noise Signal Processing
Active Filters
Rail-to-Rail Buffer Amplifiers
Driving A/D Converters

Part Models: 4
1ku List Price: Starting From $246.01

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH6200MDICE	DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH6200MDICE-ES	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

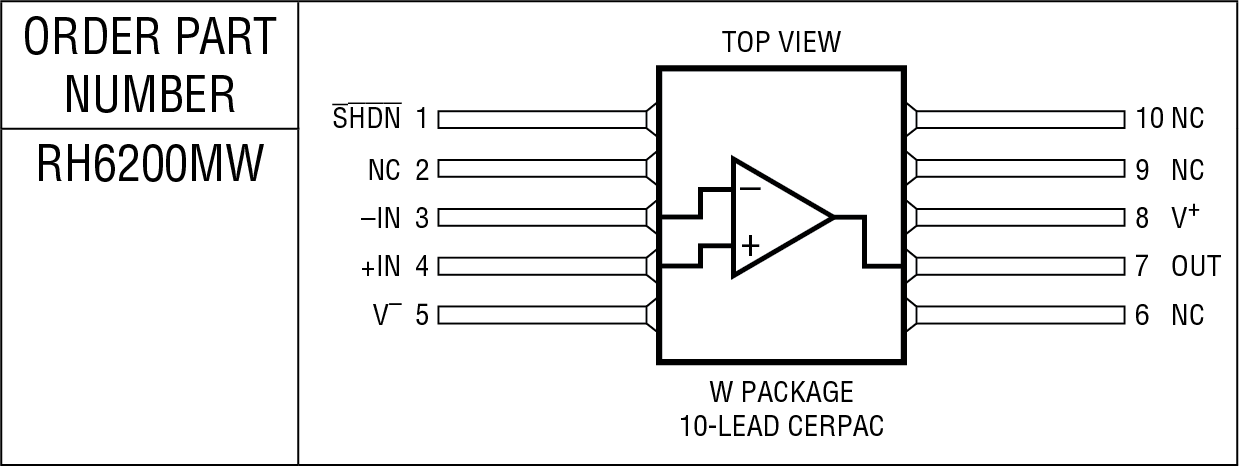

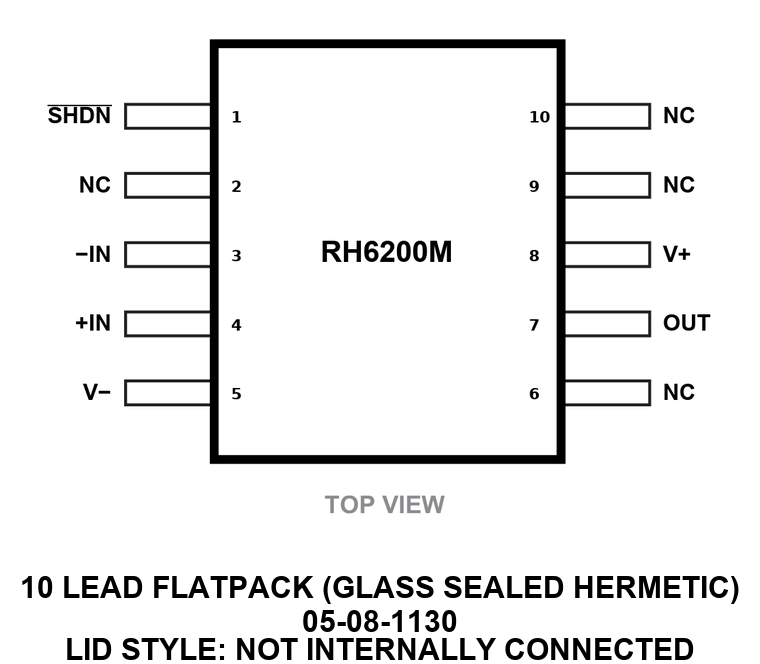

RH6200MW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH6200MW-EMX	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH6200MW	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH6200MW	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH6200MW	PRODUCTION
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
RH6200MW	PRODUCTION
Dec 19, 2025 - 25_0094 Obsolescence of Select Aerospace Products
		PDN25_0094_Form Material_Report
RH6200MDICE	PRODUCTION	PDN25_0094_Form Material_Report
