RH27C

PRODUCTION

Precision Operational Amplifier

Data Sheet (Rev. G) Product Selection Table

Part Models: 5
1ku List Price: Starting From $287.50

Viewing:

Overview

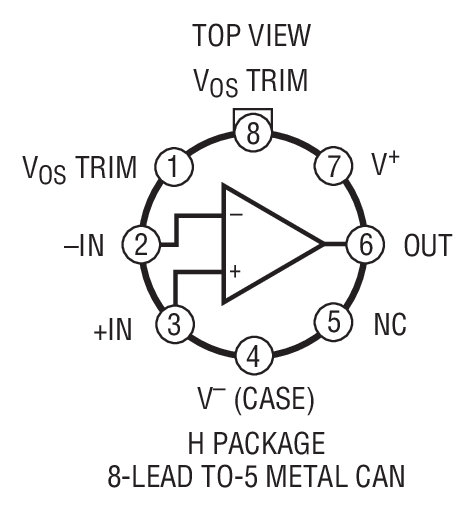

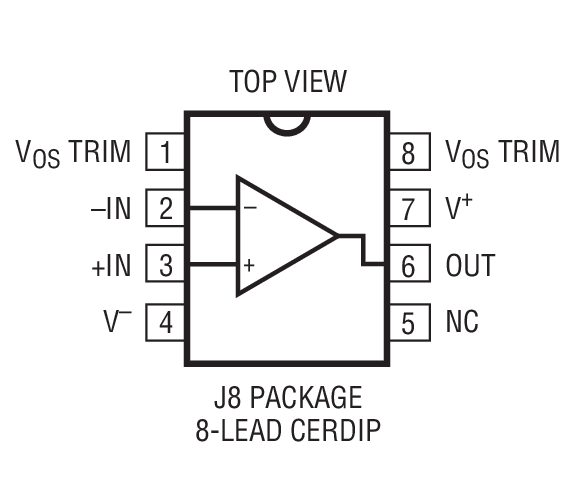

Absolute Maximum Ratings

Supply Voltage: ±22V
Internal Power Dissipation:
500mW
Input Voltage Equal to Supply Voltage
Output Short-Circuit Duration Indefinite

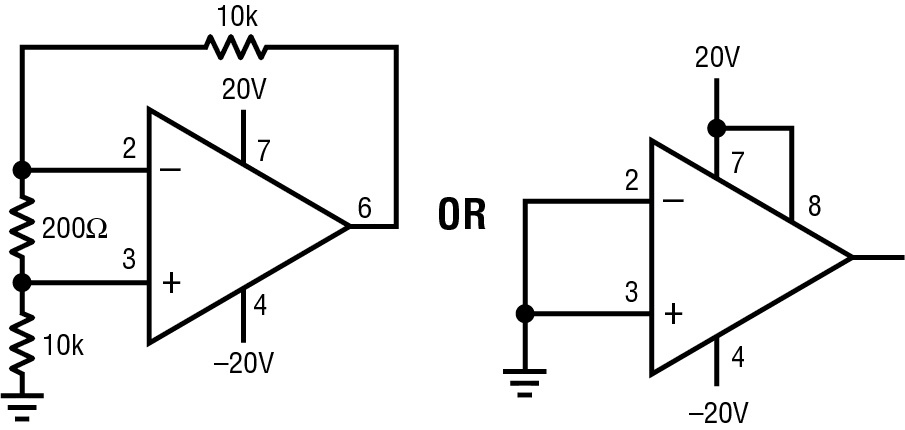

Differential Input Voltage (Note 8):
±25mA

Operating Temperature Range: –55°C to 125°C
Junction Temperature Range: –55°C to 150°C
Storage Temperature Range: –65°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

Part Models: 5
1ku List Price: Starting From $287.50

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

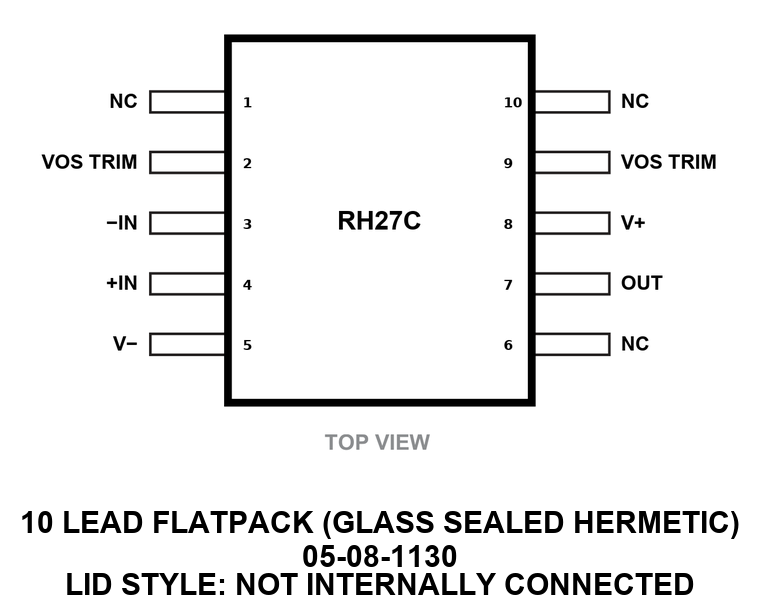

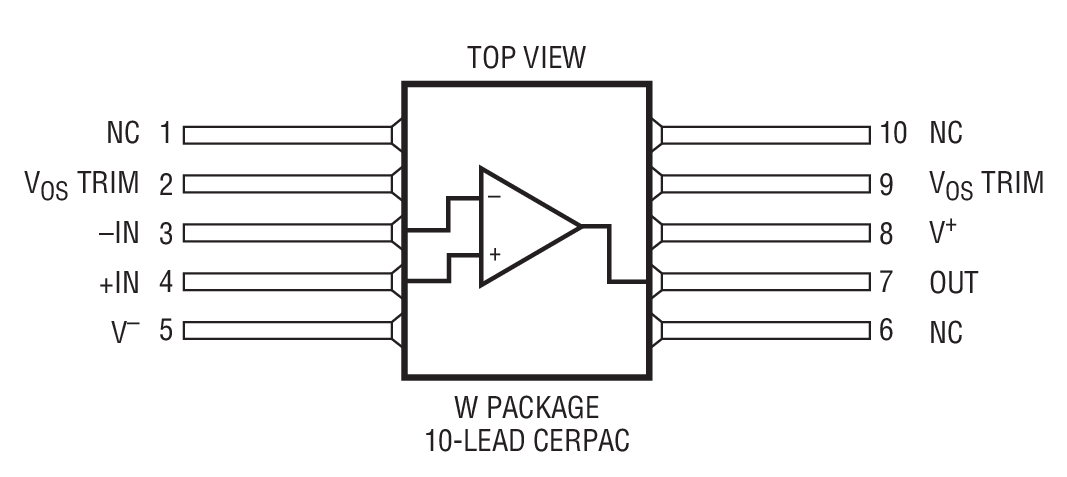

RH27AEW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RH27CDICE	DIE	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RH27CW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RH27CW-EMX	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
RH27EW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH27AEW	PRODUCTION
RH27CW	PRODUCTION
RH27EW	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH27AEW	PRODUCTION
RH27CDICE	PRODUCTION
RH27CW	PRODUCTION
RH27EW	PRODUCTION
Oct 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales.
		PCN20_0294_Form Material_Report Qualification Results Summary
RH27CDICE	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH27CDICE	PRODUCTION
RH27CW	PRODUCTION
RH27EW	PRODUCTION
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
RH27CW	PRODUCTION
