RH1814M

PRODUCTION

Quad 3mA, 100MHz, 750V/µs Operational Amplifier

Data Sheet (Rev. E) Product Selection Table

Part Models: 3
1ku List Price: Starting From $239.85

Viewing:

Overview

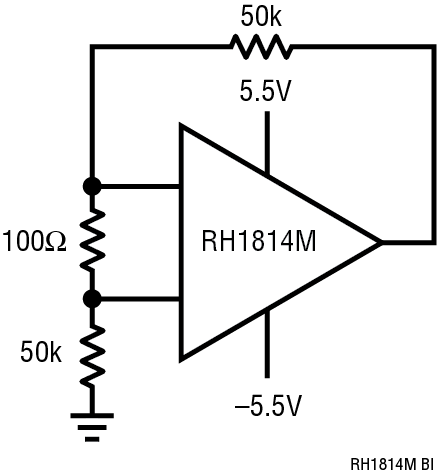

Absolute Maximum Ratings

Supply Voltage: 12.6V
Differential Input Voltage (Note 2): ±6V
Input Voltage: ±VS
Output Short-Circuit Duration (Note 3): Indefinite
Operating Temperature Range: –55°C to 125°C
Storage Temperature Range: –65°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

The RH1814 is a quad, low power, high speed, very high slew rate operational amplifier with excellent DC performance, reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier.

The output drives a 100Ω load to ±3.35V with ±5V supplies. On a single 5V supply, the output swings from 1.1V to 3.7V with a 100Ω load connected to 2.5V. The amplifiers are stable with a 1000pF capacitive load making them useful in buffer and cable driver applications.

The RH1814 is manufactured on Linear Technology’s advanced low voltage complementary bipolar process.

Part Models: 3
1ku List Price: Starting From $239.85

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH1814DICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

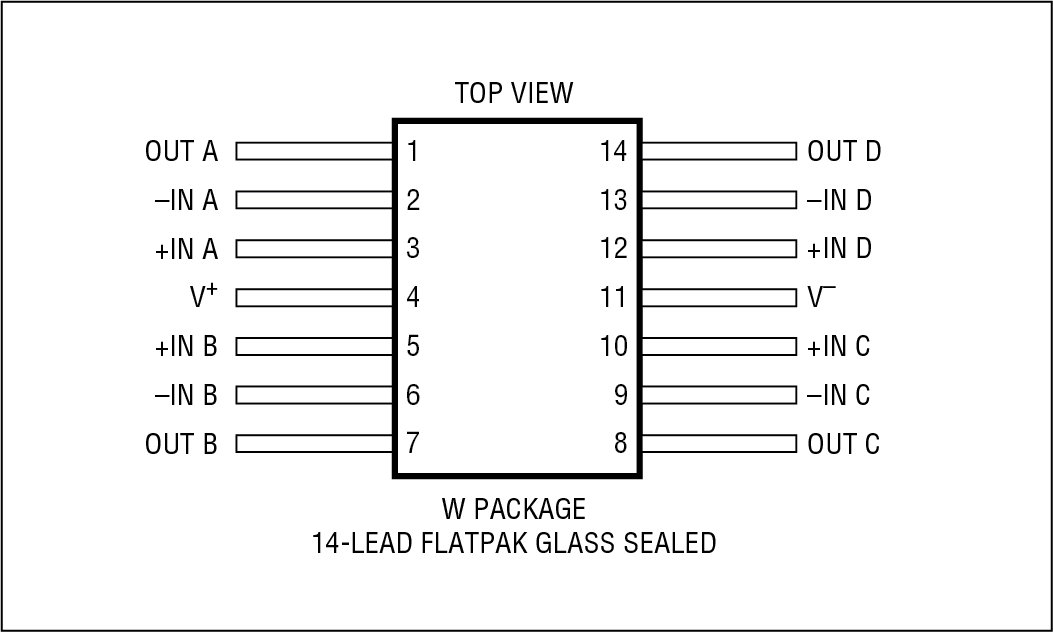

RH1814MW	14-Lead Flatpak (Metal Sealed Bottom Braised Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH1814MW-EMX	CER. FLATPACK WITH LEADS	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
		PCN20_0325_Form Material_Report Qualification Results Summary
RH1814DICE	PRODUCTION
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH1814MW	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH1814MW	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH1814MW	PRODUCTION
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
RH1814MW	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

RH1814

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
