RH108A

PRODUCTION

Operational Amplifier

Data Sheet (Rev. F) Product Selection Table

Part Models: 3
1ku List Price: Starting From $307.09

Viewing:

Overview

Absolute Maximum Ratings

Supply Voltage: ±20V
Differential Input Current (Note 1): ±10mA
Input Voltage (Note 2): ±15V
Output Short-Circuit Duration:
Indefinite

Operating Temperature Range: –55°C to 125°C
Storage Temperature Range: –65°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

The RH108A is a precision operational amplifier particularly well-suited for high source impedance applications requiring low offset and bias currents and low power consumption.

The wafer lots are processed to our in-house Class S flow to yield circuits usable in stringent-military applications.

For complete electrical specifications, performance curves and applications information, see the LM108A/LM108 data sheet.

Part Models: 3
1ku List Price: Starting From $307.09

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH108ADICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

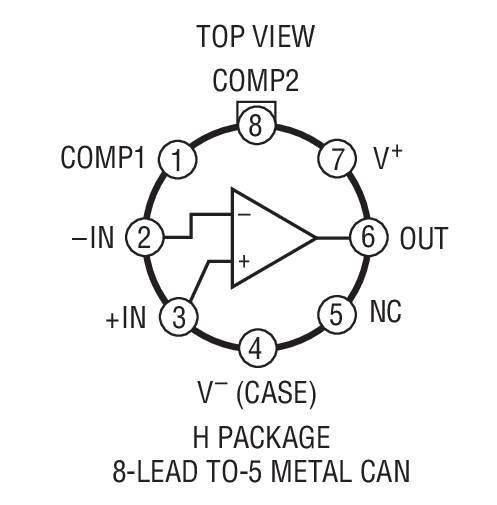

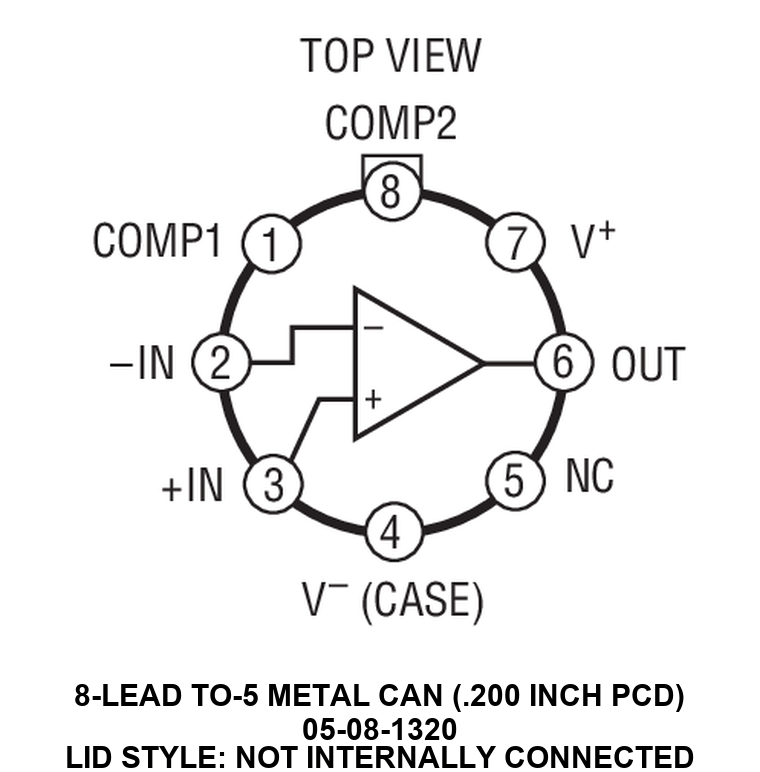

RH108AH	8-Lead TO-5 (0.2 Inch PCD)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH108AW	14-Lead Flatpak (Metal Sealed Bottom Braised Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales.
		PCN20_0294_Form Material_Report Qualification Results Summary
RH108ADICE	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH108ADICE	PRODUCTION
RH108AW	PRODUCTION
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH108AH	PRODUCTION
RH108AW	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH108AH	PRODUCTION
RH108AW	PRODUCTION
Oct 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
		PCN20_0325_Form Material_Report Qualification Results Summary
RH108AH	PRODUCTION
Jul 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
		PCN19_0111_Form Material_Report Detailed Parts List Qualification Results Summary
RH108AH	PRODUCTION
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
RH108AW	PRODUCTION
