RH1078M

PRODUCTION

Micropower, Dual, Single Supply Precision Op Amp

Data Sheet (Rev. J) Product Selection Table

Part Models: 4
1ku List Price: Starting From $256.06

Viewing:

Overview

Absolute Maximum Ratings

Supply Voltage: ±22V
Differential Input Voltage:
±30V
Input Voltage:

Equal to Positive Supply Voltage
0.5V Below Negative Supply Voltage

Output Short-Circuit Duration: Indefinite
Operating Temperature Range: –55°C to 125°C
Storage Temperature Range: –55°C to 150°C
Lead Temperature (Soldering, 10 sec): 300°C

The RH1078M is a micropower dual op amp in the standard 8-pin configuration. This device is optimized for single supply operation at 5V. Specifications for ±15V are also provided.

The wafer lots are processed to LTC’s in-house Class S flow to yield circuits usable in stringent military applications.

Part Models: 4
1ku List Price: Starting From $256.06

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
RH1078MDICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

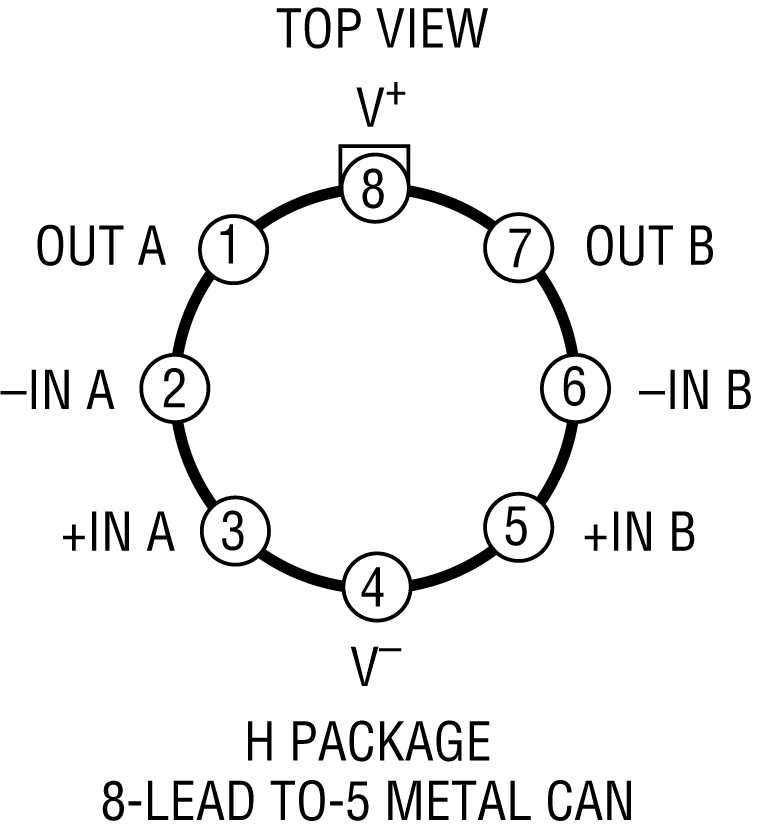

RH1078MH	8-Lead TO-5 (0.2 Inch PCD)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH1078MW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH1078MW-EMX	CERPAK(HERM CER SRF MOUNT)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales.
		PCN20_0294_Form Material_Report Qualification Results Summary
RH1078MDICE	PRODUCTION
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
RH1078MDICE	PRODUCTION
RH1078MW	PRODUCTION
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH1078MH	PRODUCTION
RH1078MW	PRODUCTION
Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
RH1078MH	PRODUCTION
RH1078MW	PRODUCTION
Oct 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
		PCN20_0325_Form Material_Report Qualification Results Summary
RH1078MH	PRODUCTION
Jul 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
		PCN19_0111_Form Material_Report Detailed Parts List Qualification Results Summary
RH1078MH	PRODUCTION
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
RH1078MW	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
