RH1013M

PRODUCTION

Dual Precision Operational Amplifier

Data Sheet (Rev. I) Product Selection Table

Part Models: 6
1ku List Price: Starting From $213.92

Viewing:

Overview

MIL-PRF-38535 Class V Compliant Version – 5962R88760
Guaranteed Performance Over –55 to +125°C
- Input Offset Voltage: 550µV
- Low Offset Voltage Drift: 2.5µV/°C
- Low Offset Current: 20nA
Gain Bandwidth Product: 500kHz
Minimum Slew Rate: 0.2V/mS
Low Current Noise: Typically 0.07pA/√Hz
Maximum Supply Current: 0.7mA per Amplifier
Supply Voltage ±22V (Absolute Maximum)
Differential Input Voltage ±30V (Absolute Maximum)
Single Supply Operation
Available in CERPAC, Ceramic DIP, Metal Can or as Unpackaged Dice

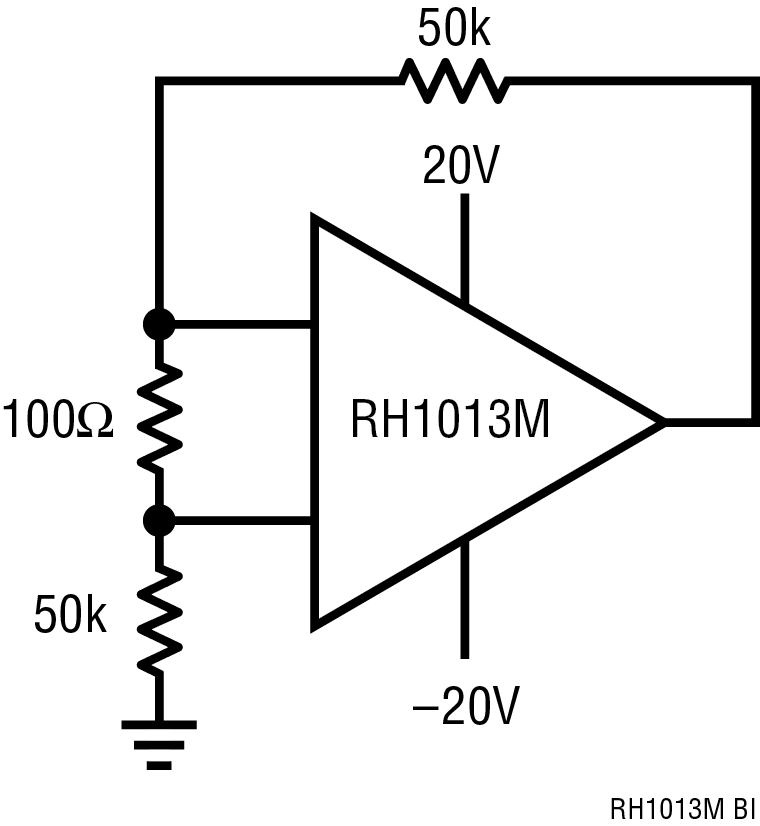

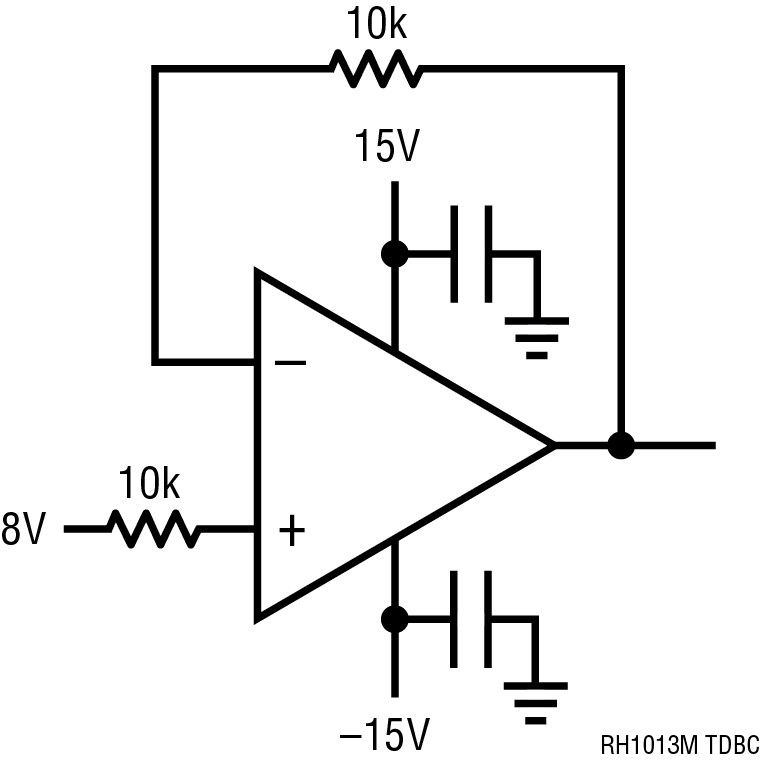

Radiation Performance

Total Ionizing Dose (TID) Tolerance, per TM1019.8, MIL-STD-883:
- 200kRad (Si), per condition A at 50Rads(Si)/sec
- 50kRad (Si), per condition D at 10mRads(Si)/sec
- ELDRS Pass 50kRad(Si)
Please Also Refer to RH1014 Web Page for Radiation Reports

The RH1013M is the first precision dual operational amplifier which directly upgrades designs in the industry standard 8-pin DIP LM158/MC1558/OP-221 pin configuration. Low offset voltage (300µV max), low drift (≤2.5µV/°C), low offset current (≤1.5nA), and high gain (1.2 million min) combine to make the RH1013M two truly precision amplifiers in one package.

The wafer lots are processed to Analog Devices’ in-house Class S flow to yield circuits usable in stringent military applications.

Applications

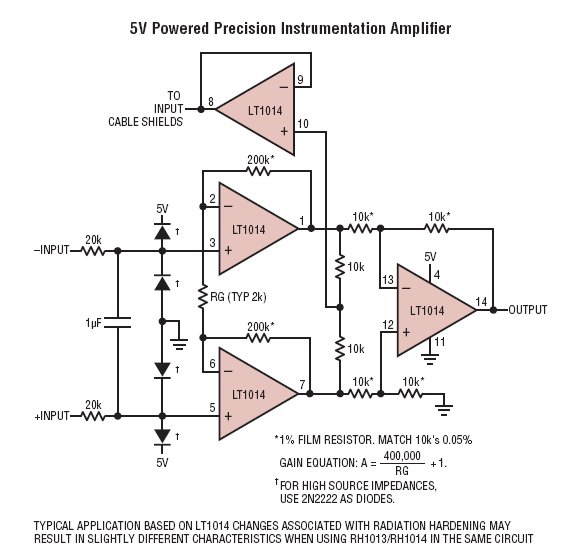

Precision Instrumentation Amplifiers
Strain Gauge Signal Conditioners
Thermocouple Amplifiers
4mA to 20mA Current Loop Transmitters
Multiple Limit Threshold Detection
Active Filters
Multiple Gain Blocks

Part Models: 6
1ku List Price: Starting From $213.92

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
5962R8876003V9A	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

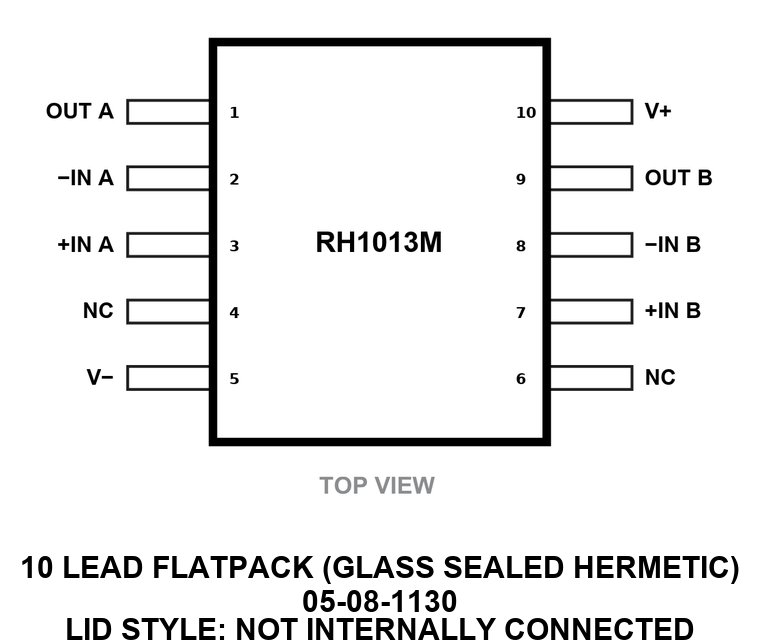

5962R8876003VHA	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH1013DICE	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

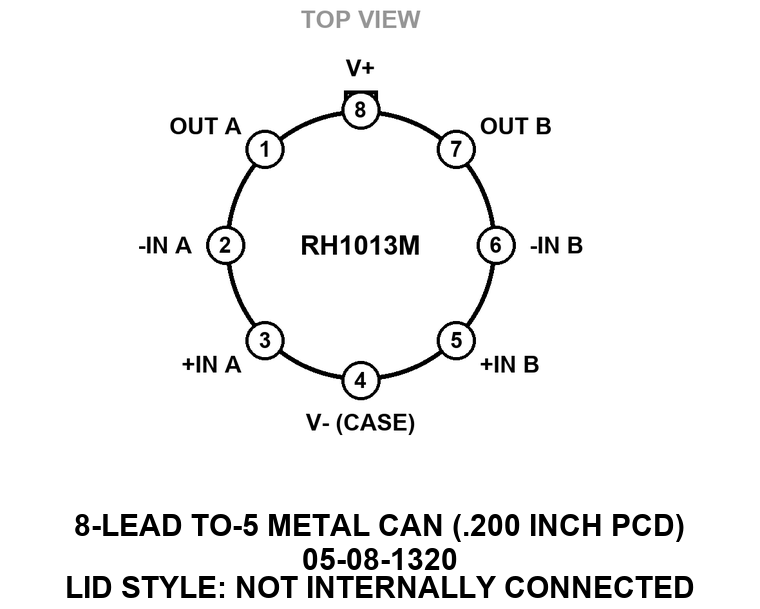

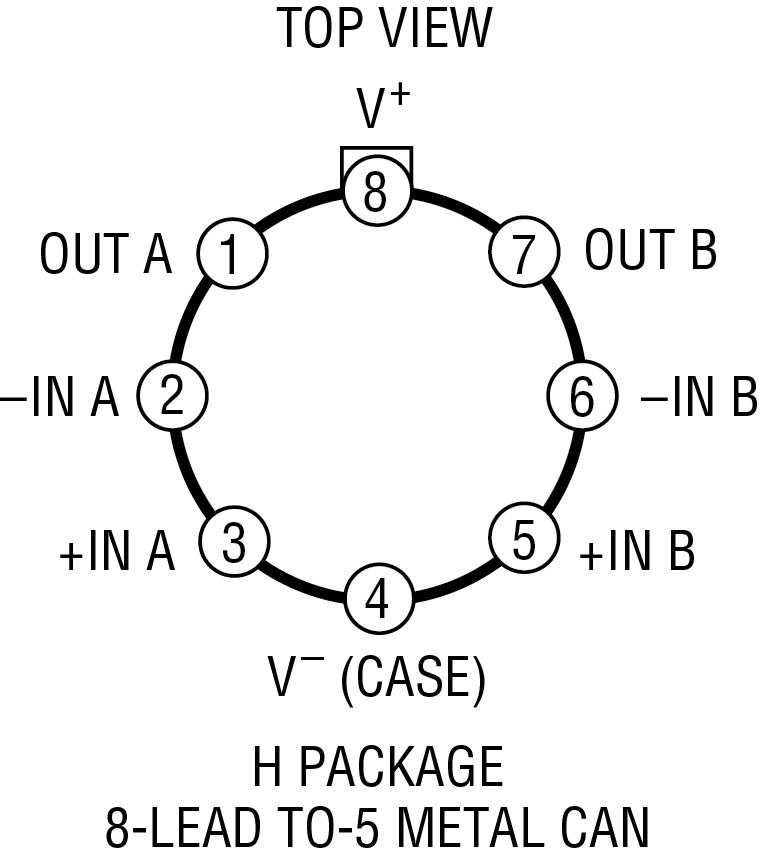

RH1013MH	8-Lead TO-5 (0.2 Inch PCD)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

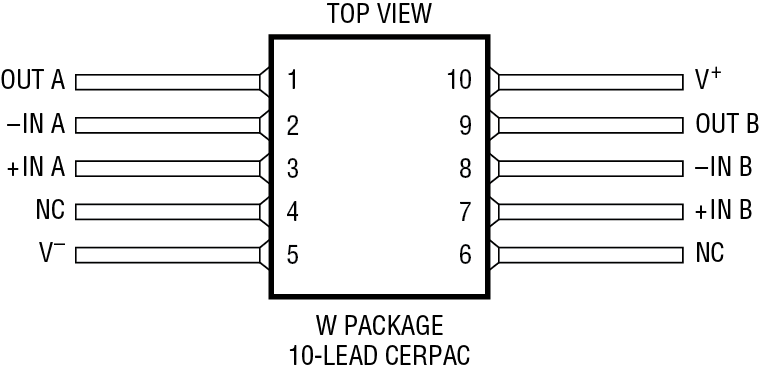

RH1013MW	10-Lead Flatpak (Glass Sealed Hermetic)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
RH1013MW-EMX	CERPAK(HERM CER SRF MOUNT)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 30, 2022 - 22_0196 Test Site Transfer of RH, SMD, Class-S, Special Flow, MIL-STD-883 Products from Analog Devices Milpitas to ADGT
		PCN22_0196_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Test Correlation Report Test Correlation Report Test Correlation Report Other
5962R8876003V9A	PRODUCTION
5962R8876003VHA	PRODUCTION
RH1013MH	PRODUCTION
RH1013MW
Oct 5, 2020 - 20_0294 Golden Altos as an Alternate Assembly Plant for Radiation Hardened/ Military Products in TO39 and dies sales.
		PCN20_0294_Form Material_Report Qualification Results Summary
5962R8876003V9A	PRODUCTION
RH1013DICE
Sep 17, 2020 - 20_0296 ADI Philippines as an Alternate Assembly Plant for Radiation Hardened Products in Cerpak and Die Sales.
		PCN20_0296_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary
5962R8876003V9A	PRODUCTION
5962R8876003VHA	PRODUCTION
RH1013DICE
RH1013MW
Dec 10, 2019 - 19_0305 Laser Top Mark for Ceramic Cerpak Packages Assembled in ADI Hillview
		PCN19_0305_Form Material_Report Detailed Parts List Qualification Results Summary
5962R8876003VHA	PRODUCTION
RH1013MW
May 7, 2024 - 24_0027 Datasheet Update of Electrical Test Requirements for Legacy Space LTC (RH Products)
		PCN24_0027_Form Material_Report Datasheet Specification Comparison
RH1013MH	PRODUCTION
RH1013MW
Oct 30, 2020 - 20_0325 ADI Philippines as an assembly plant to replace ADI Hillview for Radiation Hardened products in TO5 packages and die sales.
		PCN20_0325_Form Material_Report Qualification Results Summary
RH1013MH	PRODUCTION
Jul 9, 2019 - 19_0111 Laser Top Mark for TO Metal Can Packages assembled in ADI Hillview
		PCN19_0111_Form Material_Report Detailed Parts List Qualification Results Summary
RH1013MH	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
