Overview

Features and Benefits

  • High Slew Rate: 10 V/µs Min
  • Fast Settling Time: 0.9 µs to 0.1% Type
  • Low Input Offset Voltage Drift: 10 µV/°C Max
  • Wide Bandwidth: 3.5 MHz Min
  • Temperature-Compensated Input Bias Currents
  • Bias Current Specified Warmed Up over Temperature
  • Low Input Noise Current: 0.01 pA/√Hz Type
  • High Common-Mode Rejection Ratio 86 dB Min

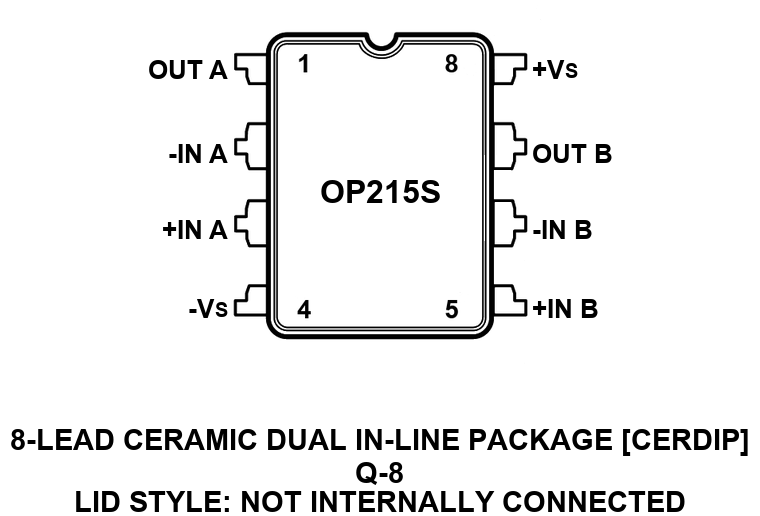

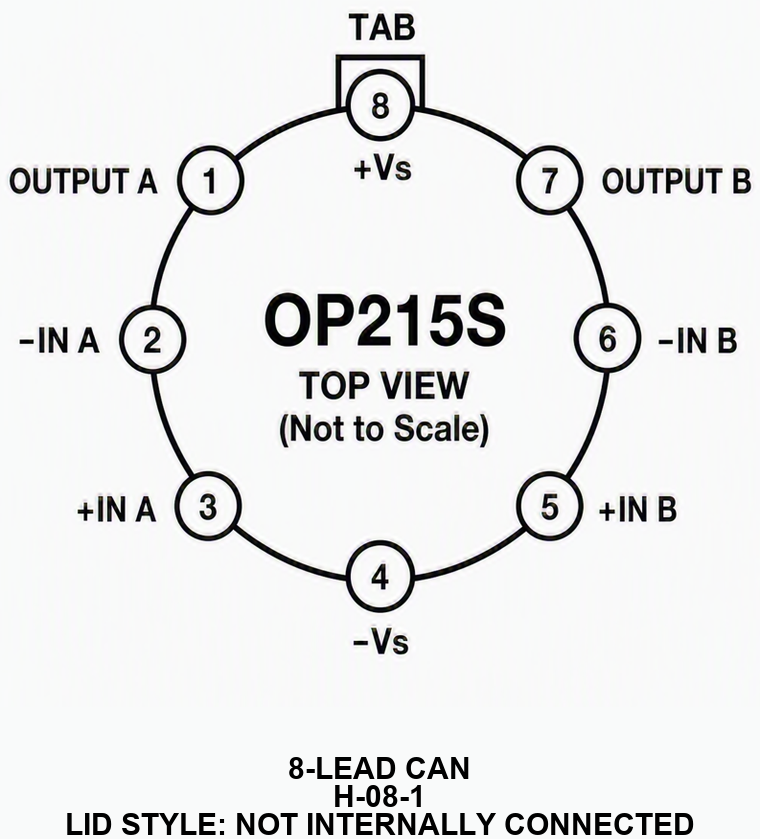

Product Details

The OP215 offers the proven JFET-input performance advantages of high speed and low input bias current with the tracking and convenience advantages of a dual op amp configuration.

Low input offset voltages, low input currents, and low drift are featured in these high-speed amplifiers.

On-chip zener-zap trimming is used to achieve low VOS, while a bias-current compensation scheme gives a low input bias current at elevated temperature.
