Features and Benefits

  • Extends Battery Life
    • 300nA Ultra-Low Quiescent Current
    • 0.5nA Shutdown Current
    • 95% Peak Efficiency
    • True Shutdown
      • Output Disconnects from Input
      • Zero Forward/Reverse Current from VIN,VOUT
  • Easy to use–Addresses Popular Operation
    • VIN: 5.5V Down to 0.4V
    • Minimum Startup Voltage of 0.88V
    • Single Resistor-Adjustable VOUT from 1.8V to 5V
    • VOUT Selection Resolution: In 100mV Steps
    • 1A Peak Inductor Current Limit
  • Robust Performance Features Include
    • Internal Current Limit
    • Integrated Soft-Start
    • PFM Control Scheme for Higher Efficiency at Light Load Operation
  • Reduced Size and Increased Reliability
    • 2.1mm x 2.6mm, 10-Lead eMGA Package
    • Operating Temperature Range -40°C to +125°C

Product Details

The MAXM17225 is a nanoPower, ultra-low-IQ (300nA) boost module offered in a tiny eMGA package. The IC is guaranteed to startup with voltages as low as 0.88V and post startup, the input voltage VIN can go down to 0.4V making it ideal for battery-operated devices that undergo voltage discharge over time. Its ultra-low quiescent current of 300nA prolongs battery life and extends product lifetime as well. The IC accepts input voltage from 0.4V to 5.5V and boosts it up to programmable output voltages from 1.8V to 5V. The output voltage is set using a single external resistor (RSEL). The product has a maximum efficiency of 95%. The module is well suited for a host of applications like battery-operated devices, portable electronics where step-up conversion is needed in space constrained enclosures while demanding high efficiency. A true shutdown disconnects the input from the output, conserving battery life. The IC has an integrated 1µH inductor chosen for optimized operation, stability, and efficiency. Guaranteed Boost VOUT regulation for 250mV separation between input and output voltages while driving heavy loads. A single external selectable resistor (RSEL) for VOUT setting reduces quiescent current consumption in comparison with a conventional resistor feedback divider string. The MAXM17225 has a fixed maximum 300ns switch turn-on time and peak inductor current limit of 1A. The IC auto-transitions between the ULPM, LPM, and HP operating modes based on load current, enabling better system transient response and efficiency. All these powerful features are packed in a tiny 10-lead eMGA package offering the end designer an efficient tool to design products.


  • Bluetooth® LE Devices
  • Health Monitoring and Fitness Devices
  • Portable Point-Of-Sale (POS) Terminals
  • Single or Dual Cell Alkaline Battery Products
  • Supercapacitor Backup for RTC/Alarm Buzzers
  • Ultra-Low-Power IoT Modules
  • USB On-The-Go Adapter Modules, USB Charging
  • Wearables

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

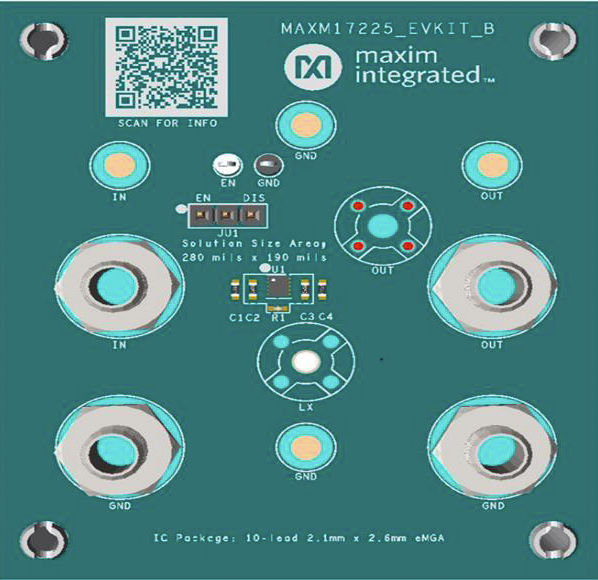

Evaluation Kits (2)

Tools & Simulations

EE-Sim® Power Tools

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.


Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAXM17225AMB+ Material Declaration Reliability Data 10-CSP_BGA_EM-2.1X2.6X1.3
MAXM17225AMB+T Material Declaration Reliability Data 10-CSP_BGA_EM-2.1X2.6X1.3
