Data Sheet Rev. 0
1 View All

Overview

Features and Benefits

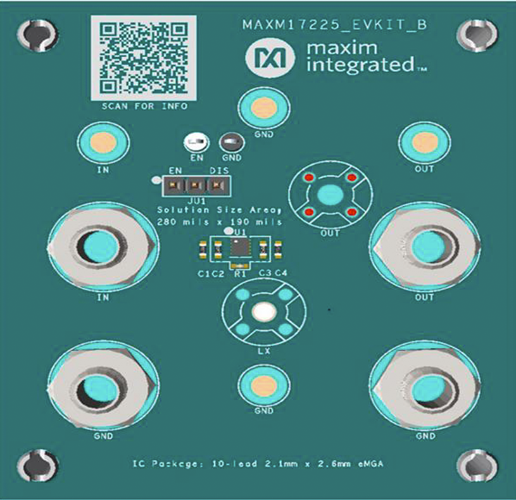

  • EV Kit Board Evaluates MAXM17225AMB+T
    • 10 lead - 2.1mm x 2.6mm- only package variant.
  • 0.4V to 5.5V Input Range, VIN MIN Startup: 0.88V.
  • 1.8V to 5V Resistor Selectable Output Voltage.
  • 1A Peak Inductor Current Limit.
  • Proven 2-Layer 1-oz Copper PCB Layout.
  • Demonstrates Compact Solution Size.
  • Fully Assembled and Tested

Product Details

The MAXM17225 is a nanoPower, 300nA Quiescent current, synchronous step-up DC-DC converter module available in the eMGA package. This datasheet provides an overview of how to use the MAXM17225 EV kit (EV kit) with detailed procedure and circuit connections to test the Boost modules’ functionality.

The EV kit ships with boost module MAXM17225AMB+T placed in-circuit. The product is RoHS compliant.

Applications

  • Bluetooth® LE Devices
  • Health Monitoring and Fitness Devices
  • Portable Point-Of-Sale (POS) Terminals
  • Single or Dual Cell Alkaline Battery Products
  • Supercapacitor Backup for RTC/Alarm Buzzers
  • Ultra-Low-Power IoT Modules
  • USB On-The-Go Adapter Modules, USB Charging
  • Wearables
