MAX98303
Stereo 3.1W Class D Amplifier
Show More
Big 3.1W/Channel Power in a Small, 16-Bump 0.4mm WLP
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Low Quiescent Current: 2.0mA at 3.7V, 2.7mA at 5V
- Spread Spectrum and Active Emissions Limiting
- Five Pin-Selectable Gains
- Click-and-Pop Suppression
- Thermal and Overcurrent Protection
- Low-Current Shutdown Mode
- Space-Saving, 1.68mm x 1.68mm x 0.64mm, 16-Bump WLP (0.4mm Pitch)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

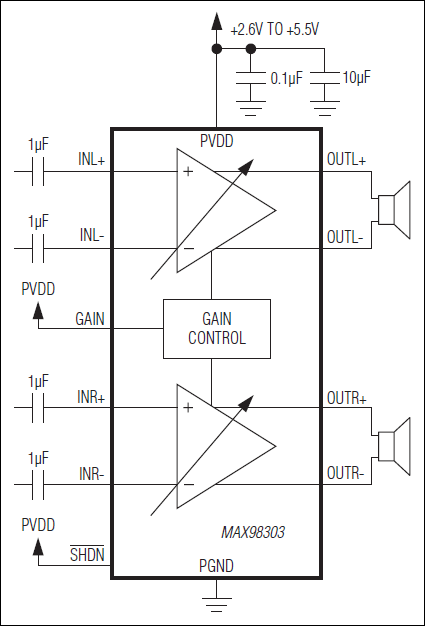

The MAX98303 stereo 3.1W Class D amplifier provides Class AB audio performance with Class D efficiency. This device offers five selectable gain settings (6dB, 9dB, 12dB, 15dB, and 18dB) set by a single gain-select input (GAIN).
Active emissions limiting, edge-rate, and overshoot control circuitry greatly reduces EMI. A filterless spread-spectrum modulation scheme eliminates the need for output filtering found in traditional Class D devices. These features reduce application component count.
The IC's 2.0mA at 3.7V, 2.7mA at 5V, quiescent current extends battery life in portable applications.
The IC is available in a 16-bump WLP (1.68mm x 1.68mm x 0.64mm) package specified over the extended -40°C to +85°C temperature range.
Applications
- Cellular Phones
- MP3 Players
- Notebook and Netbook Computers
- Portable Audio Players
- Tablets
- VoIP Phones
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX98303
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
Data Sheet
-
All
-
English
-
Chinese
Data Sheet
2
Reliability Data
1
24.88K
Documentation
Data Sheet 1
Reliability Data 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX98303EWE+ |
N/A
|
|
|
| MAX98303EWE+T |
N/A
|
|
- MAX98303EWE+
- Pin/Package Drawing
-
N/A
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- MAX98303EWE+T
- Pin/Package Drawing
-
N/A
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 21, 2016
- 1671A
ASSEMBLY
MAX98303EWE+T
PRODUCTION
Jul 19, 2016
- 1594_AMENDED
ASSEMBLY
MAX98303EWE+T
PRODUCTION
Dec 8, 2015
- 1594_PRE-PCN
WAFER FAB
MAX98303EWE+T
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Dec 21, 2016
- 1671A
ASSEMBLY
Jul 19, 2016
- 1594_AMENDED
ASSEMBLY
Dec 8, 2015
- 1594_PRE-PCN
WAFER FAB
Software & Part Ecosystem
Evaluation Kits 1
MAX98303EVKIT
Evaluation Kit for the MAX98303
Product Detail
The MAX98303 evaluation kit (EV kit) is a fully assembled and tested PCB that evaluates the MAX98303 stereo 3.1W Class D amplifier in a 16-bump, 0.4mm pitch wafer-level package (WLP). The EV kit operates from a single 2.6V to 5.5V DC power supply and is capable of delivering 3.1W into a 4Ω load. The EV kit accepts a differential or single-ended audio input and provides differential outputs for the speaker. The device outputs can be connected directly to a speaker load for filterless applications; however, a filter can be added to ease evaluation.
Applications
- Cellular Phones
- MP3 Players
- Notebook and Netbook Computers
- Portable Audio Players
- Tablets
- VoIP Phones
